Home > products > Construction Tower Crane >

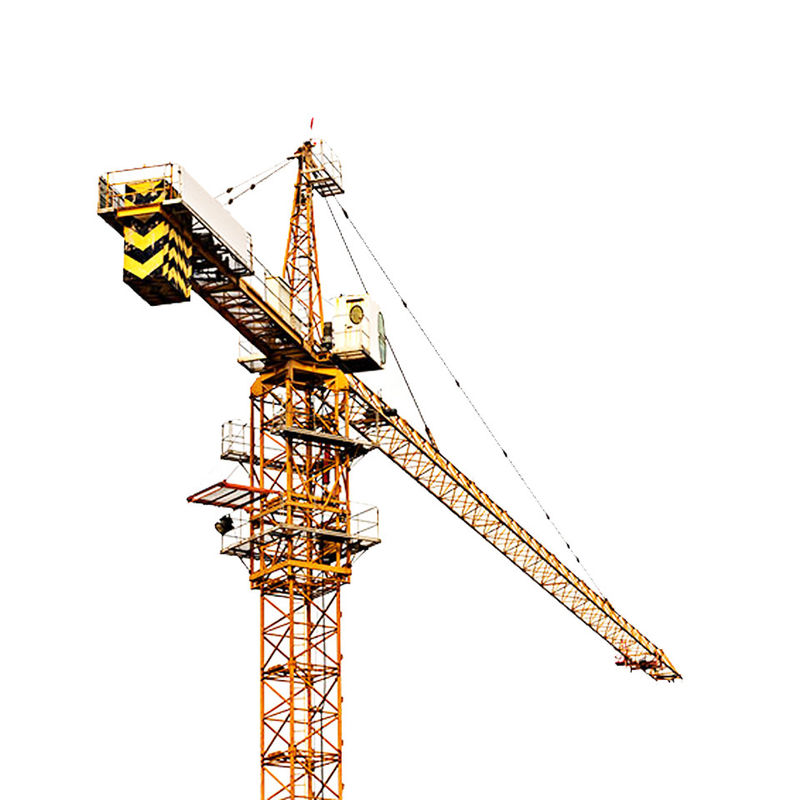

30 Ton Flat Top Tower Crane for Construction Works Zoomlion T7015-10E WA7025-10E 70m

30 Ton Flat Top Tower Crane

70m Flat Top Tower Crane

Construction Works Flat Top Tower Crane

Place of Origin:

Henan, China

Brand Name:

zoomlion

Request A Quote

Product Details

Feature:

Tower Crane

Applicable Industries:

Construction Works

Showroom Location:

Morocco, Colombia, Kazakhstan, Bangladesh, Uzbekistan, Pakistan

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

New Product

Warranty Of Core Components:

1 Year

Core Components:

Engine, Gear

Condition:

New

Application:

Construction

Rated Loading Capacity:

250 Kg, 6 TON, 350 KG, 25 Ton, 30 Ton, 8 Ton, 35 Ton, 4.5 Ton, 5 Ton, 9 Ton, 20 Ton, Other, 10ton

Rated Lifting Moment:

1600 T.m

Max. Lifting Height:

25M, 7.5m, 5M, 10M, 15M, 6m, Other, 60m

Span:

Warranty:

1 Year

Weight (KG):

53000 Kg

Product Name:

Erect Tower Crane

Color:

Customer's Requements

Highlight:

30 Ton Flat Top Tower Crane

70m Flat Top Tower Crane

Construction Works Flat Top Tower Crane

Payment & Shipping Terms

Price

$30,000.00/units >=1 units

Zoomlion Tower Crane With 60M Boom 6 Tons Capacity In Vietnam 220m Span

Get Best Price

Energy Mining Syt80 T6012-6 6 Ton 8 Ton Flat-Top Tower Crane With Long Working Radius

Get Best Price

Sany S46 Meters Mixing Integrated Pump Prodmotor 12M Hand Surplus Pump Ton Hoist Crane

Get Best Price

Construction Machine Tower Crane 8ton 12ton 25ton With 2500KN Rated Lifting Moment

Get Best Price

Contact Now

Product Description

Specification

Tower Crane Working Grade			A4
Mechanisms Working Grade			Hoisting			M4
				Slewing			M5
							M4
Rated Hoisting Moment (kN.m)			3110
Max Hoisting Height (m)			Stationary			51.3
Max Hoisting Height (m)				Anchorages			240.3
Working Radius (m)			Min Radius			3.75
Working Radius (m)				Max Radius			75
Max Hoisting Capacity (t)			16
Hoisting Mechanism	Falls	2			4
		Lifting Capacity/ Speed (t/m/min)	4/75	8/37.5	8/37.5	16/18.75
		Power (kW)	60
Trolley Mechanism	Speed (m/min)	0～100
Trolley Mechanism		Power (kW)	11
Slewing Mechanism	Speed（r/min）	0～0.6
Slewing Mechanism		Stall Torque（N.m）	2×145
Climbing Mechanism	Working Pressure (MPa)	31.5
Climbing Mechanism		Speed (m/min)	0.45
Total Power (kW)			86 (excluded Climbing System
Allowable Wind Speed at Top of Crane (m/s)			Climbing					14
				In Service					20
				Out of Service			0～20m	36
								20～100m	42
								100m～	46
Working Temperature (℃)			-20～+40
Power Supply			～380V/50Hz
