CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank

CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank

3 Axle Fuel Tank Semi Trailer

Alloy Tank Fuel Tank Semi Trailer

Place of Origin:

Henan, China

Brand Name:

CIMC LINYU

Chat Now
Chat Now
Product Details
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Aluminum / Alloy
Size:
12300*2550*3950
Max Payload:
>30000 Kg
Model:
CLY9401GRYS1
Wheelbase(mm):
6300+1310+1310
Gross Mass(KG):
40000
Rated Load Mass(KG):
34000/33700
Kerb Mass (KG):
6000/6300
Tank Volume (m³):
50
Tanker Material:
Aluminium Alloy
Transport Medium:
Crude Oil, Petroleum, Fuel Oil, Jet Fuel
Remark:
3-axis Straight Tank, Double Inner Tank To Keep Warm
Highlight:

3 Axle Fuel Tank Semi Trailer

,

Alloy Tank Fuel Tank Semi Trailer

Payment & Shipping Terms
Price
$9,899.10/units 1-4 units
Product Description
Product Description

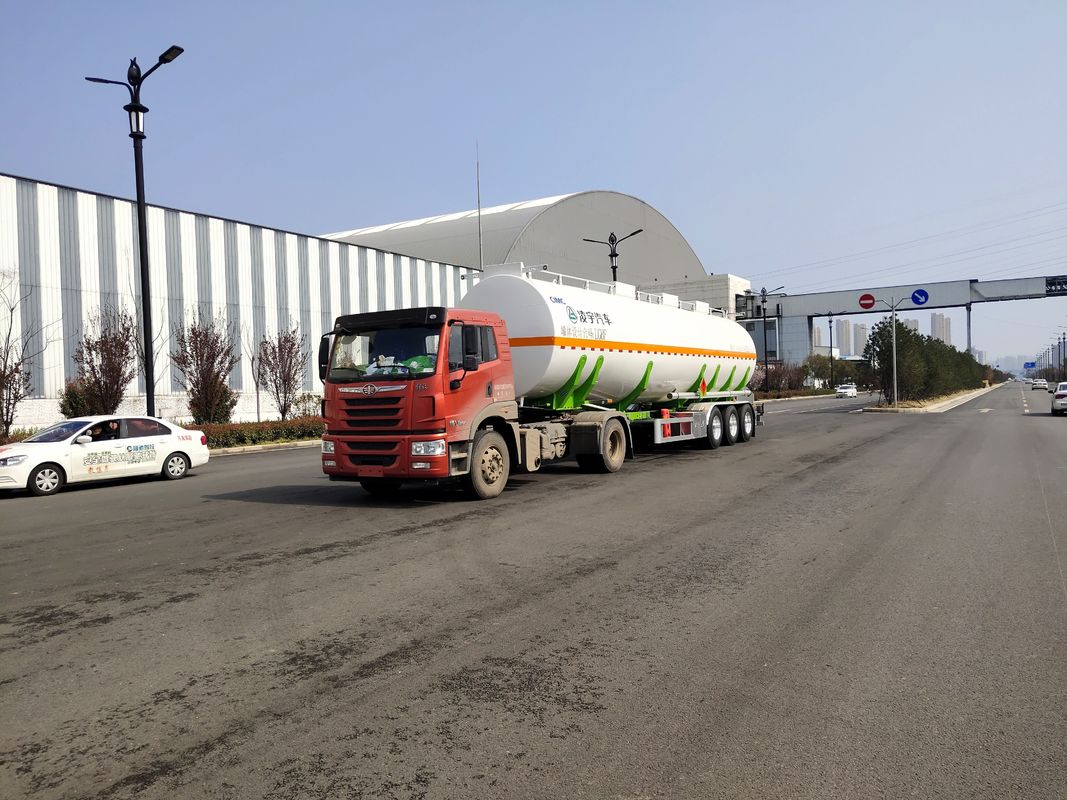

CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 0

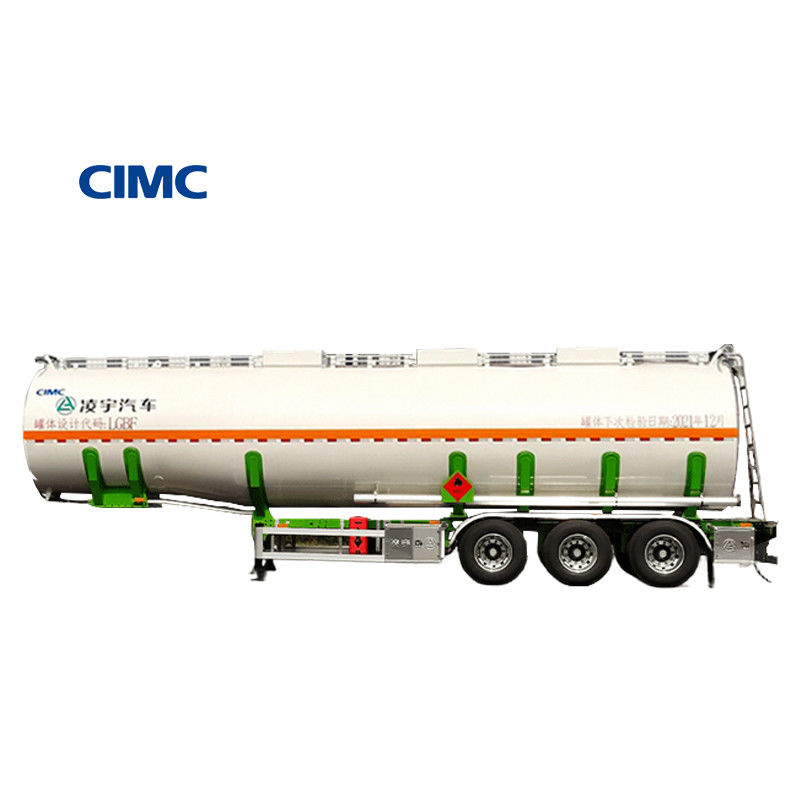

CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 1
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 2
Specification
item
value
Model
CLY9402GRY50
Use
Truck Trailer
Type
Semi-Trailer
Material
Aluminum Alloy
Overall Dimension(L*W*H)
12300*2550*3950
Max Payload
34000/33700 kg
Place of Origin
Henan, China
Brand Name
CIMC LINYU
Wheelbase(mm)
6300+1310+1310
Gross mass(KG)
40000
Kerb mass (KG)
6000/6300
Tank volume (m³)
50
Tanker material
aluminium alloy
Transport medium
Crude oil, Petroleum, Fuel oil, Gasoline, Diesel, Jet Fuel, Kerosene
Remark
3-axis straight tank,Double inner tank to keep warm
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 3

Product overview

Linyu Series liquid tank is a new high standard light weight tankers made of stainless steel,carbon steel and aluminum alloy.
The tank models include oil tanker, chemical liquid carrier, flammable liquid carrier, food carrier. Referred Europe FFB and the United States the HEIL style, and combined with the domestic market demand, the tank was re-designed based on finite element analysis. The main parts of the tank: shell cover and anti-wave plate adopted better anti-resistance folding dish structure.
Depending on the different stress in different parts of the tank, using different thickness steel, we ensure the lightest under the relevant standards and safety.
With unique shape and appearance, Linyu series liquid carrier adopted blast pretreatment process on structure parts. Using special tank tooling fixtures and in conjunction with the automatic protection welder, painting entirely in accordance with the requirements of the luxury passenger bus painting technology standards, the tank body appearance is beautiful same as bus, and the
quality reached industry-leading level. Owned over 20 patents technology, the products conformed to international standards. With the reasonable compatibility, reliable performance, cost-effective, stable quality, the products can meet the differences indemand.
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 4

Liquid transport vehicle (semi) features

Advanced design: Finite element analysis method is used to establish the stress analysis model of all working conditions and lightweight design, so that the strength and stiffness of the tank are optimized under lighter conditions; Anti-shock structure: the dish-shaped anti-wave plate in the tank can effectively scatter the shock wave around, reduce the local stress of the anti-wave plate, and protect the tank. According to the medium and road conditions, the wave plate adopts the dense arrangement method to make the tank body more evenly stressed. Reinforcing ring structure: stainless steel tank external reinforcing structure is unique in China; Full bearing frame, tank to bear most of the load, the vehicle weight is lighter, tank is not easy to deform,
more economical, more safe. Professional production: Domestic advanced 13m automatic TIG welding machine, PLC programmable control technology, a can forming process: reduce weld, high strength, smooth appearance, stable vehicle performance; Patent connection:
The frame and walking mechanism adopt the world's latest generation Huck BobTail fastening system to achieve the highest performance, safe and reliable connection of key parts; Safety and environmental protection: explosion-proof manhole, emergency cut off bottom valve (submarine valve), breathing valve, tank top coiling, sealing harness, oil and gas recovery and a series of safety devices, anti-roll, anti-collision, fire resistance, while improving loading efficiency, safety and environmental protection.
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 5
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 6
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 7
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 8
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 9
CIMC Fuel Tank Crude Palm Oil 3 Axle Cooking Oil Tanker Semi Trailer With Alloy Tank 10
