Home > products > Fuel Tank Semi Trailer >

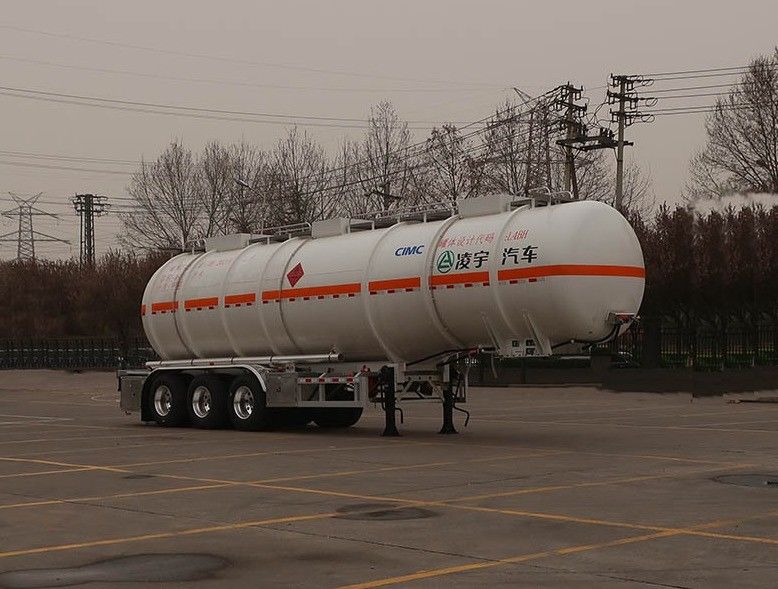

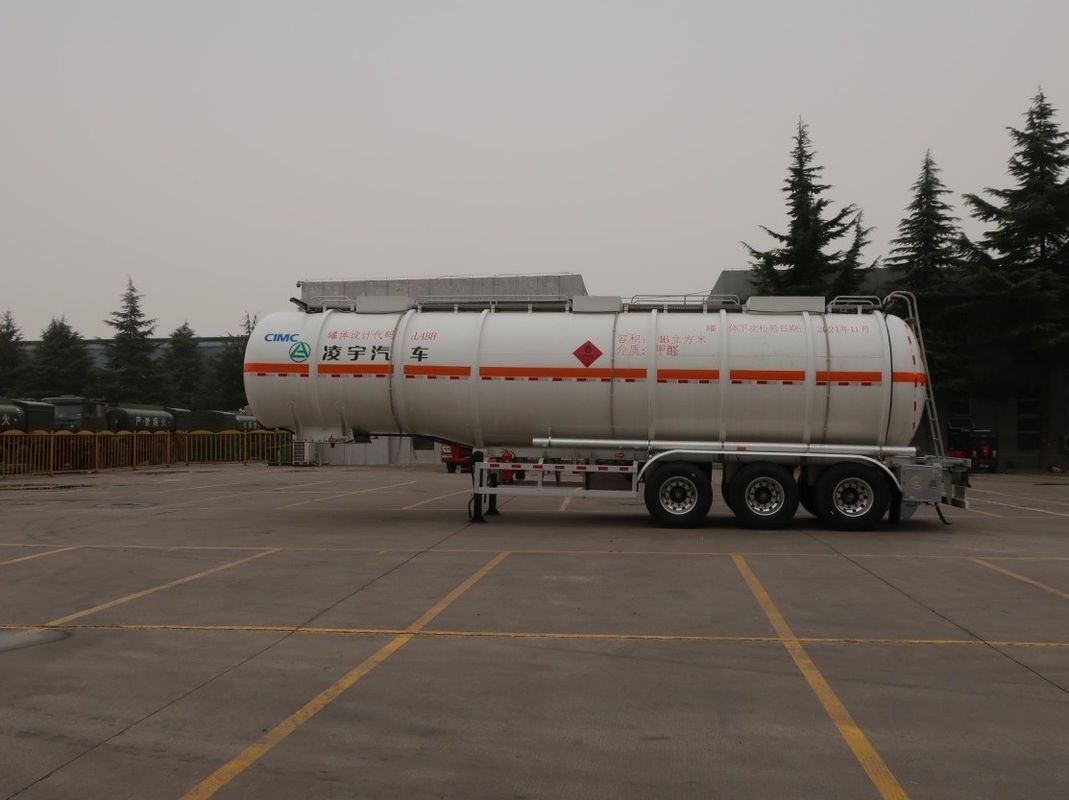

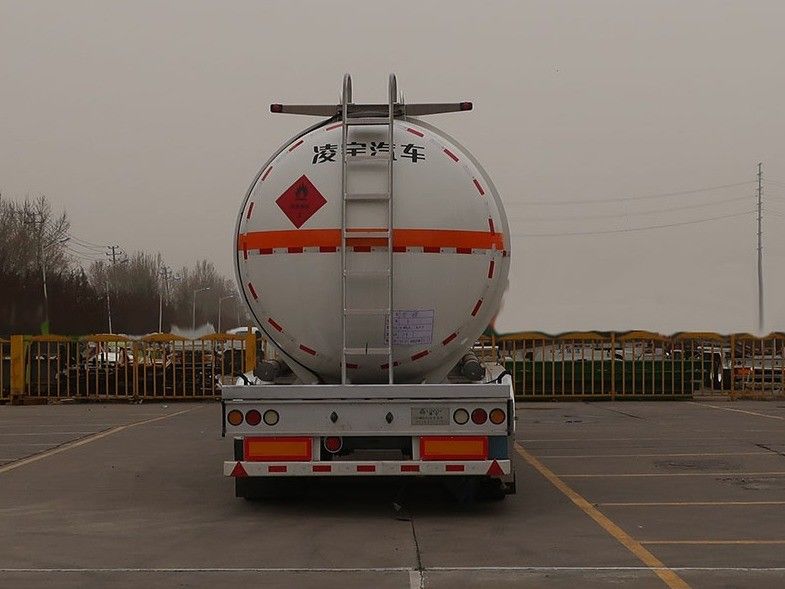

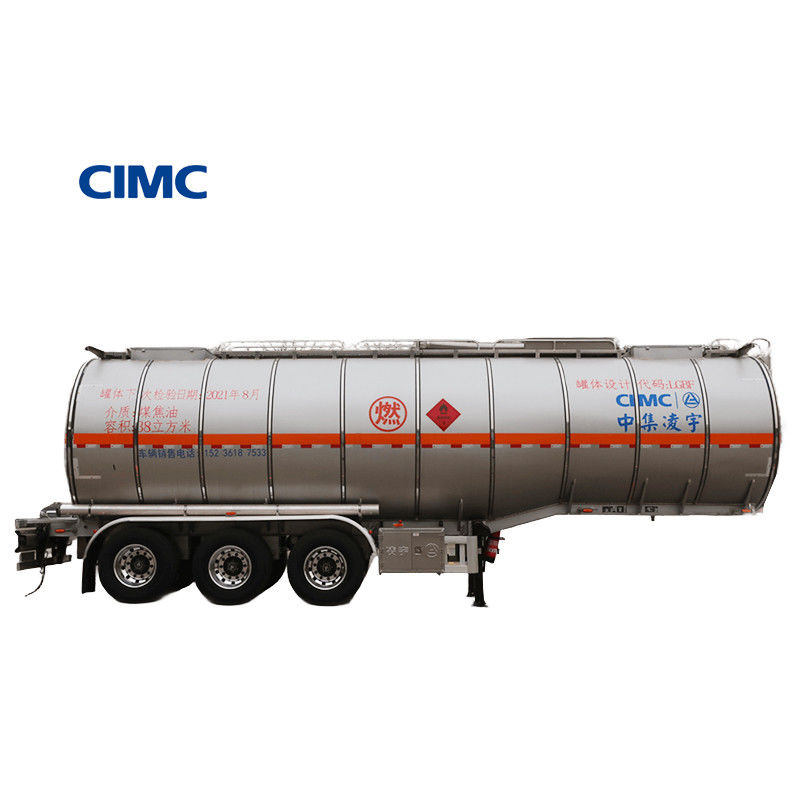

46000 Liter Stainless Steel Crude Oil Fuel Tanker Semi Trailer for Truck Distribution

Stainless Steel Fuel Tank Semi Trailer

Truck Distribution Fuel Tank Semi Trailer

46000 Liter Fuel Tank Semi Trailer

Place of Origin:

Henan, China

Brand Name:

CIMC LINYU

Request A Quote

46000 Liter Stainless Steel Crude Oil Fuel Tanker Semi Trailer for Truck Distribution

Product Details

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

12120/12320*2550*3950

Max Payload:

>30000 Kg

Model:

CLY9405GRYB2

Wheelbase(mm):

6150+1310+1310

Gross Mass(KG):

40000

Rated Load Mass(KG):

33200/33000/32700

Kerb Mass (KG):

6800/7000/7300

Tank Volume (m³):

Tanker Material:

Stainless Steel

Transport Medium:

Cooking Oil, Petroleum, Crude Oil, Fuel, Gasoline

Remark:

3-axis Straight Tank, Double Inner Tank To Keep Warm

Highlight:

Stainless Steel Fuel Tank Semi Trailer

Truck Distribution Fuel Tank Semi Trailer

46000 Liter Fuel Tank Semi Trailer

Payment & Shipping Terms

Price

$8,279.10/units 1-4 units

32100/31800 KG Rated Load Mass CIMC LINYU 8*4 Aluminum Alloy Liquid Fuel Tanker Trailer

Get Best Price

Steel CIMC LINYU 48000 Liter Fuel Trailer for Transporting Crude Oil Efficiently

Get Best Price

46000 Liter Stainless Steel Crude Oil Fuel Tanker Semi Trailer for Truck Distribution

Get Best Price

CIMC LINYU 48000 50000Liter Fuel Tank Trailer 3 Axle 48m3 Aluminum Alloy Semi Trailer

Get Best Price

Contact Now

Product Description

Specification

item	value
Model	CLY9405GRYB2
Use	Truck Trailer
Type	Semi-Trailer
Material	Stainless Steel
Overall Dimension(LWH)	12120/1232025503950
Max Payload	33200/33000/32700
Place of Origin	Henan, China
Brand Name	CIMC LINYU
Wheelbase(mm)	6150+1310+1310
Gross mass(KG)	40000
Kerb mass (KG)	6800/7000/7300
Tank volume (m³)	46
Tanker material	Stainless Steel
Transport medium	Gasoline, Cooking Oil, Crude oil, Petroleum, Fuel oil
Remark	3-axis straight tank，Double inner tank to keep warm

Product overview

Linyu Series liquid tank is a new high standard light weight tankers made of stainless steel，carbon steel and aluminum alloy.
The tank models include oil tanker, chemical liquid carrier, flammable liquid carrier, food carrier. Referred Europe FFB and the United States the HEIL style, and combined with the domestic market demand, the tank was re-designed based on finite element analysis. The main parts of the tank: shell cover and anti-wave plate adopted better anti-resistance folding dish structure.
Depending on the different stress in different parts of the tank, using different thickness steel, we ensure the lightest under the relevant standards and safety.
With unique shape and appearance, Linyu series liquid carrier adopted blast pretreatment process on structure parts. Using special tank tooling fixtures and in conjunction with the automatic protection welder, painting entirely in accordance with the requirements of the luxury passenger bus painting technology standards, the tank body appearance is beautiful same as bus, and the
quality reached industry-leading level. Owned over 20 patents technology, the products conformed to international standards. With the reasonable compatibility, reliable performance, cost-effective, stable quality, the products can meet the differences indemand.

Liquid transport vehicle (semi) features

Advanced design: Finite element analysis method is used to establish the stress analysis model of all working conditions and lightweight design, so that the strength and stiffness of the tank are optimized under lighter conditions; Anti-shock structure: the dish-shaped anti-wave plate in the tank can effectively scatter the shock wave around, reduce the local stress of the anti-wave plate, and protect the tank. According to the medium and road conditions, the wave plate adopts the dense arrangement method to make the tank body more evenly stressed. Reinforcing ring structure: stainless steel tank external reinforcing structure is unique in China; Full bearing frame, tank to bear most of the load, the vehicle weight is lighter, tank is not easy to deform,
more economical, more safe. Professional production: Domestic advanced 13m automatic TIG welding machine, PLC programmable control technology, a can forming process: reduce weld, high strength, smooth appearance, stable vehicle performance; Patent connection:
The frame and walking mechanism adopt the world's latest generation Huck BobTail fastening system to achieve the highest performance, safe and reliable connection of key parts; Safety and environmental protection: explosion-proof manhole, emergency cut off bottom valve (submarine valve), breathing valve, tank top coiling, sealing harness, oil and gas recovery and a series of safety devices, anti-roll, anti-collision, fire resistance, while improving loading efficiency, safety and environmental protection.
