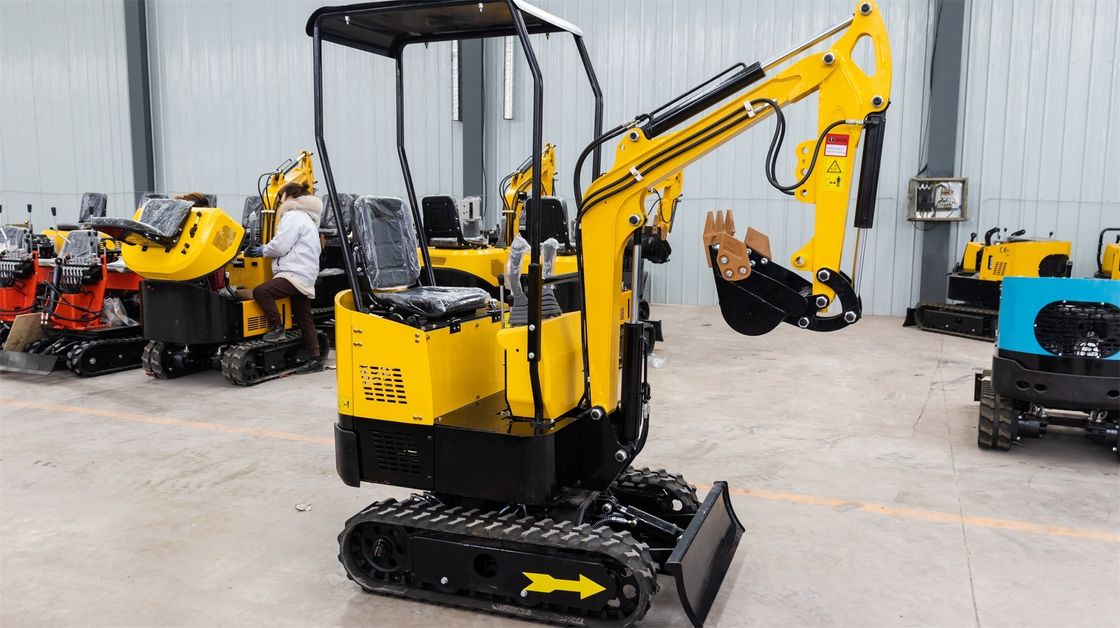

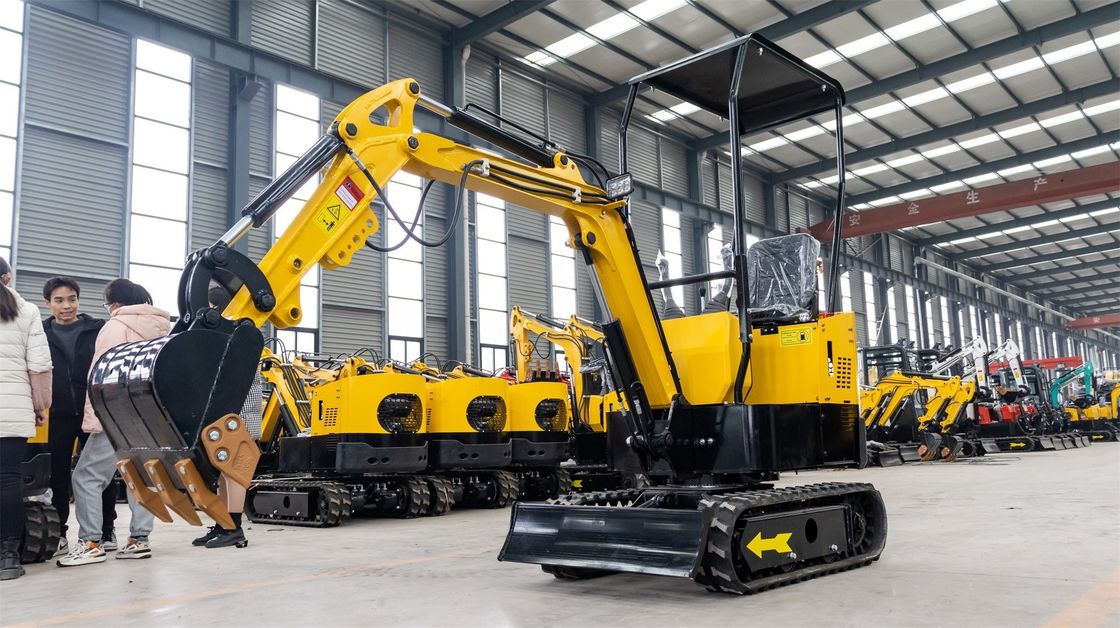

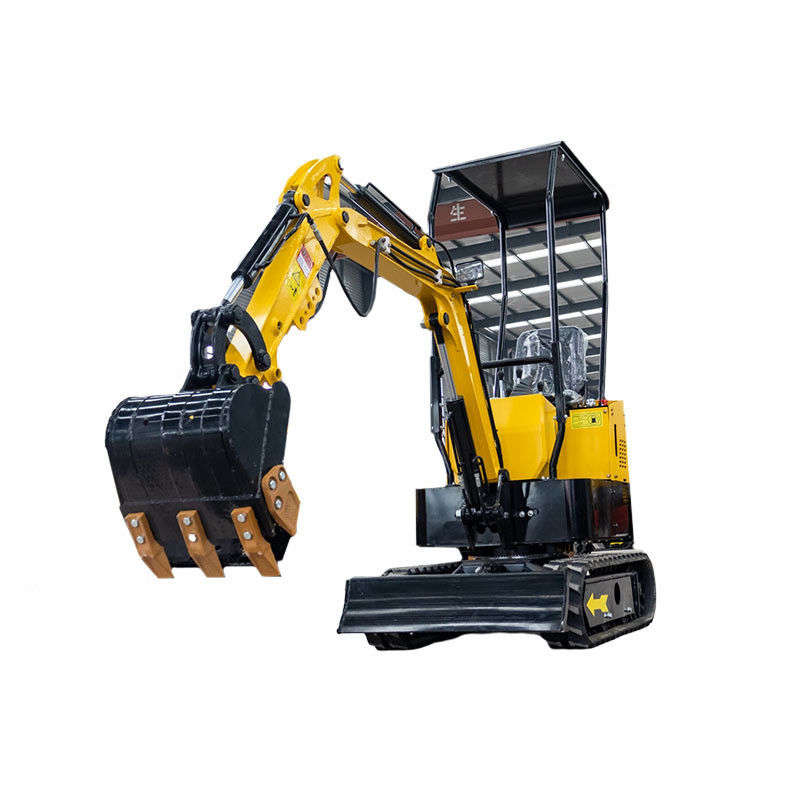

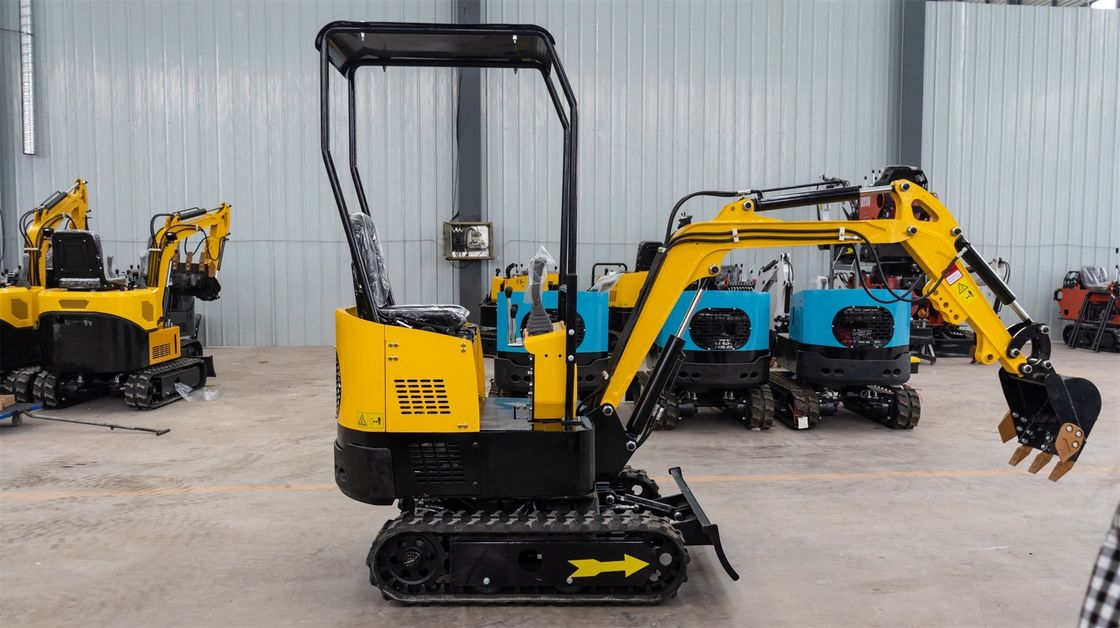

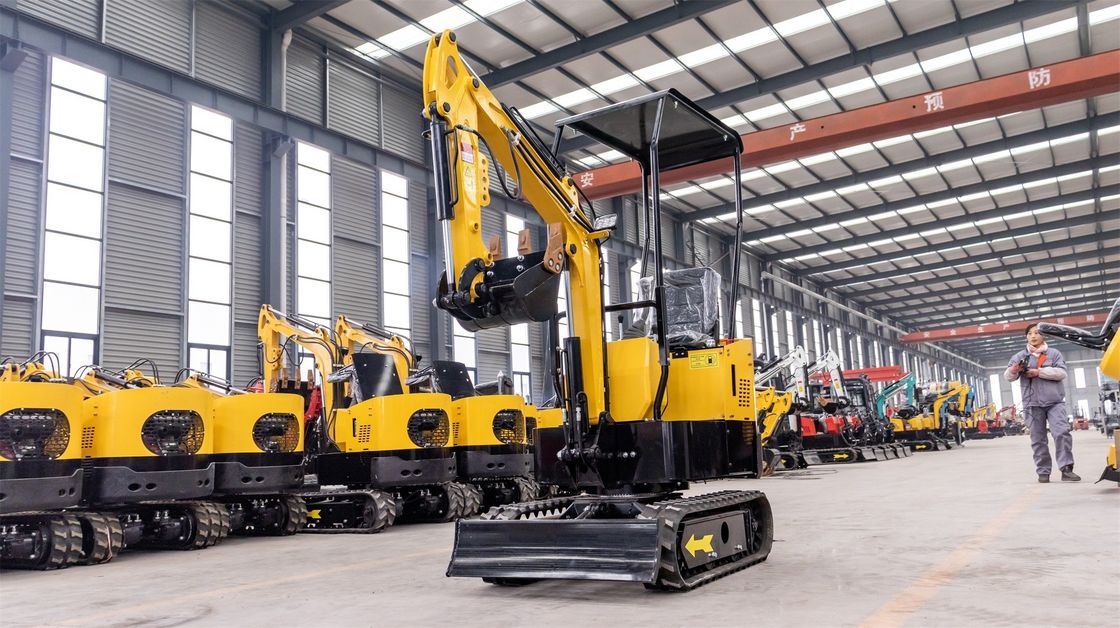

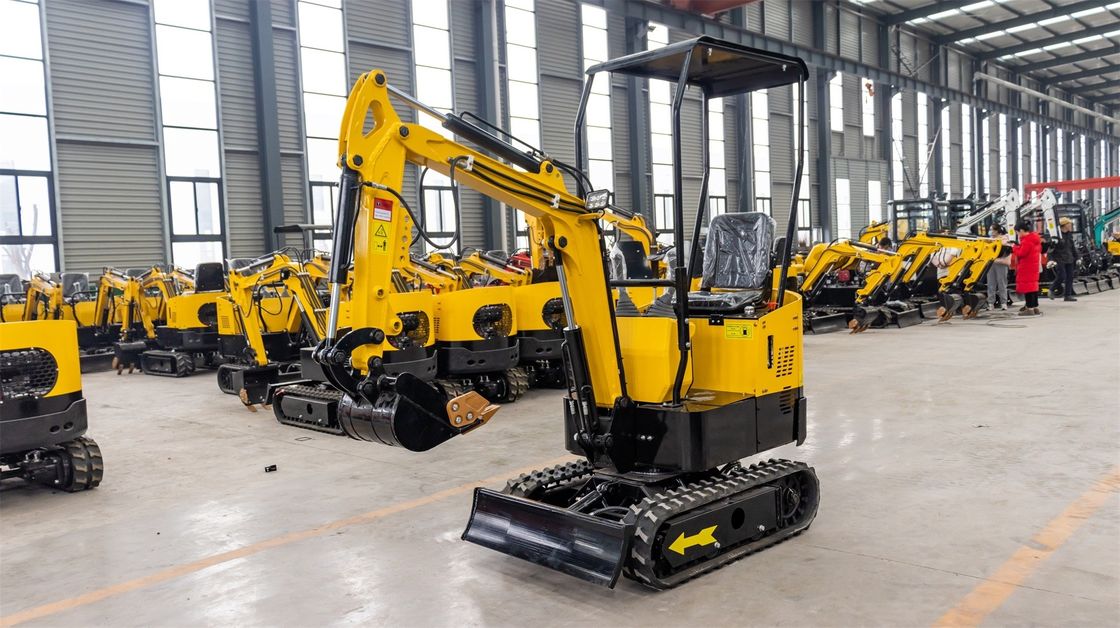

Name: 1 Ton Mini Excavator with Total Track Length of 1230mm and Advanced Hydraulic System
Brand: 1 Ton Mini Excavator with Total Track Length of 1230mm and Advanced Hydraulic System
SKU: 1 Ton Mini Excavator with Total Track Length of 1230mm and Advanced Hydraulic System
Price: 4 USD
Availability: InStock
Rating: 4.9 (141 reviews)

Home > products > Excavator Machine >

1 Ton Mini Excavator with Total Track Length of 1230mm and Advanced Hydraulic System

Place of Origin:

China

Request A Quote

1 Ton Mini Excavator with Total Track Length of 1230mm and Advanced Hydraulic System

Product Details

Operating Weight:

1Ton

Moving Type:

Crawler Excavator

Bucket Capacity:

0.025m³, 0.025cbm/120kg

Maximum Digging Height:

2610 Mm

Maximum Digging Depth:

1650 Mm

Machine Weight:

1000 Kg

Max Digging Radius:

2850 Mm

Rated Speed:

1.5km/h

Warranty:

1 Year

Hydraulic Cylinder Brand:

Customized

Hydraulic Pump Brand:

China Brand

Hydraulic Valve Brand:

China Brand

Engine Brand:

YANMAR

UNIQUE SELLING POINT:

Long Lifetime

Power:

8.2 Kw

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Engine, Motor, Pump, Bearing, Other

Bucket Width:

380mm

Rated Power:

8.2 Kw/3600r/min

Emissions:

6.8ml/r

Total Size:

2775 X 930x 2219 Mm

Total Track Length:

1230mm

Platform Clearance:

380 Mm

Chassis Width:

896 Mm

Orbital Altitude:

320 Mm

Engine:

Diesel Engine

Applicable Industries:

Farms, Home Use, Construction Works , Energy & Mining

Showroom Location:

None

Condition:

New

Marketing Type:

Hot Product 2022

Port:

SHANGHAI/TIANJING/QINGDAO

Payment & Shipping Terms

Price

$4,500.00/units 1-4 units

Supply Ability

2000 Unit/Units per Year

Product Description

Products Description

Specification

Performance parameter
weight	1000kg	Total size	2775 x 930x 2219 mm
Bucket capacity	0.025cbm/120kg	Total track length	1230mm
Bucket width	380mm	Platform clearance	380 mm
Cylinder diameter stroke	Single cylinder, fan cooled	Turning radius of Ping Di Building frame frame	784 mm
Rated power	8.2 kw/3600r/min	Chassis width	896 mm
gauge	830-1000mm	Track width	180 mm
emissions	6.8ml/r	Chassis clearance from the ground	132 mm
Maximum excavation radius	2850 mm	Orbital altitude	320 mm
Minimum radius of rotation	1330 mm	Maximum excavation depth	1650 mm
Walking speed	1.5km/h	Vertical digging depth	1375 mm
Maximum lifting height of shovel	345 mm	Maximum excavation height	2610 mm
Maximum digging depth of shovel	255 mm	Maximum unloading height	1850mm
