Place of Origin:
China

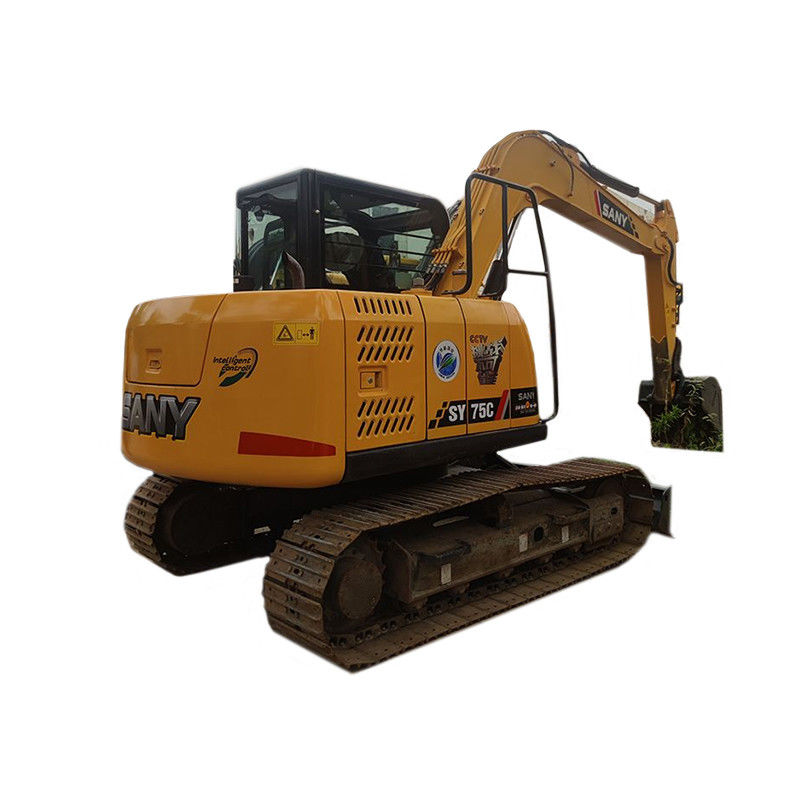

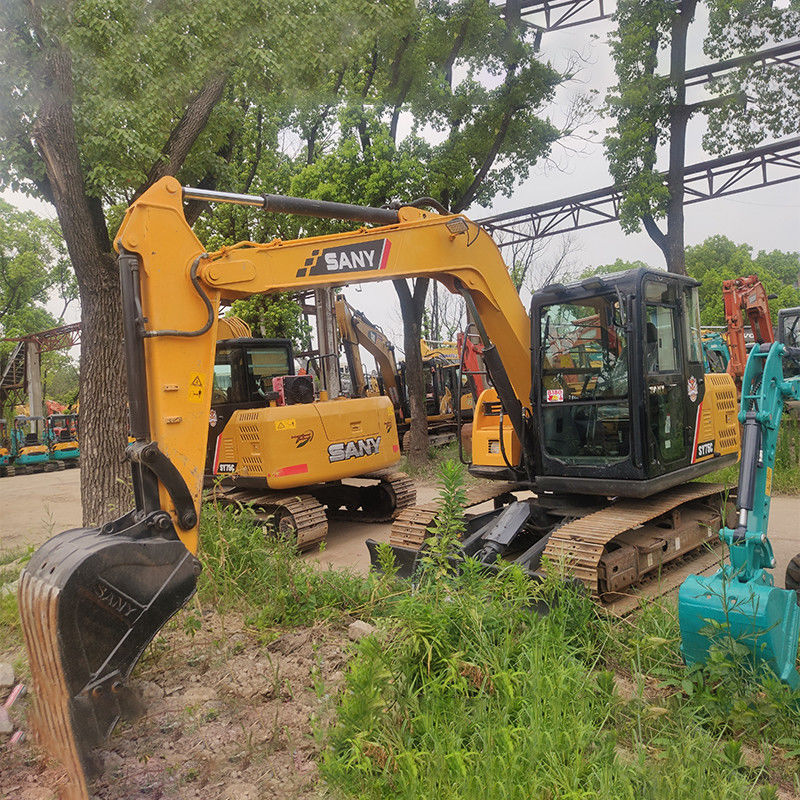

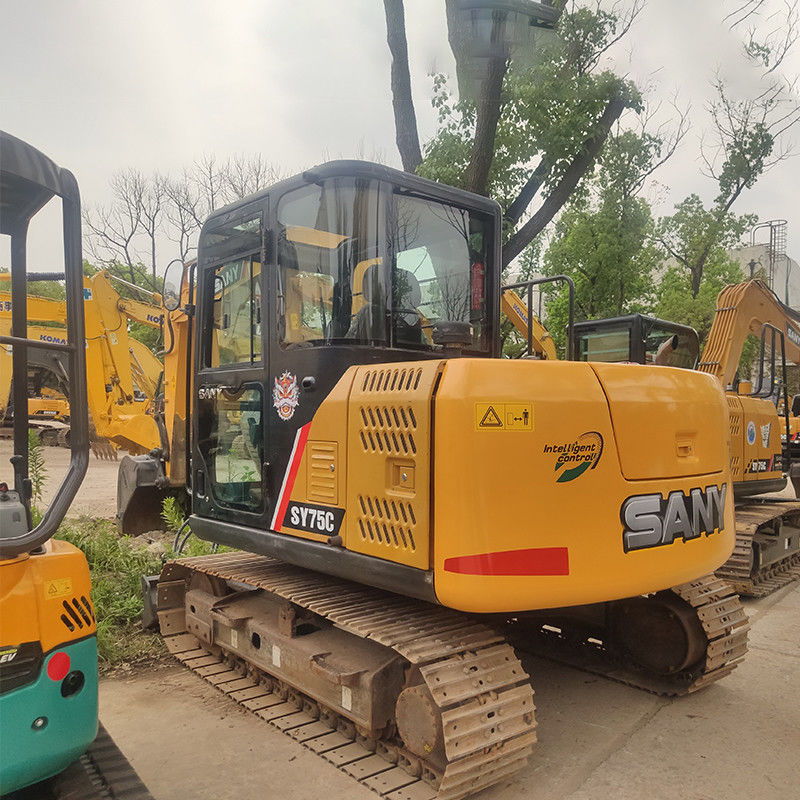

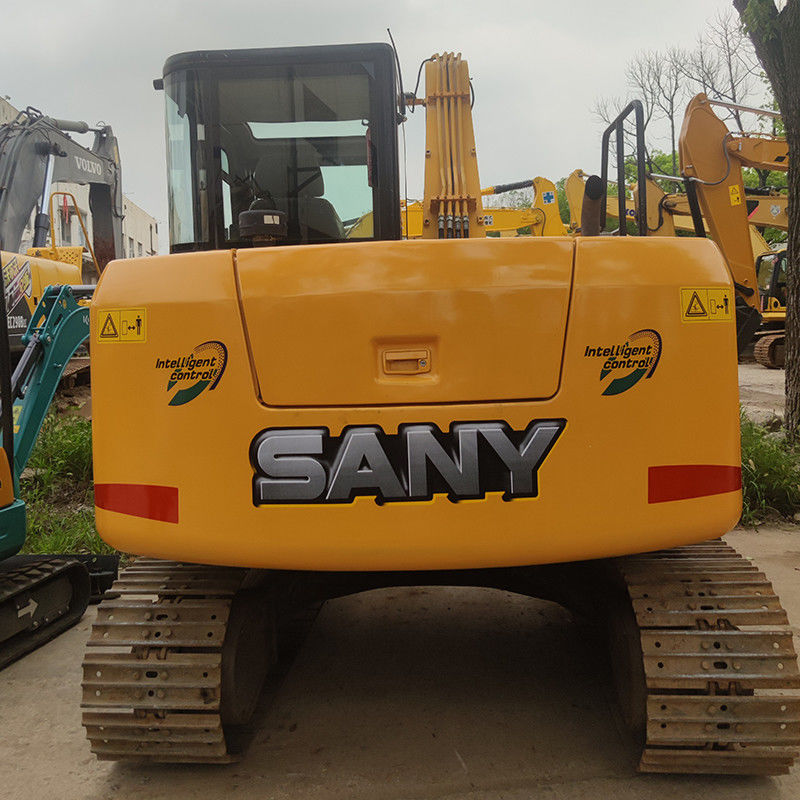

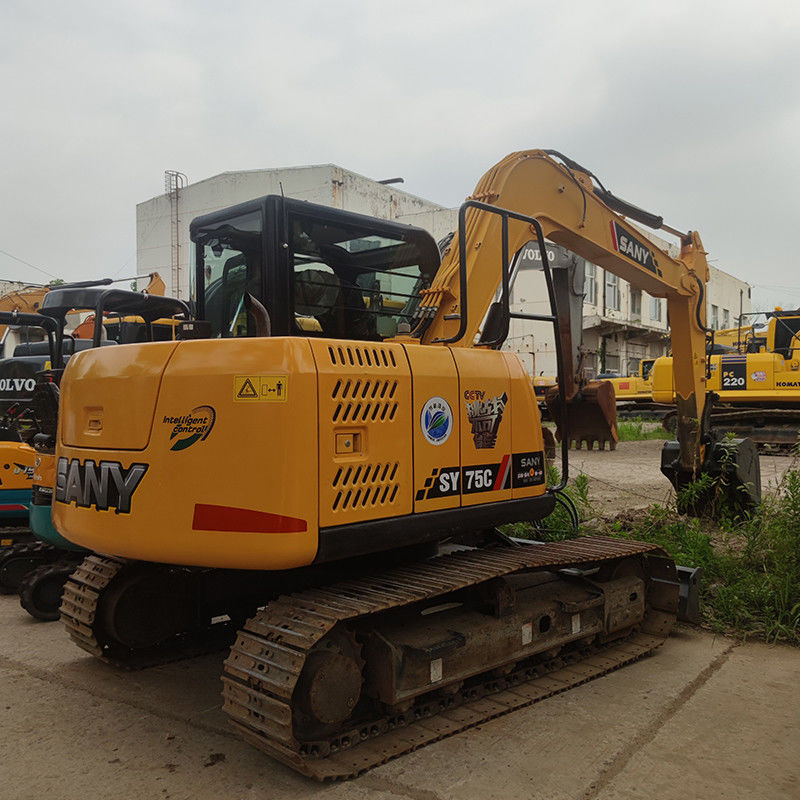

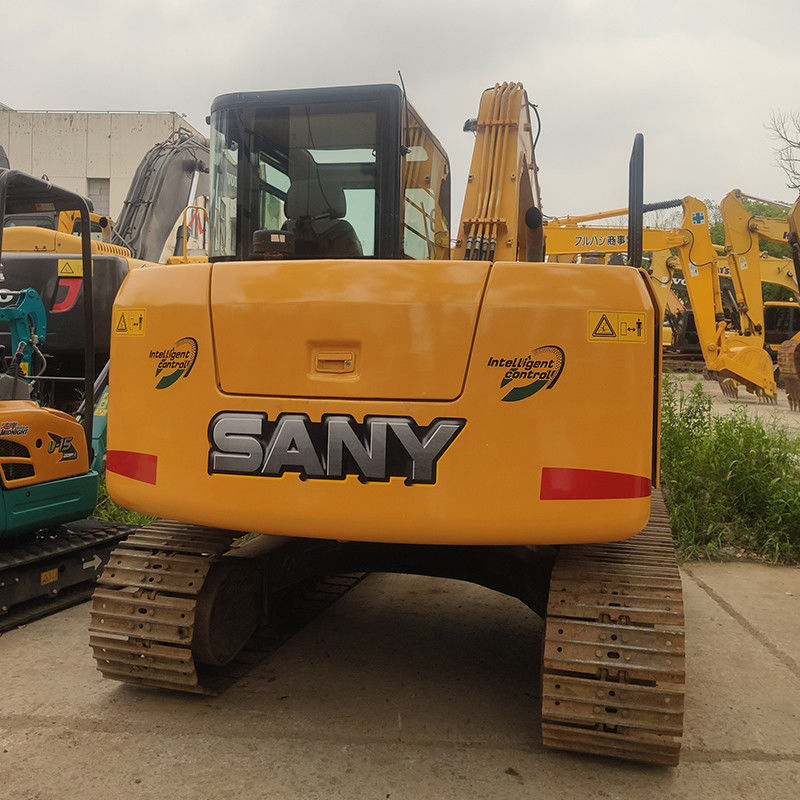

Specification | Dynamic system | ||||
bucket | backhoe | Engine type | Isuzu AU-4LE2X | ||
Tonnage (ton) | 7 | Rated power (kw/rpm) | 43/2200 | ||
Working weight of the machine (kg) | 7280 | Maximum torque (N.m) | 200/1600 | ||
Bucket capacity (m³) | 0.12~0.32 | Displacement (L) | 2.179 | ||
Body size | Number of cylinders (PCS) | 4 | |||
Total length of transport (mm) | 6120 | Cooling mode | Water cooling | ||
Total transport width (mm) | 2220 | Scope of operation | |||
Total transport height (mm) | 2720 | Maximum excavation radius (mm) | 6240 | ||
Track grounding length (mm) | 2195 | Maximum digging depth (mm) | 4020 | ||
Total track length (mm) | 2820 | Maximum excavation height (mm) | 7060 | ||
Track plate width (mm) | 450 | Maximum unloading height (mm) | 5155 | ||
Track gauge (mm) | 1750 | Maximum vertical digging depth (mm) | 3290 | ||
Minimum ground clearance (mm) | 380 | Shovel lift or depth (mm) | 350/360 | ||
Back end turning radius (mm) | 1800 | Performance | |||
Sprocket number (single side) (PCS) | 1 | Rotational speed (rpm) | 11.5 | ||
Number of track Plates (single side) (PCS) | 39 | Walking speed (km/h) | 4.4/2.4 | ||
Number of supporting wheel (single side) (PCS) | 5 | Climbing ability (%) | 70%（35°） | ||
Oil capacity | Ground specific pressure (Kpa) | 33 | |||
Fuel tank (L) | 150 | Bucket digging force (kN) | 56 | ||
Hydraulic tank (L) | 120 | Bucket rod digging force (kN) | 38 | ||
Engine oil replacement (L) | 9.5 | ||||
