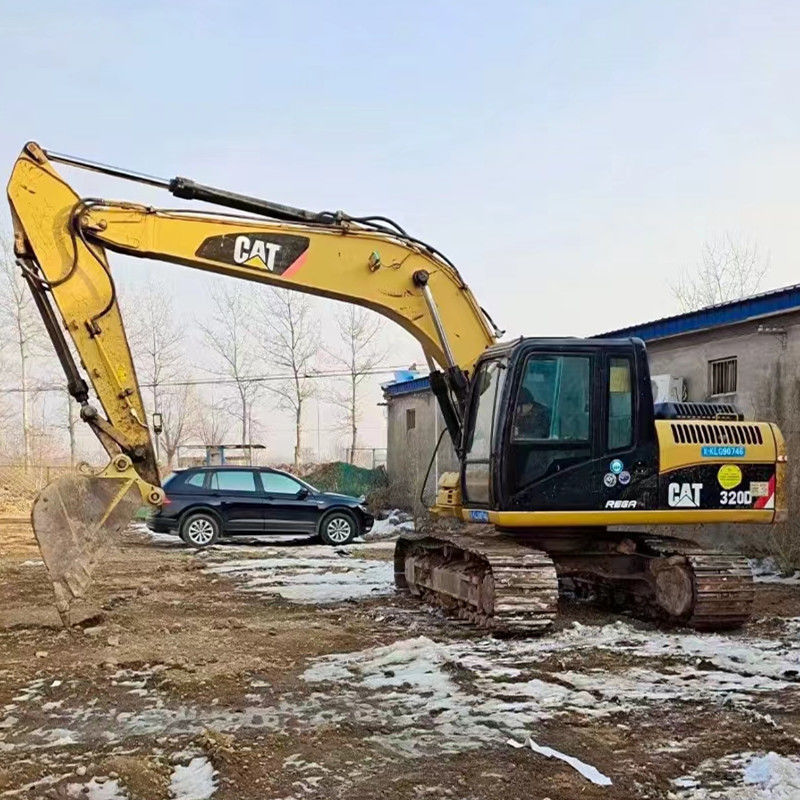

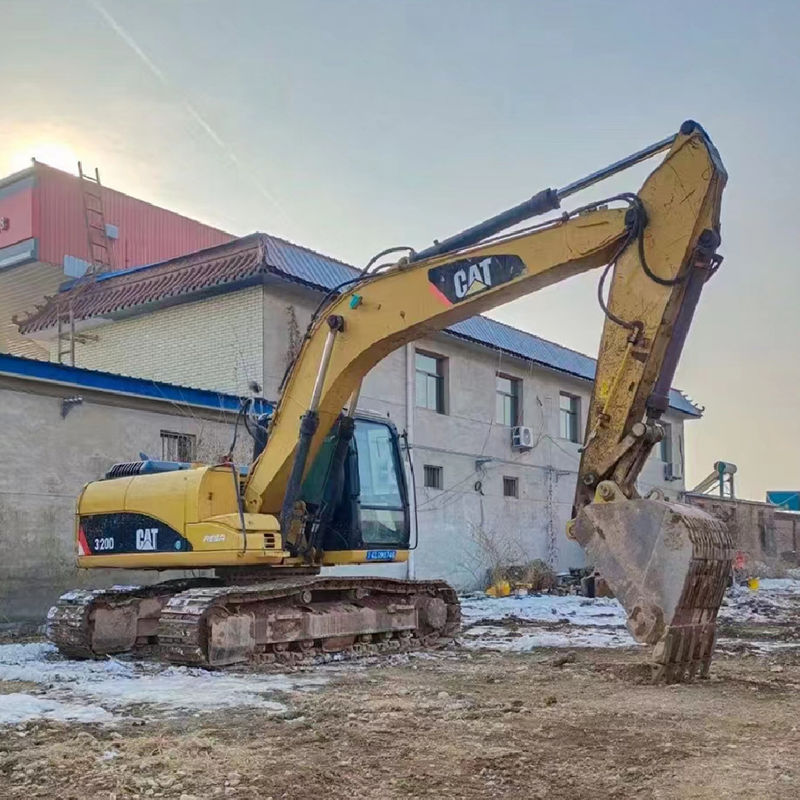

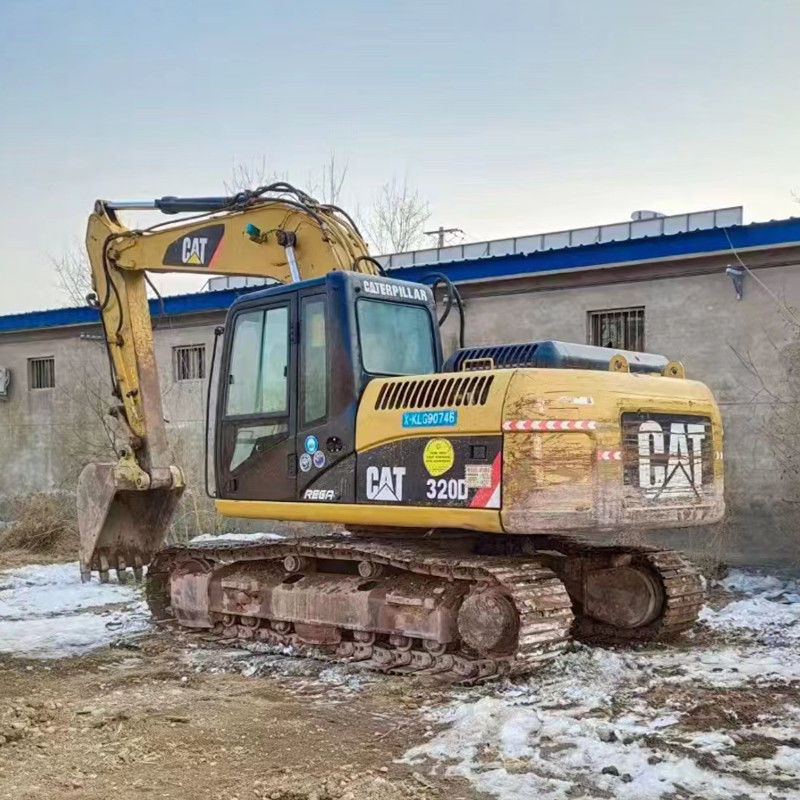

1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator

1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator

Contact Us
Request A Quote
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator
Product Details
Showroom Location:
Other
Operating Weight:
20 Ton
Bucket Capacity:
1m³
Machine Weight:
20930 KG
Hydraulic Cylinder Brand:
Other
Hydraulic Pump Brand:
Other
Hydraulic Valve Brand:
Other
Engine Brand:
CAT
Power:
103kw
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Year:
2019, 2016-2020
Working Hours:
2001-4000
Product Name:
Cat 320D Excavator
Condition:
90%NEW
Color:
Original Color
Engine:
Original Engine
Tonnage:
20 Tons
Rated Power:
103/2000 Kw/rpm
Displacement:
6.37L
Cylinder Diameter X Stroke:
102 X 130mm
Fuel Tank:
410L
Payment & Shipping Terms
Price
$18,258.00/units 1-4 units
RELATED PRODUCTS
Good price 22500kg Working Weight Used Doosan 225 Excavator with 2001-4000 Working Hours online

22500kg Working Weight Used Doosan 225 Excavator with 2001-4000 Working Hours

Get Best Price
Good price Sany SY215c Crawler Excavator with 580/1600N.m Maximum Torque and 1.1m3 Bucket Capacity online

Sany SY215c Crawler Excavator with 580/1600N.m Maximum Torque and 1.1m3 Bucket Capacity

Get Best Price
Good price 2001-4000 Working Hours Doosan DX225 Used Crawler Excavator with Other Hydraulic Valve online

2001-4000 Working Hours Doosan DX225 Used Crawler Excavator with Other Hydraulic Valve

Get Best Price
Good price Hot Item in Second Hand Komatsu PC200 Excavator with 3.1/4.2/5.5km/h Walking Speed online

Hot Item in Second Hand Komatsu PC200 Excavator with 3.1/4.2/5.5km/h Walking Speed

Get Best Price
Contact Us
Contact Now
Product Description
Products Description
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 0
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 1
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 2
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 3

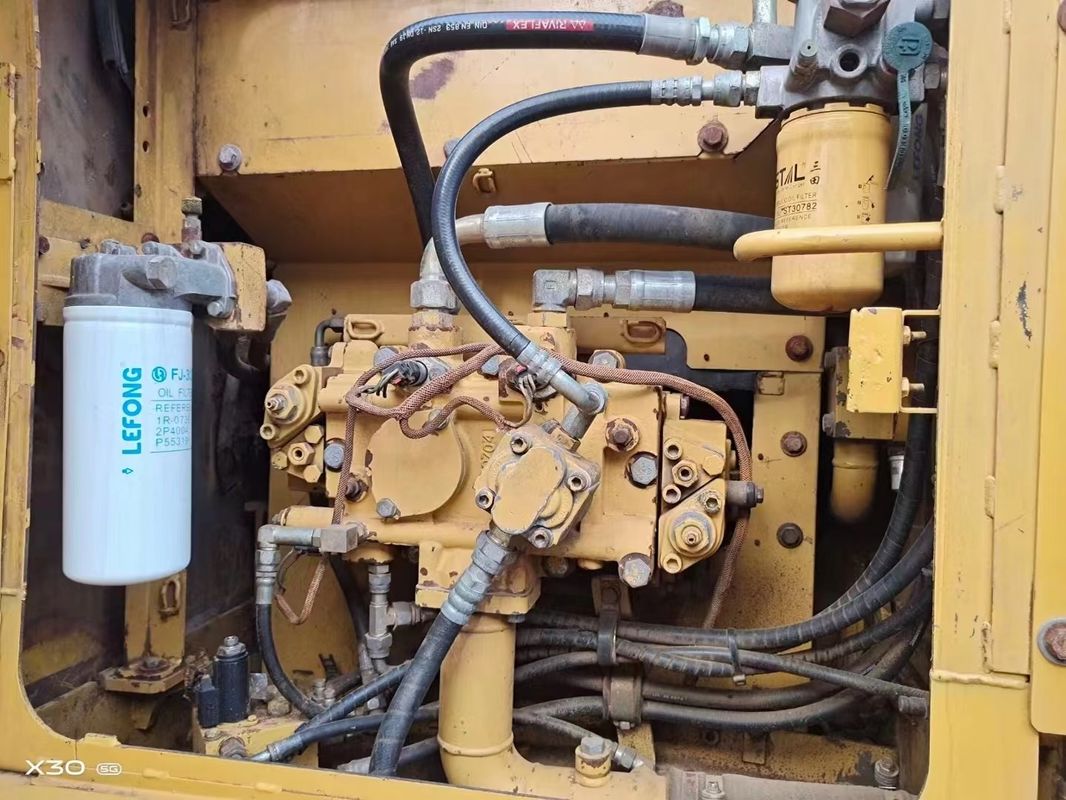

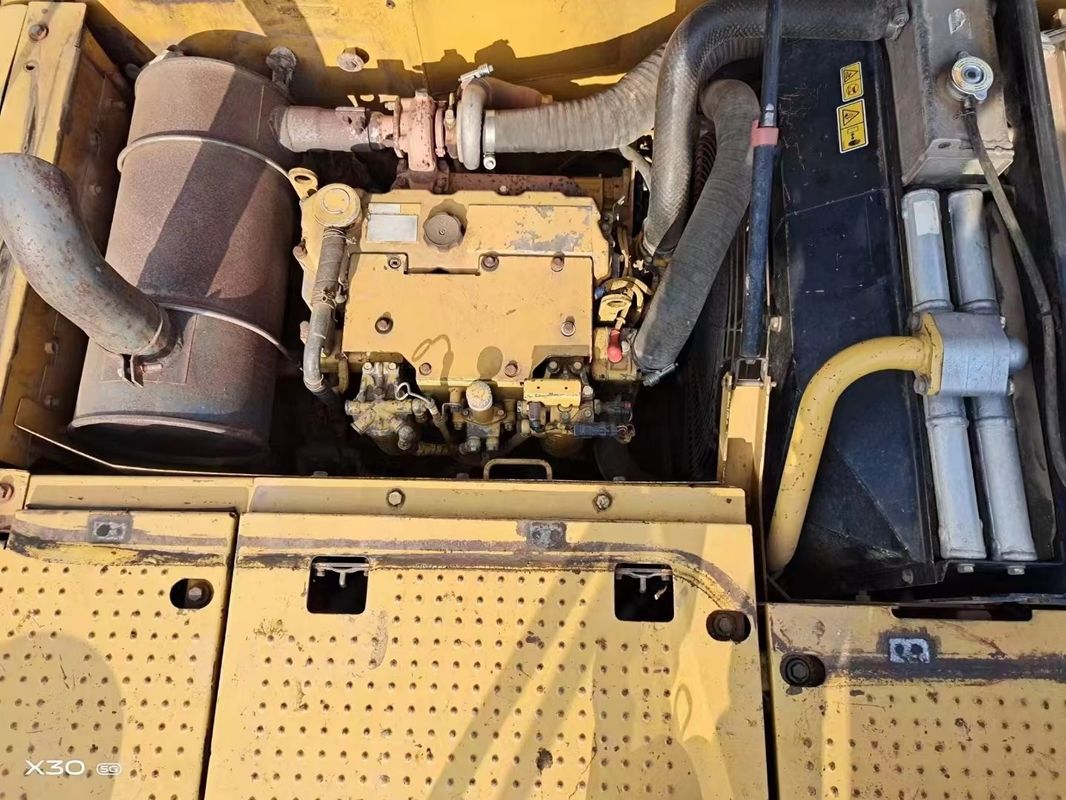

Details Images
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 4
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 5
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 6
1m3 Bucket Capacity Original Engine 20 Ton Diesel Cat Caterpillar Used 320D Cat Excavator 7
Product Paramenters
Specification
Hydraulic system
Working weight of the machine (kg)
20930
Maximum flow of main pump (l/min)
205
Bucket capacity (m³)
1
Working hydraulic oil circuit (Mpa)
35
Boom length (mm)
5700
Walking hydraulic circuit (Mpa)
35
Bucket rod length (mm)
2900
Rotary hydraulic circuit (Mpa)
25
The tonnage (ton)
20
Pilot oil path (MPa)
3.9
Climbing ability (%)
70/35°
Body size
Ground specific pressure (Kpa)
6
Total transportation length (mm)
9460
Bucket digging force (kN)
140.1
Total transport width (mm)
2800
Bucket rod excavation force (kN)
106.4
Total transport height (mm)
3050
Scope of operation
Cab full height (mm)
2950
Maximum excavation radius of stop surface (mm)
9850
Counterweight ground clearance (mm)
1020
Maximum excavation depth (mm)
6710
The track grounding length (mm)
3265
Maximum excavation height (mm)
9840
Track total length (mm)
4075
Maximum unloading height (mm)
6500
Track plate width (mm)
600
Maximum vertical digging depth (mm)
6180
Total track width (mm)
2800
Maximum effective excavation depth (mm)
6540
Track gauge (mm)
2200
Dynamic system
Minimum ground clearance (mm)
450
Engine model Carter
C6.4ACERT
Back end turning radius (mm)
2750
Rated power (kw/rpm)
103/2000
Oil capacity
Displacement (L)
6.37
Fuel tank (L)
410
Number of cylinders
6
Hydraulic oil tank (L)
120
Cylinder diameter x stroke (mm)
102 x 130
Hydraulic System (L)
260
Coolant (L)
25
