Place of Origin:
Henan, China
Model Number:
DX500

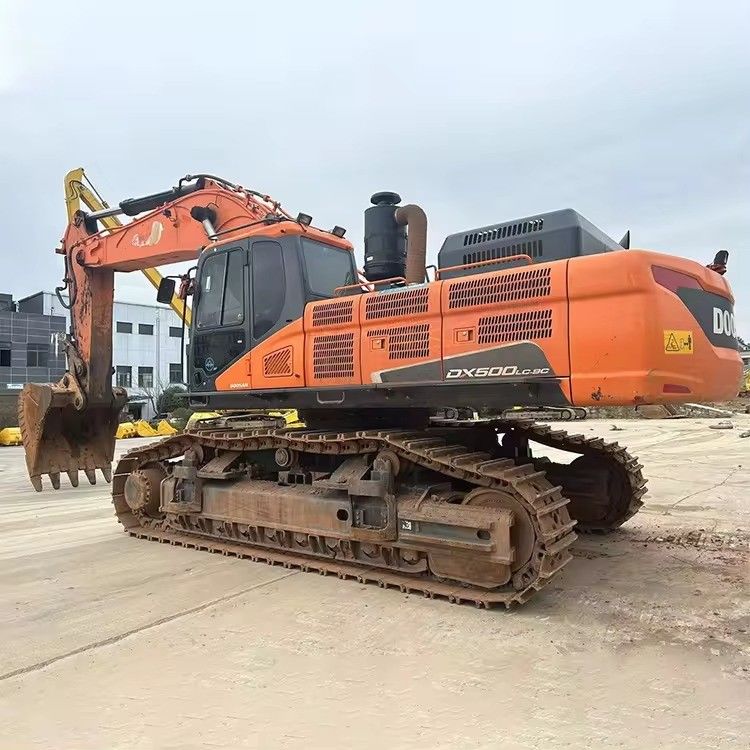

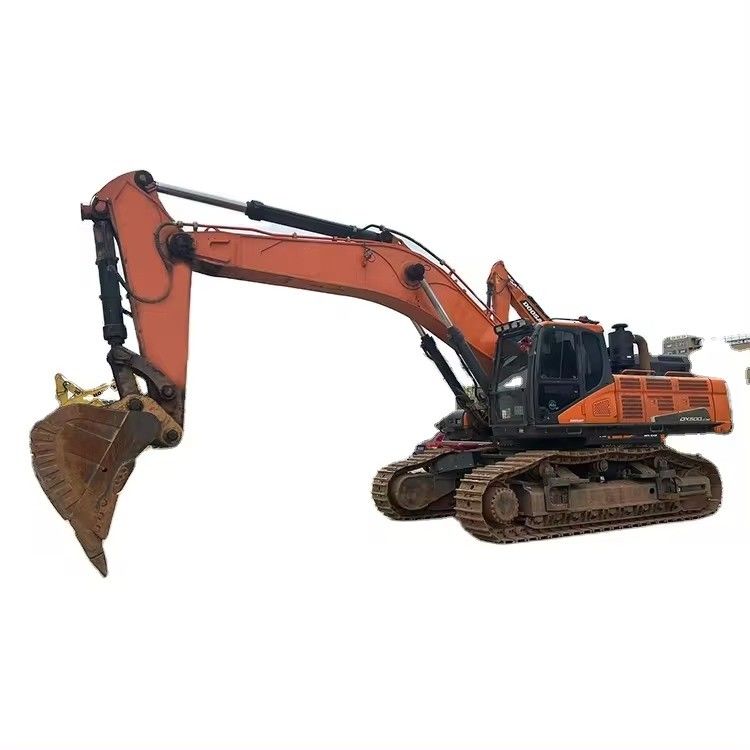

Product model: | DX500LC |
Product model: | Crawler excavator |
Product tonnage: | 50 tons |
Working weight of the machine: | 51.1 tons |

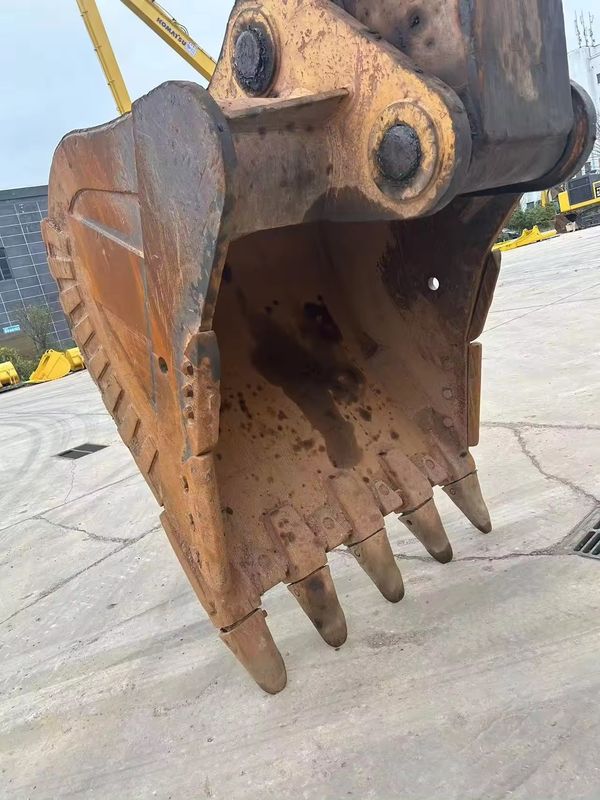

Bucket capacity: | 2.14 cubic meters |

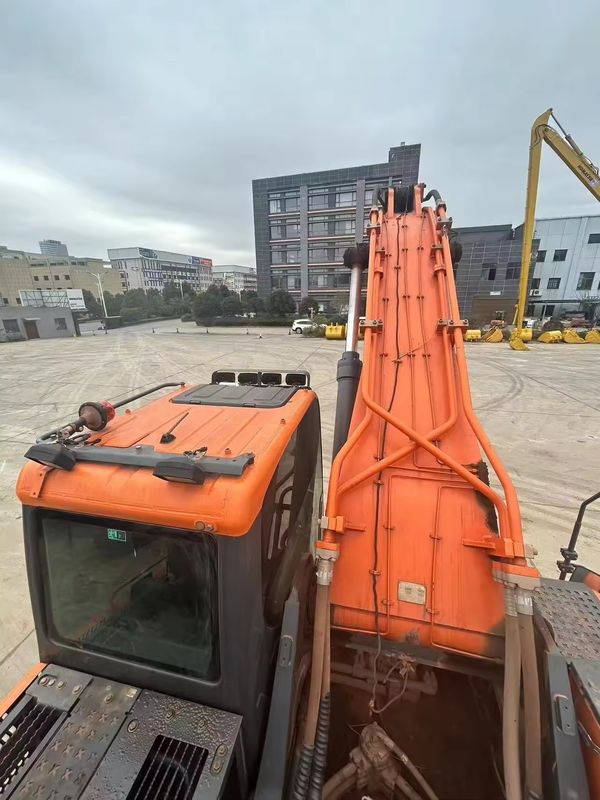

Boom length: | 7100mm |
Bucket rod length: | 3350mm |
Machine size: | 12.13 * 3.34 * 3.73 m |
Track plate width: | 600mm |
Minimum ground clearance: | 770mm |
Weight clearance: | 1460mm |
Back end turning radius: | 3700mm |
Maximum output power: | 238kW |
Main pump maximum flow: | 2×360L/min |
Working hydraulic circuit: | 31.4/ Supercharging 34.3 |
Walking hydraulic circuit: | 31.4/ Supercharging 34.3Mpa |
Rotary hydraulic circuit: | 26.5 Mpa |
Fuel tank capacity: | 620L |
Hydraulic tank: | 390L |
Engine oil change amount: | 28L |
Coolant: | 29.5 L |
Travel speed: | 5.6/3.2 km/h |
Bucket digging force: | 302kN |
Bucket rod digging force: | 221.6 kN |
Maximum digging radius: | 12120mm |
Maximum digging depth: | 7810mm |
Maximum excavation height: | 11080mm |
Maximum unloading height: | 7880mm |
Maximum vertical digging depth: | 4410mm |
