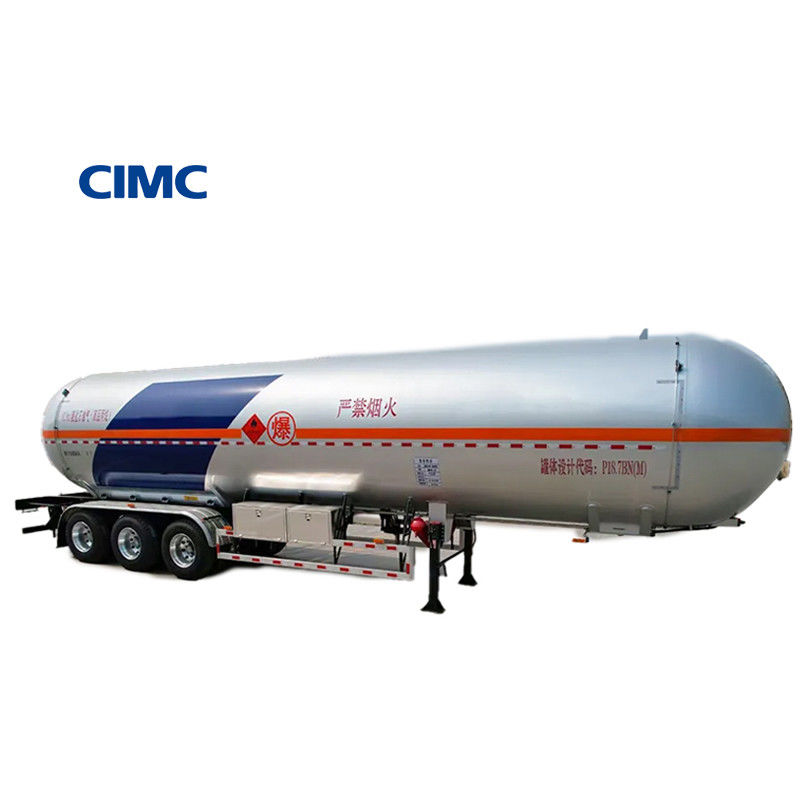

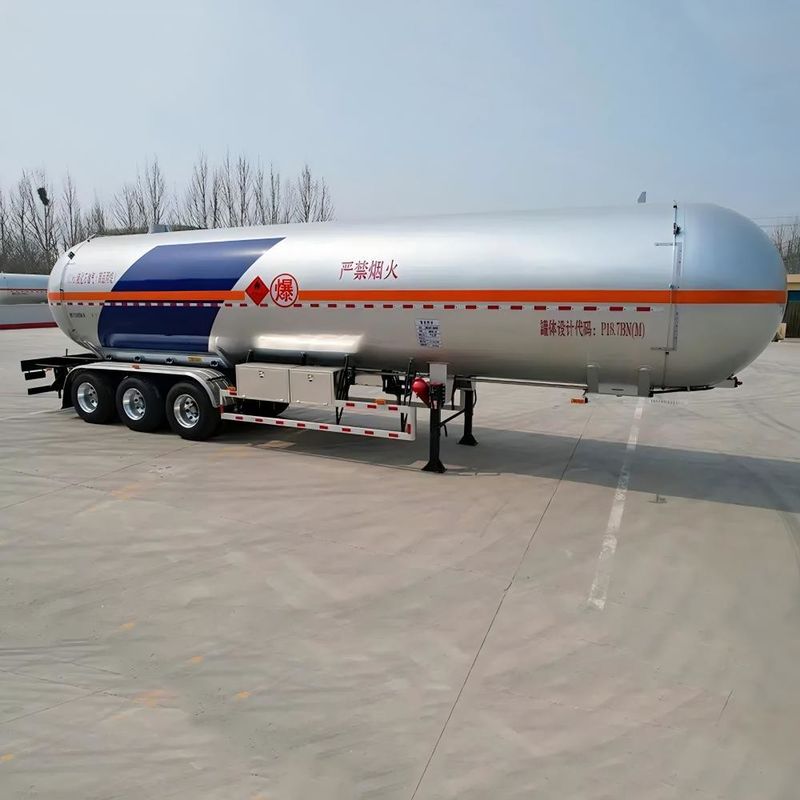

50m3 Capacity LPG Tanker Semi Trailer with -20/50C Design Temperature from CIMC LINYU

50m3 LPG Tanker Semi Trailer

13000kg Curb LPG Tanker Semi Trailer

CIMC LINYU LPG Tanker Semi Trailer

Place of Origin:

Henan, China

Brand Name:

CIMC

Request A Quote

Product Details

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

WH590E

Size:

L11390mm *W2500 Mm *H3980mm

Max Payload:

20001-25000 Kg

Product Name:

CIMC LPG Semi Trailer

Capacity:

50m3

Liquid:

LPG

Curb Weight:

About 13000kg

Total Weight:

About 34000kg

Design Pressure:

1.61 MPa

Design Temperature:

-20/50℃

Hydrotest Pressure:

2.1 MPa

Shell Material And Thickness:

WH590E 10mm

Head Material And Thickness:

WH590E 11.5mm (elliptical Heads)

Highlight:

50m3 LPG Tanker Semi Trailer

13000kg Curb LPG Tanker Semi Trailer

CIMC LINYU LPG Tanker Semi Trailer

Payment & Shipping Terms

Price

$39,989.00/units 1-4 units

Total Weight About 34000kg CIMC LINYU LPG Tanker Semi Trailer for Gas Transport Benefit

Get Best Price

50m3 Capacity LPG Tanker Semi Trailer with -20/50C Design Temperature from CIMC LINYU

Get Best Price

Contact Now

Product Description

Specification

Valves and Instruments
No.	Name	Brand	MODEL	Size	QTY /set
1	1.1. Valves and Instruments	Chinese Brand	A412F-25/NA42F-25	DN80	2
2	Internal Valve	Chinese Brand	QGJ43F-25P/QGY43F-25P	DN50	2
3	Internal Valve	Chinese Brand	QGJ43F-25P/QGY43F-25P	DN25	2
4	Ball Valve	Chinese Brand	Q41F-25P/CQA41F-25P	DN50	2
5	Ball Valve	Chinese Brand	Q41F-25P/CQA41F-25P	DN25	2
6	Pressure Gauge	Chinese Brand	YTN-102	M20×1.5	2
7	Globe valve	Chinese Brand	JJM1-25P	DN6	2
8	Rotary Gauge	Chinese Brand	YWJ-25	DN100	1
9	Thermometer	Chinese Brand	WTQ-280	M33×2	1
10	Vent valve	Chinese Brand	JJM1-25P	DN6	4

Semi-trailer Specifications
Name	Specification	Quantity (Pcs/Set)
Valve box	Stainless steel	2
Tool box	Stainless steel	2
Mudguard	Aluminum alloy mudguard with mudflap.	2 Pcs
Ladder	NO	/
Water tank or hose box	NO	/
Fire extinguisher	8kg	2 Pcs
King pin	Fixed wear plate with 2'' Dia bolted king pin KZ1012/10/08	1 Pc
Landing gears	JOST separate winding, model A400	1 Set
Suspension	Chinese Spring suspension	10 Pcs
Spare wheel carrier	YES	1 Pc
ABS	Provided with Chinese domestic ABS	1 Set
Rim	Steel rim	9 pcs (including 1 spare)
Axle	13ton Fuwa Axle	2 pcs
Tire	Double Coin" 12R22.5 tubeless tires	9 pcs (Including 1 spare tire)
Brake	Drum type	/
Light	LED lamps; 24V voltage.	1 Set

1.Welding and Manufacturing

The laser blanking process is used to complete the automatic assembly between the tube section and the head through the streamlining operation. The certified welder of the Chinese GB standard, ASME, classification society and other systems adopts double gun automatic welding, plasma automatic welding, and argon arc automatic welding and other advanced and high-quality welding processes to complete the tank body and internal welding, and the intelligent welding robots complete the welding of the external parts of the tank. The ultra-high proportion of automatic welding makes the welding quality of Hongtu’s products high-quality and stable, and the qualified rate of non-destructive testing is more than 99%, reaching the international and domestic leading level.

2.NDT

Advanced DR non-destructive testing technology and DDA automatic detection equipment with functions of one-key automatic detection, automatic digital evaluation and defects marking are adopted. After passing the test, a digital evaluation reports are automatically generated.

3.Heat Treatment

Using leading ultra-high-speed nozzle gas furnace equipment, adopting a more stringent heat treatment process than the standard, we achieve a high-precision furnace temperature uniformity control of 550-700℃, up to ±10℃, to relieve stress after welding to ensure the overall mechanical properties and quality stability of our products are better than those of other companies.

4.Hydraulic Test

We carry out the pressure test according to the design code and design documents, using clean water as the testing medium. After the test is qualified, the water will be drained and blown dry. After the hydraulic pressure test, the qualified vessels have no leakage, no visible deformation, and no abnormal noise during the test. If there is any leakage, retest will be done after repairing.

5.Air Tight Test

The air tightness test of the pressure vessel is carried out after the hydraulic test is qualified. The test medium is clean air, nitrogen or other inert gases, and the gas temperature is lower than 15°C.

6.Painting
Primer	Epoxy zinc rich primer(Zinc richness≥80%)	Film thickness≥60
Intermediate paint	Epoxy micaceous iron oxide intermediate paint	Film thickness≥60
Top coating	Acrylic acid aliphatic polyurethane top coating	Film thickness≥40
Overcoat varnish	Acrylic acid aliphatic polyurethane overcoat varnish	Film thickness≥25
Total film thickness		185 μm
