Place of Origin:
Henan, China
Brand Name:
KL

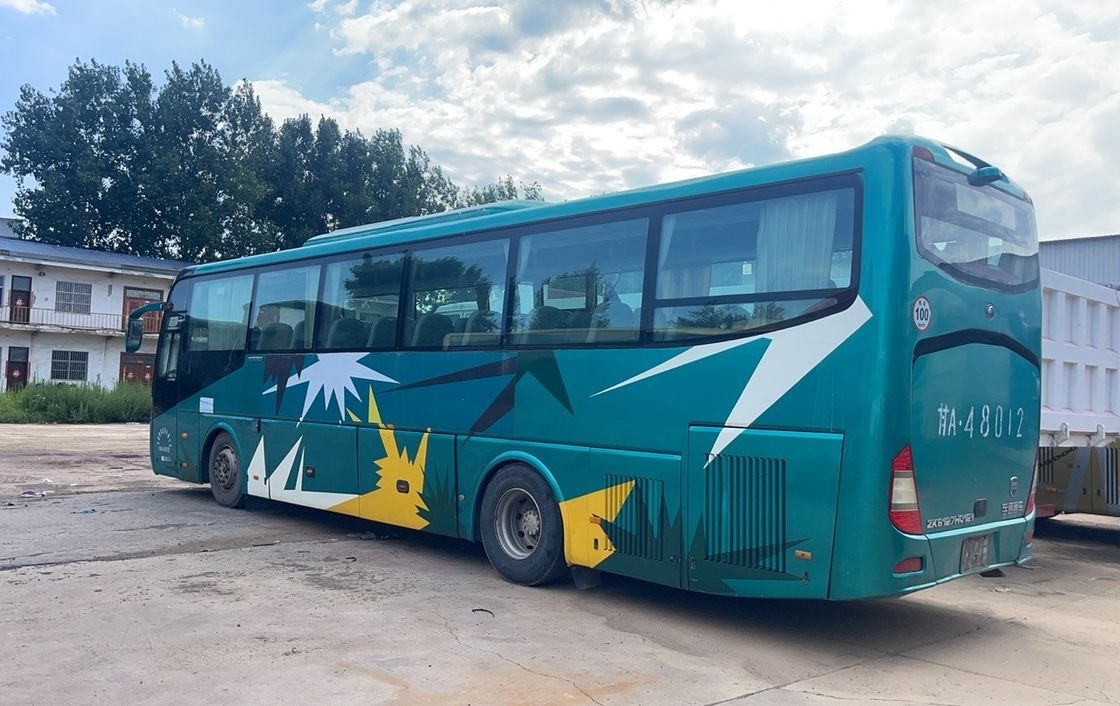

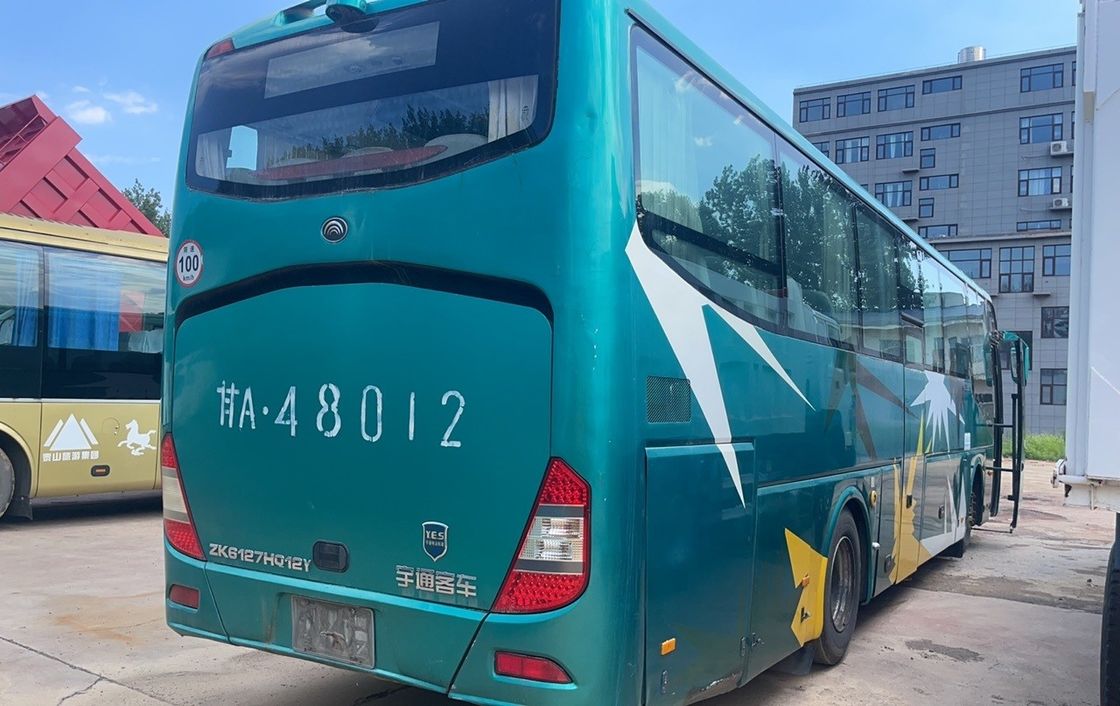

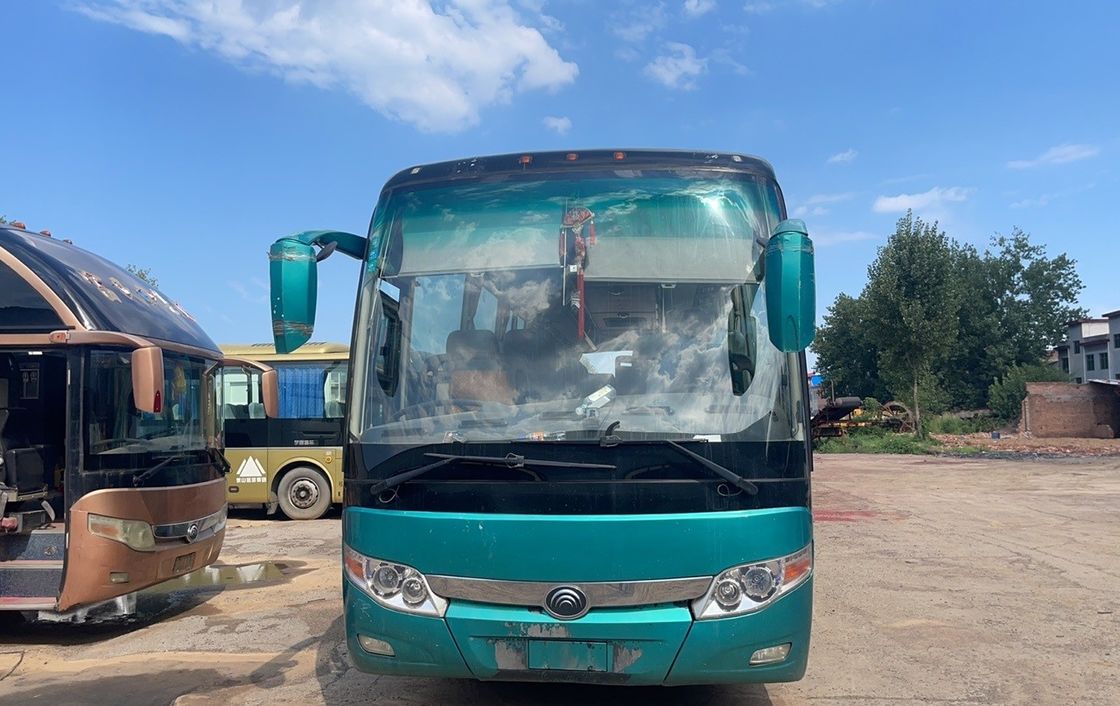

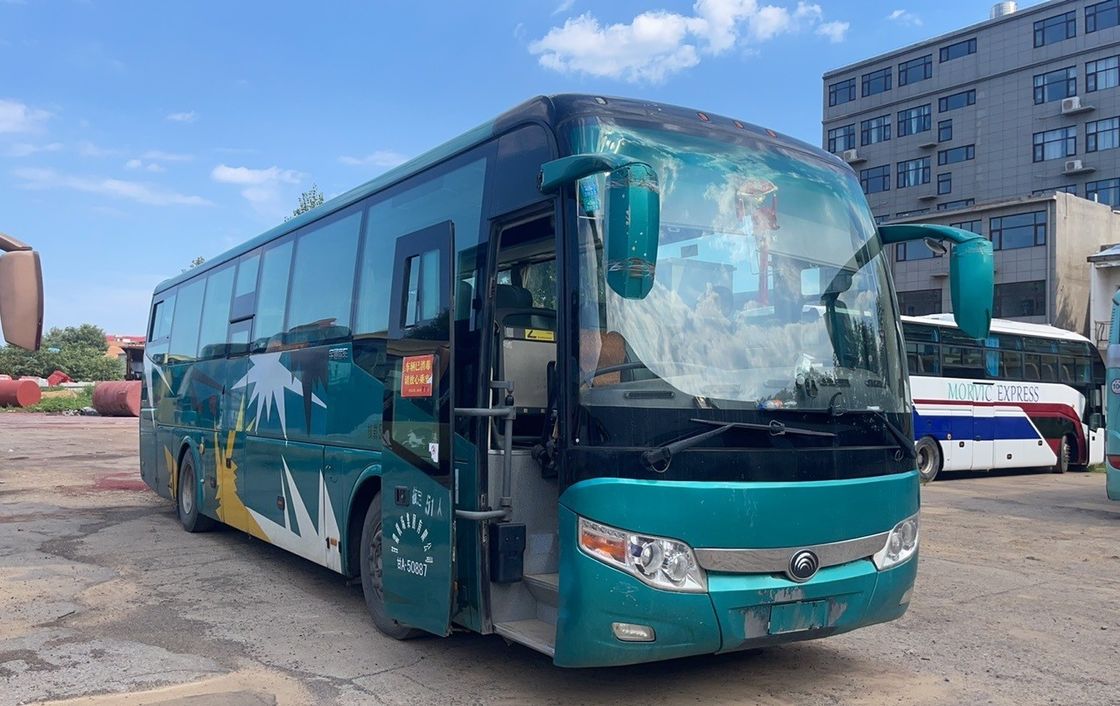

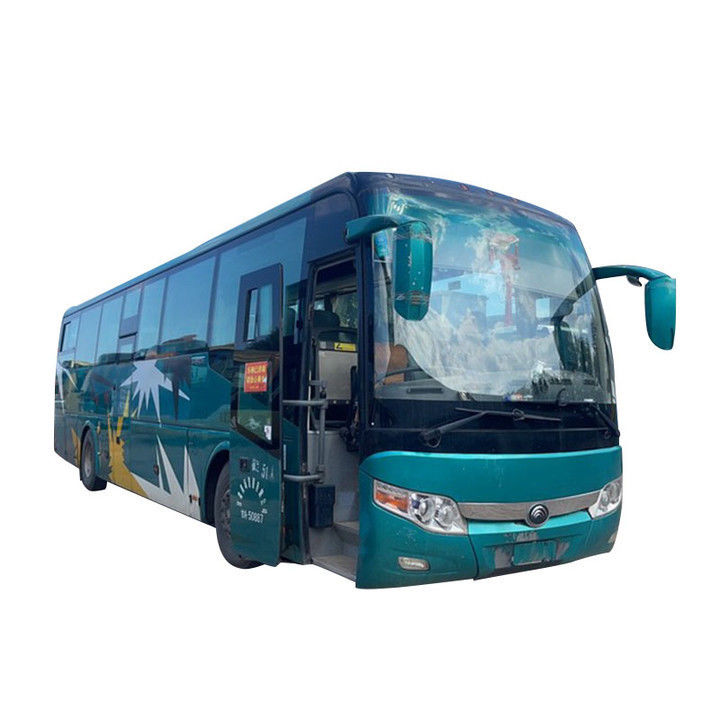

use | Passenger coaches, tourist coaches, group coaches |
body length | 9895mm |
body width | 2480mm |
body height | 3404,3650mm |
Vehicle quality | 10490,10000kg |
total mass | 14000kg |

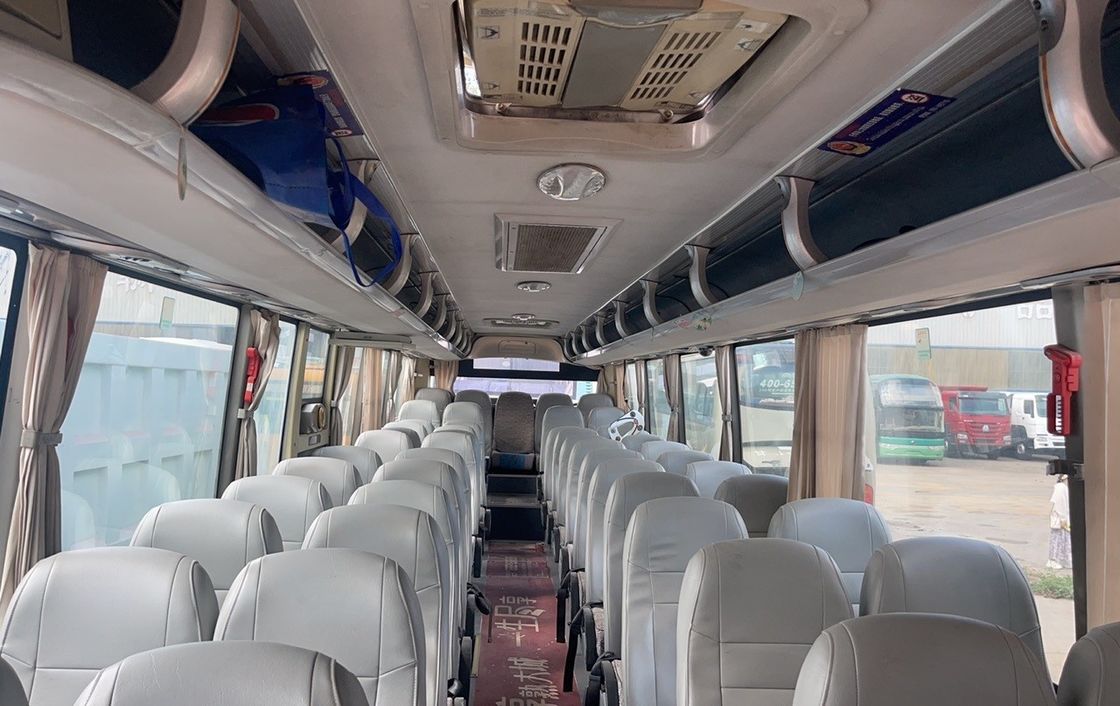

number of seats | 45-65 |
top speed | 100km/h |
engine | YC6G230N-50, YC6G260N-50, WP6NG240E50 |
engine power | 170,191,176kW |
Displacement | 7800,7800,6750mL |
Emission Standards | GB11340-2005, GB18285-2005, GB17691-2005 National V |
front suspension rear suspension | 1975/2920mm |
Number of spring pieces | 3/3,4/4,7/9,7/10,8/11,-/- |
number of axes | 2 |
wheelbase | 5000mm |
Axle load | 4500/9500kg |
Front track | 2040,2080mm |
rear track | 1860mm |
approaching the departure angle | 10/8° |
Number of tires | 6 |
Specification | 10R22.5, 275/80R22.5 |
