310-440Hp Dongfeng Dumper Truck Dump Truck with 6X4 Driving Loading More Than 30 Tons

Place of Origin:

Henan, China

Brand Name:

DONGFENG

Request A Quote

Product Details

Condition:

New

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 3

Segement:

Heavy Truck

Market Segement:

Urban Construction Muck Transportation

Engine Brand:

Cummins

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

FAST

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

2000-2500Nm

Cargo Tank Dimension:

5400X2300X1500

Cargo Tank Length:

5.3-6.2M

Gross Vehicle Weight:

20-25T

Capacity (Load):

21 - 30T

Fuel Tank Capacity:

300-400L

Drive Wheel:

6x4

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

Yes

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Manual

Air Conditioner:

Automatic

Tire Number:

After-sales Service Provided:

Onsite Installation, Video Technical Support, Overseas Call Centers, Field Installation, Commissioning And Training, Online Support, Shop Warranty

Product Name:

KC T-lifting Dump Truck

Brand:

Dongfeng Brand

Driving Type:

6x4 Left/Right Hand Driving

Engine:

371HP 375hp 380hp 420hp

Tire:

13R22.5 Etc

Power:

310-440Hp

Cab:

Standard Cab

Warranty:

1 Years/2000 Working Hours

Gearbox:

12JSD240TA

Emission:

Euro-3

Payment & Shipping Terms

Price

$15,000.00/sets 1-4 sets

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

We sell all the following types of new and used trucks

We guarantee that every new truck and used truck has high quality and good performance. Ensure that every customer is satisfied.
You can choose the type you want, and we can customize dump trucks with different loading weights and volumes according to customer requirements.

New And Used Various Types Dump Truck
Type of Vehicle : new and used dump truck	Horsepower : 336hp,371hp,375hp,380hp,420hp，etc.
Truck Brand : Sinotruk Howo, Shacman, faw, etc.	Drive form : 6x4,6x2,4x2,8x4
Driving Position : Left or right hand drive	Tire Type : 12.00R20 or 12.00R22.5
Fuel tanker capacity : 400L-600L , Diesel	Loading Weight : 20-50 Ton
Fuel Consumption : 30L/100km	Emission : EURO 2, EURO 3, EURO 4,EURO 5
Cargo Body Size : 5600x2300x1500mm	Color : Optional (Red, yellow, white, green, blue, etc.)

Products Description

A dump truck is a vehicle that unloads its own cargo by hydraulic or mechanical lifting. Also known as dump truck. The utility model is composed of an automobile chassis, a hydraulic lifting mechanism, a freight car, a force taking device, etc. . In civil engineering, dump trucks often work with excavators, loaders, belt conveyors and other construction machinery to form loading, transportation and unloading production lines, carry out loading, unloading and transportation of earthwork, sand and gravel and bulk materials.

Refurbished standard:

1.New cab interior, includes the seats, bed

2.New tyres.12+1 spare tires 3.new dump bucket.dump bucket size is 7300*2300*1500mm 4.New oil filter, fuel filter, air filters ,New engine oil & gearbox oil 5.New batteries 6.Good maintenance on the engine, gearbox, axles. 7.New painting.anti-rust paint on the chassis And so on

Details Images

The engine, chassis and cab of a dump truck are of the same construction as that of a general truck. The working principle is to control the movement of the piston rod through the control system, and the backward tilting is more common, pushing the piston rod makes the car tilting, a few of the two-way tilting. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and the front end of the carriage is provided with the cab safety protection plate. The engine drives the hydraulic pump through the transmission and the power take-off device, and the hydraulic tilting mechanism of the carriage is composed of the fuel tank, the hydraulic pump, the distributing valve, the lifting hydraulic cylinder, the control valve and the fuel pipe, etc. . The hydraulic overturning mechanism is composed of oil tank, hydraulic pump, distribution valve, lifting hydraulic cylinder, control valve and oil pipe.

New dump bucket.Size :7300*2300*1500mm

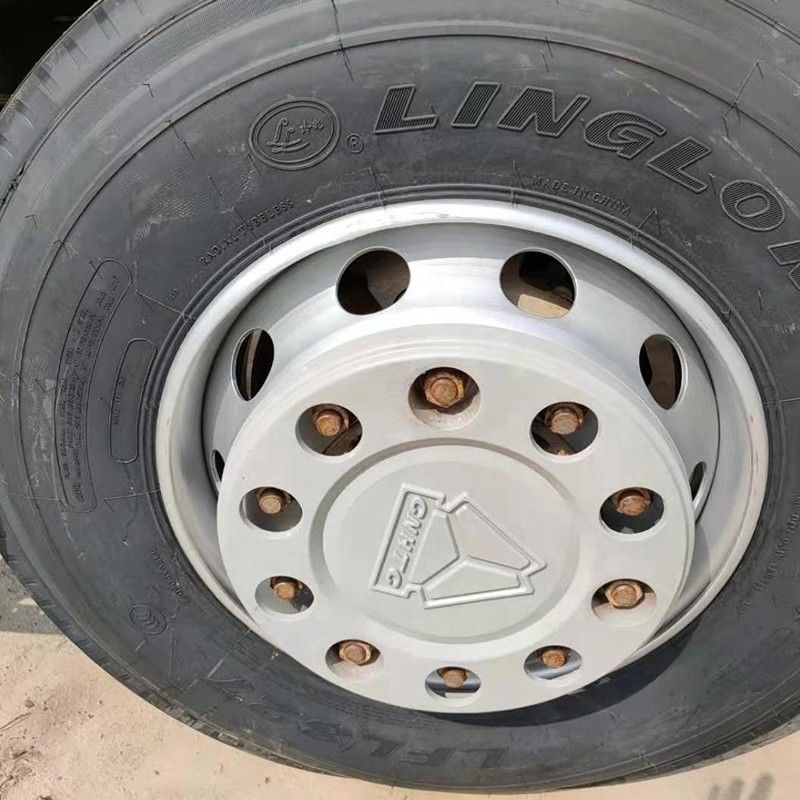

New tires with one spare tire

Right hand drive

Engine

New fuel tank

New cab interior

New batteries

Product Paramenters

Engine	WD615.47 371 hp Euro 2 Made By SINOTRUK
Truck Type	8x4
Driving Position	LEFT / RIGHT Hand Driving
Cab	HW76 one berth, safety belt for drive and co-drive, two seats, air-condition
Transmission	HW19710, 10 forward and 2 reverse torque:1900N.M
Front axle	HF9 axle Steering axle
Driving axle	HC16*2, ratio 5.73
Fuel tanker volume	300L
Wheel base	3800+1325mm
Steering	ZF8118 with hydraulic assistence Power from GERMAN
Tires	12.00R22.5 ,10+1 pcs one spare tire
Brake system	Air brake with WABCO value.
Cargo body size(mm)	730023001500mm, 25.32M3
Overall dimension(mm)	1055025003450mm
Thickness	bottom 8, side 6 mm ,normal Shape cargo box.
Lifting system	Front lifting by hydraulic pump system
Kind of Fuel	Diesel
Bumpers	rear and front bumpers in steel material
Color	According to customer requirements
