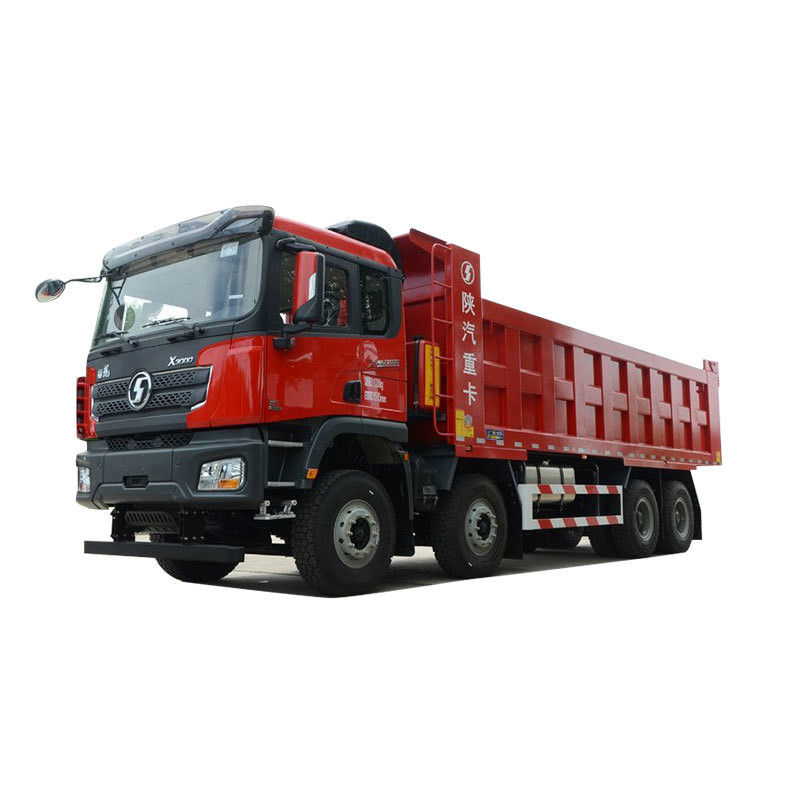

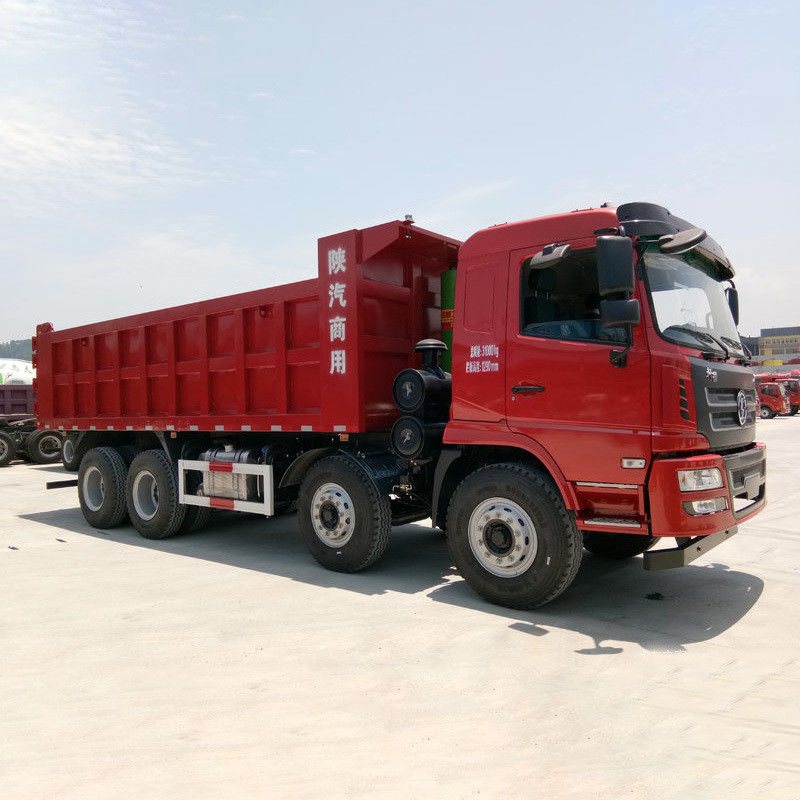

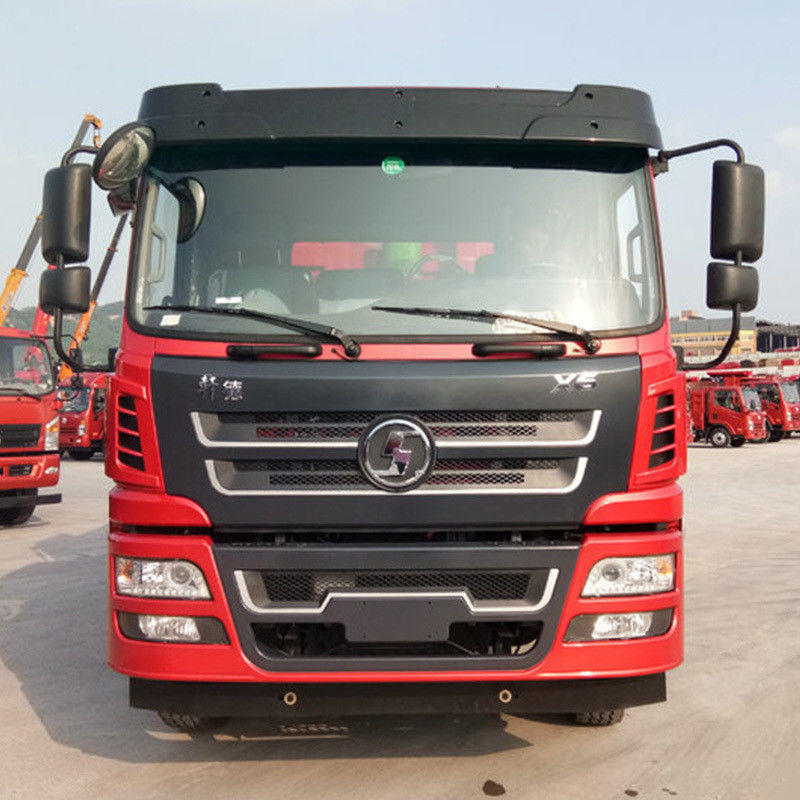

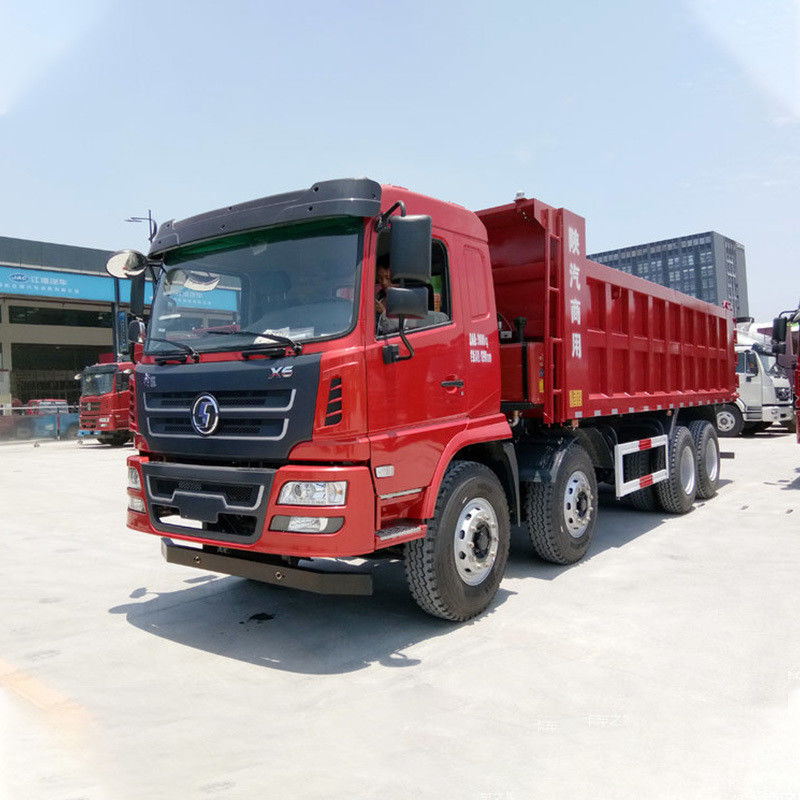

Name: Middle-Rear Axle Used Shacman F3000 8x4 Tipper Truck for Mining Dump Truck No Touch Screen
Brand: Shacman
SKU: Shacman
Price: 25 USD
Availability: InStock
Rating: 4.6 (143 reviews)

Home > products > Construction Dump Truck >

Middle-Rear Axle Used Shacman F3000 8x4 Tipper Truck for Mining Dump Truck No Touch Screen

Place of Origin:

SHN

Brand Name:

Shacman

Request A Quote

Product Details

Condition:

Used

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 2

Make:

Shacman, Shacman

Segement:

Heavy Truck

Market Segement:

Engineering Transportation

Engine Brand:

WEICHAI

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

FAST

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

2000-2500Nm

Cargo Tank Dimension:

7600 X 2300 X1500 Mm

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

15-20T

Capacity (Load):

31 - 40T

Fuel Tank Capacity:

300-400L

Drive Wheel:

6x4

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Manual

Air Conditioner:

Manual

Tire Number:

After-sales Service Provided:

Video Technical Support, Online Support

Overall Dimension(LXWXH)(mm):

9770X4230X4560

Curb Weight(kg):

39000

Engine:

Weichai WP13G530E310

Gearbox:

Auto Gearbox FC6A250PRT

Front Axle:

Welded Axle Housing

Middle-Rear Axle:

Main Reduction Ratio 4.11

Wheel Rim:

13.00/2.0-25

Tyre:

18.00R25

Front Suspension System:

Leaf Spring + Double-acting Cylinder Shock Absorber

Rear Suspension:

Spring + Rubber Balance Suspension

Payment & Shipping Terms

Price

$25,000.00/units 1-2 units

Packaging Details

Bulk ship

Supply Ability

100 Unit/Units per Month

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Product Video

Products Description

Shacman 380 HP 8X4 Used Dump Truck

Truck Fatures:

1) New tipper box

2) New tyres

3) New cab interior

4) Better price-performance Ratio

5) 380 HP big power

6) Better performance and high efficiency

7) MAN Technology Axles with better duration

Details Images

Product Paramenters

Item	Data	Item	Data
Max.Design Weight（kg）	108000	Overall Dimension（LxWxH）（mm）	9770x4230x4560
Unladen/Laden Max.Speed（km/h)	48/41	Unladen/Laden Max.Gradeability（°）	36.7
Struck Capacity (flat/ heaped)m³	38/44	Min.Turning Diameter(m)	≤24
Curb Weight（kg）	39000	Payload(kg)	70000
Wheel Tread（mm）	Front Axle：3120；Middle-Rear Axle：2910	Wheelbase（mm）	3910（Front-Middle）1800（Middle-Rear）
Approaching Angle(°）	31	Departure Angle（°）	60
Ground Clearance（mm）	≥466 /406	Number of Axles	3
Make	Weichai WP13G530E310	Number of Cylinder	6
Type	Line, Direct Injection, Water-cooling, Inter-cooling, Electric-controlled	Bore/Stroke（mm）	127/165
Rated Power(kW)	390	Min. Fuel Consumption（g/kW.h)	195.9
Rated Speed(r/min)	2100	Max. Torque（N.m)	2300
Emission load (ml)	12540	Emission Standard	StageIII GB20891-2014
Auto Gearbox FC6A250PRT	Type			planetary
	Speed Ratio	1st	4.4
		2nd	2.33
		3rd	1.53
		4th	1.00
		5th	0.72
		6th	0.61
		R1	3.97
Front Axle	Steering Axle			Welded Axle Housing
Middle-Rear Axle	Main Reduction Ratio			4.11
	Wheel Edge Reduction Ratio			4.952
	Total Reduction Ratio			20.357
Wheel	Rim			13.00/2.0-25
	Tyre			18.00R25
	Tyre Pressure（MPa）			0.8
Suspension System	Front Suspension			Leaf spring + double-acting cylinder shock absorber
	Rear Suspension			Spring + Rubber balance suspension
