Home > products > Truck Crane >
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON

RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON

Place of Origin:

China

Contact Us
Request A Quote
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON
Product Details
Showroom Location:
None
Rated Loading Capacity:
25 Ton
Max. Lifting Height:
39m
Max. Lifting Load:
45TON
Hydraulic Cylinder Brand:
Famous Brand
Hydraulic Pump Brand:
Famous Brand
Hydraulic Valve Brand:
Famous Brand
Engine Brand:
Famous Brand
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Motor, Gear, Gearbox, Engine
Weight (KG):
25000 Kg
Year:
2019
Working Hours:
2001-4000
Product Name:
Crane Truck
Lifting Capacity:
25000kg
Maximum Rated Lifting Torque:
980KN.m
Model:
RY25V
Color:
White
Type:
Mobile Truck Crane
Usage:
Construction Lifting
Maximum Operating Speed:
78km/h
Minimum Turning Radius:
11m
Maximum Climbing Grade:
37%
Port:
SHANGHAI/TIANJING/QINGDAO
Payment & Shipping Terms
Price
$19,800.00/units 1-4 units
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Outdoor Construction Goods Lifting with YUCHAI Engine 80 Ton Telescopic Arm Crane Truck online

Outdoor Construction Goods Lifting with YUCHAI Engine 80 Ton Telescopic Arm Crane Truck

Get Best Price
Good price Mobile Crane Lifting Capacity 80 Tons Telescopic Crane for Used Machinery and Trucks online

Mobile Crane Lifting Capacity 80 Tons Telescopic Crane for Used Machinery and Trucks

Get Best Price
Good price 80 Ton Truck Crane with Telescopic Hydraulic Arm in 2018 and 2001-4000 Working Hours online

80 Ton Truck Crane with Telescopic Hydraulic Arm in 2018 and 2001-4000 Working Hours

Get Best Price
Good price Looking for a Crane Lifting Machine Our 80 Ton Used Mobile Crane Truck Fits the Bill online

Looking for a Crane Lifting Machine Our 80 Ton Used Mobile Crane Truck Fits the Bill

Get Best Price
Contact Us
Contact Now
Product Description
Product Description

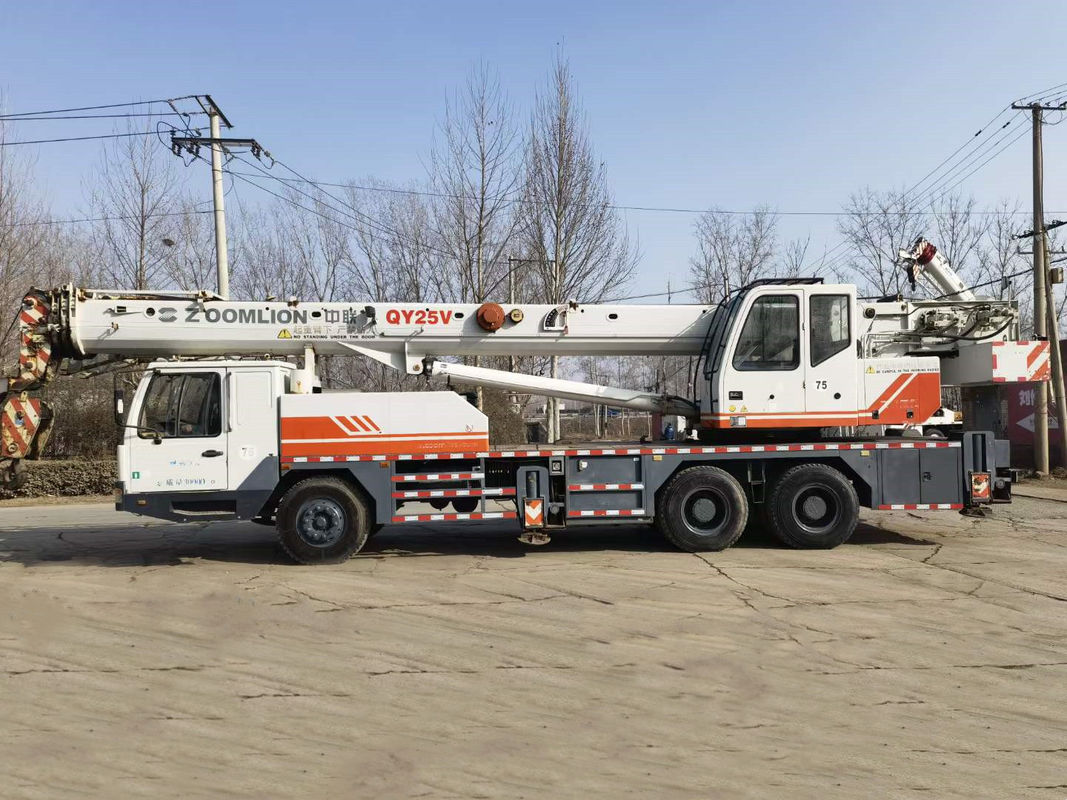

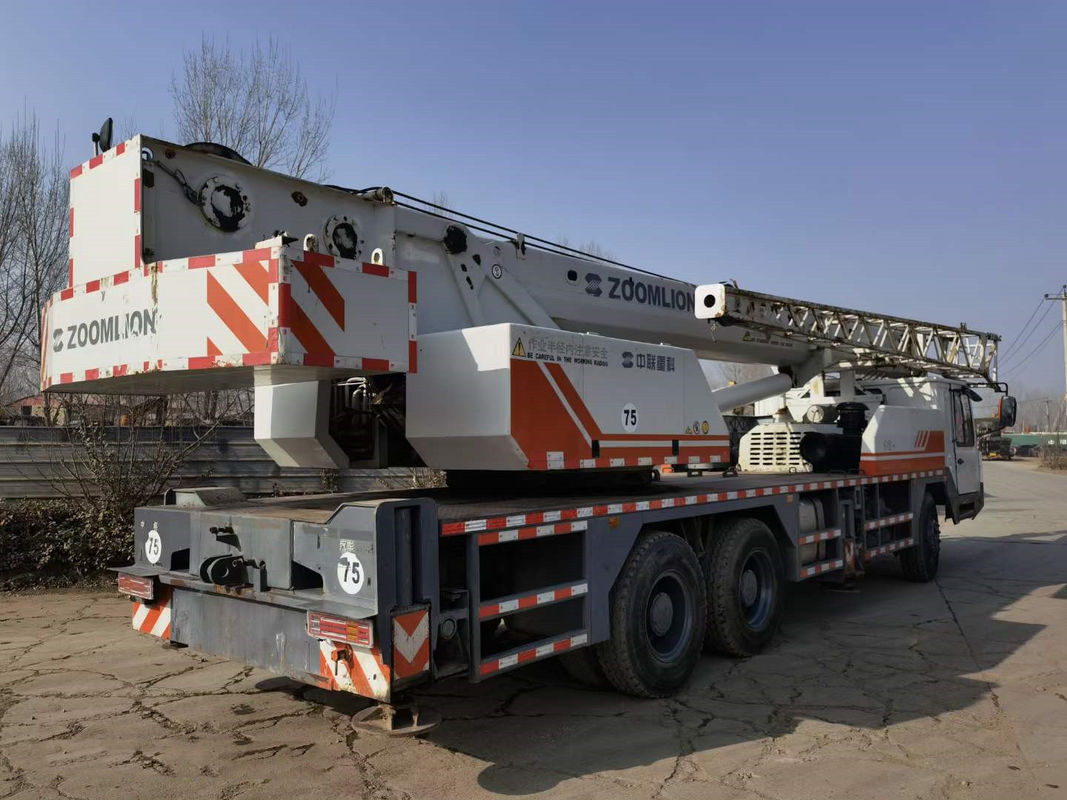

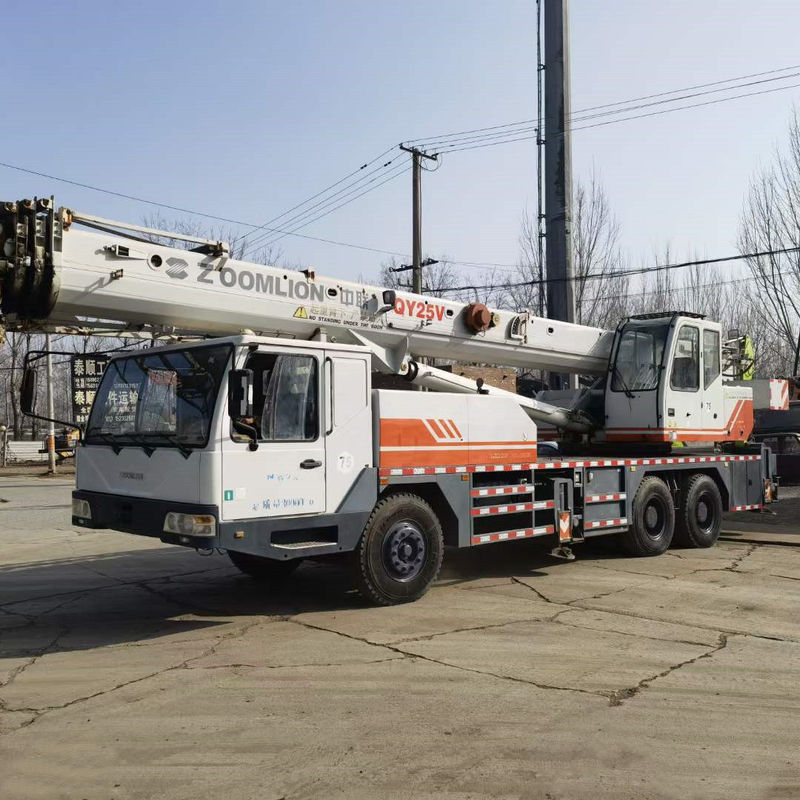

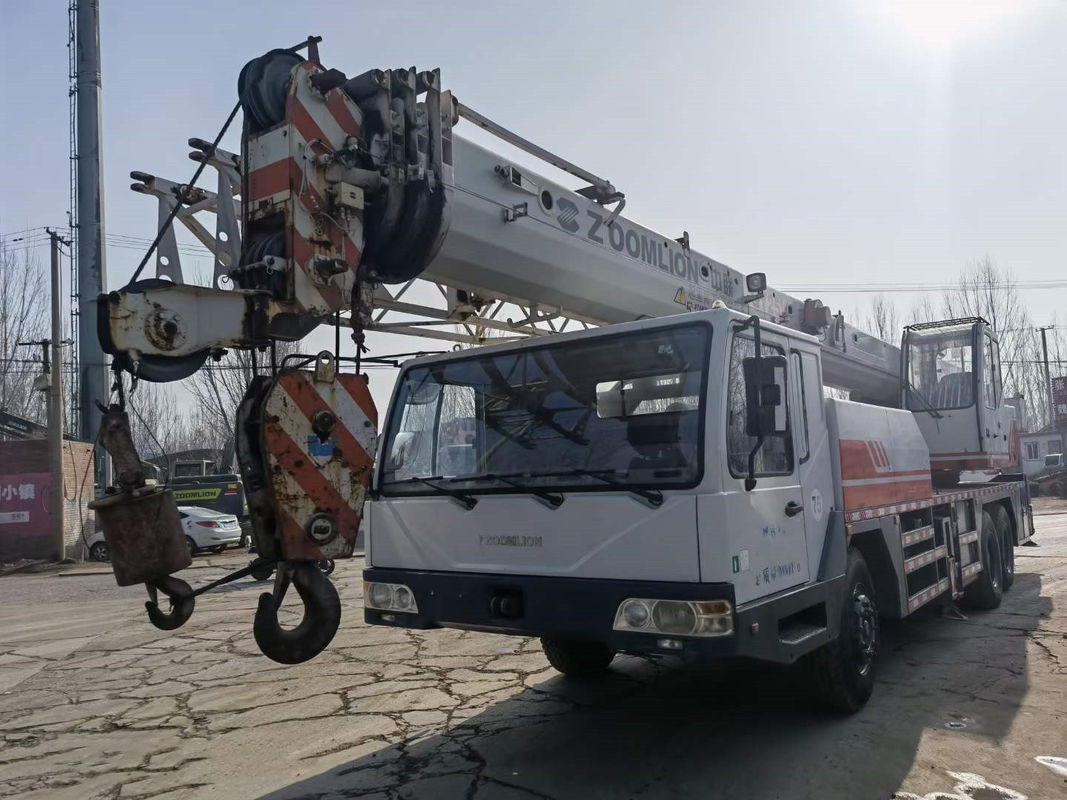

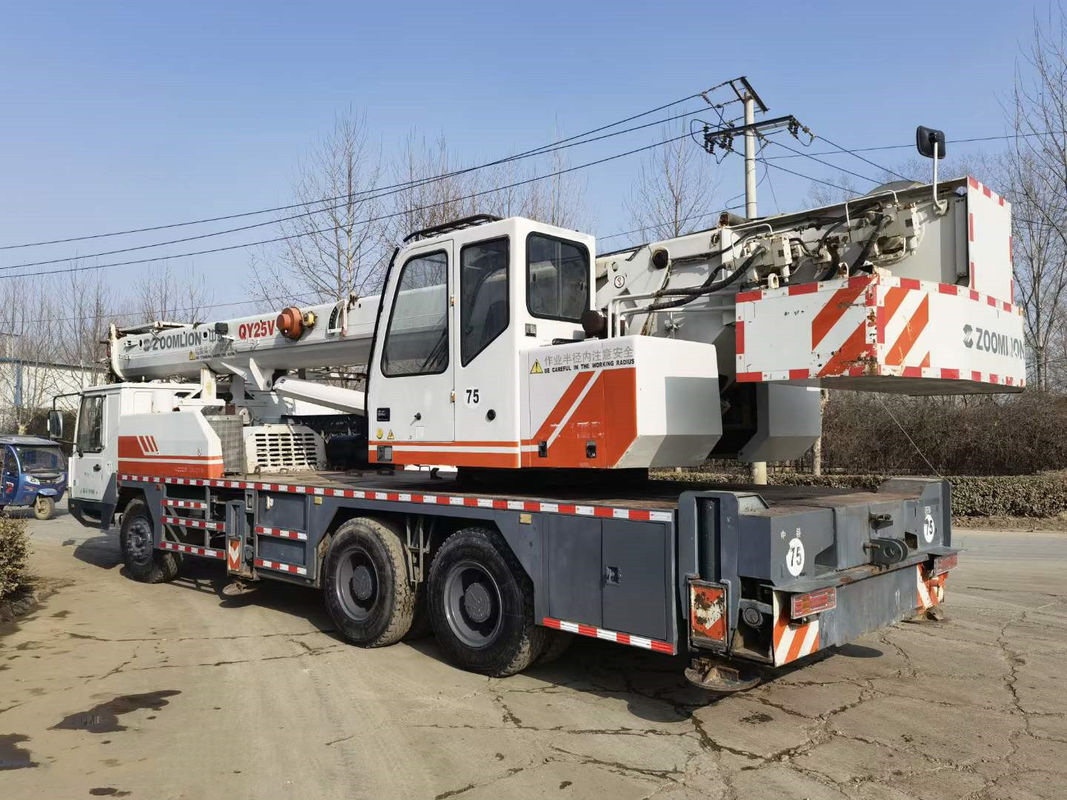

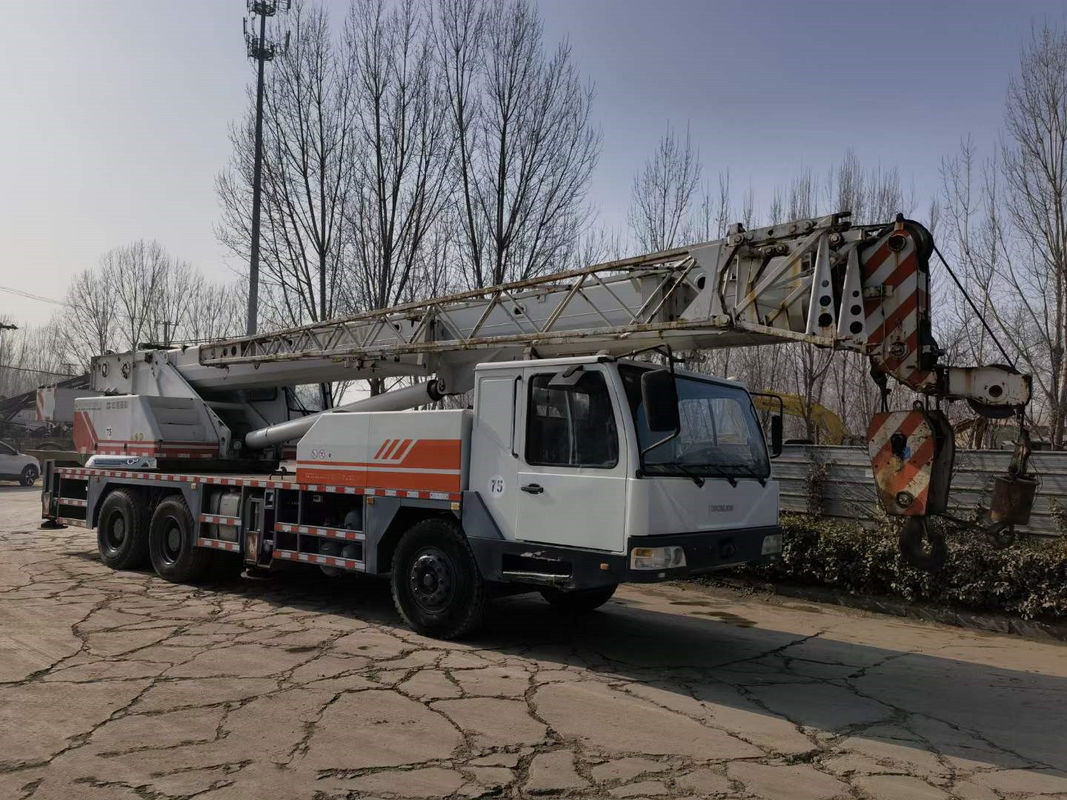

RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 0
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 1
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 2
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 3
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 4
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 5
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 6
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 7
Specification
Lifting capacity
Driving parameter
Maximum rated lifting weight (t)
25
Maximum operating speed (km/h)
78
Maximum rated lifting torque (KN.m)
980
Minimum turning radius (m)
11
Maximum rated lifting moment full jib (KN.m)
494
Maximum climbing grade (%)
37
Maximum lifting height - Basic arm (m)
11.2
Minimum ground clearance (mm)
220
Maximum lifting height - Full overhang (m)
39
Complete machine specification
Maximum lifting height - Basic arm + Auxiliary arm (m)
58.8
Complete length (mm)
12700
Maximum lifting weight (ton)
45Ton
Full width of the whole machine (mm)
2500
Operation speed parameter
Complete machine height (mm)
3500
Full extension time of boom (s)
80
Boom size
Boom amplitude changing time (s)
40
Boom Length - Full Boom (m)
10.2-39
Rotational speed (rpm)
2.2
Secondary boom length (m)
8
Our Advantages
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 8
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 9
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 10
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 11
More Products
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 12
Please click here to contact us and you will get the response you need
Company Profile
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 13
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 14
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 15
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 16
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 17
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 18
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 19
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 20
RY25V 39m Hydraulic Arm Crane 25 Ton Used Crane Trucks White Max. Lifting Load 45TON 21
