Place of Origin:
Shandong, China
Brand Name:
SINOTRUCK
Truck Model | 6x4 | ||||
Truck Brand | SINOTRUCK –HOWO | ||||
Dimension(Lx W xH)（unloaded）（mm） | 8245x2550x3450 mm | ||||
Cargo body size (L*W*H) | 5400 x 2300 x 1500 mm | ||||
Cargo body thickness(mm) | bottom:8mm, side:6mm | ||||
Lift type of Carriage | Front or Central lifting | ||||
Approaching angle/Departure angle（°） | 19/23 | ||||
Overhang(front/rear) (mm) | 1500/1870 | ||||
Wheel base (mm) | 3625+1350 | ||||
Max speed（km/h） | 75 | ||||
Curb weight（kg） | 12600 | ||||
Loading Weight（kg） | 25000 | ||||
Fuel tanker capacity(L) | 300L with locking fuel cap | ||||
Clutch | Single-plate dry clutch Φ430mm | ||||
Engine Model (Steyr technology, made in China) | Model | WD615.47，4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling | |||
Horse Power | 371HP, 9.726L | ||||
Emission | EURO II | ||||
Fuel Type | Diesel | ||||
Transmission | Model | HW19710,10 forwards and 2 reverse | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Auxiliary brake | Engine exhaust brake | ||||
Steering system | Model | hydraulic steering with power assistance Ratio：22.2-26.2 | |||
Front axle | HF9 Loading capacity:9000KG | ||||
Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg | ||||
Color | Optional | ||||
Tire | 12.00R 20.00 10+1 | ||||

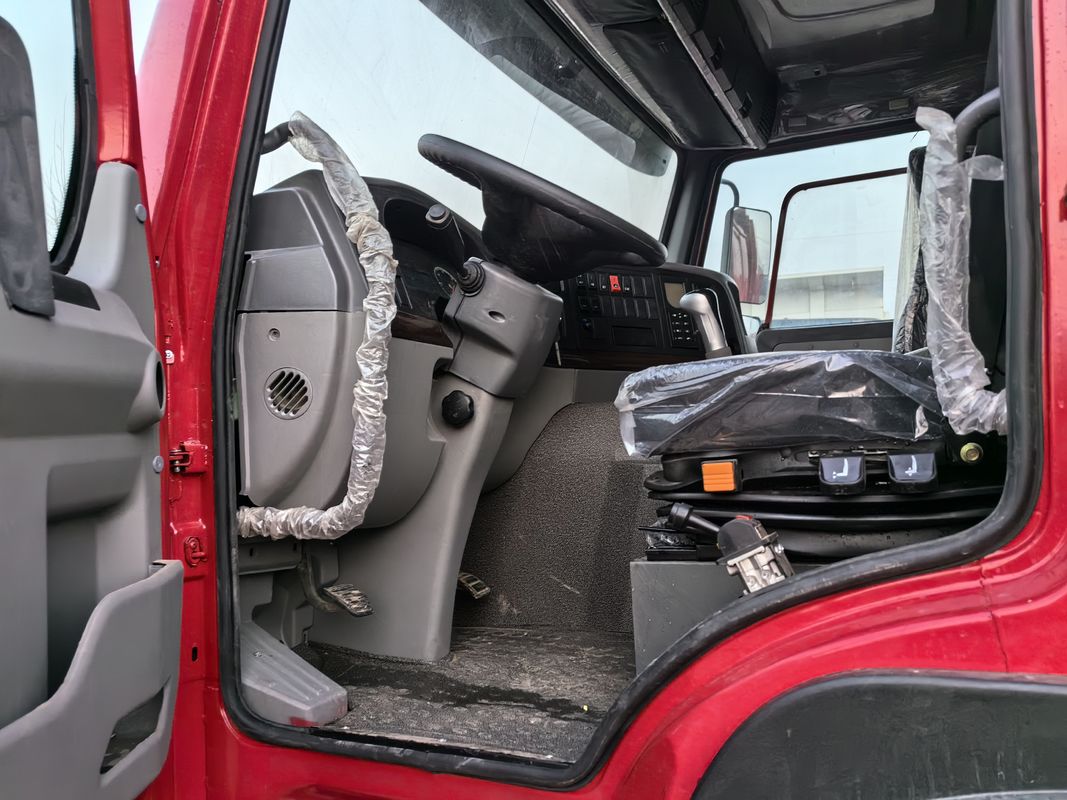

Cab | HOWO76 cab | ||||
