380HP Shacman F3000 8X4 12 tyres 40 ton Used Dumper Tipper Truck with 10 Forward Shift

Place of Origin:

Shandong

Request A Quote

380HP Shacman F3000 8X4 12 tyres 40 ton Used Dumper Tipper Truck with 10 Forward Shift

Product Details

Condition:

Used

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 2

Segement:

Heavy Truck

Market Segement:

Urban Construction Muck Transportation

Engine Brand:

WEICHAI

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

1500-2000Nm

Cargo Tank Dimension:

7600 X 2300 X1500 Mm

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

≥30T

Drive Wheel:

8X4

Passengers:

Rear Camera:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Tire Number:

After-sales Service Provided:

None

Brand:

Shacman

Driving Type:

8x4 Left Hand Driving

Color:

Red

Gearbox:

SINO TRUCK

Fuel Type:

Diesel

Window:

Manual

Tire:

12+1

Fuel Tank:

400L

Rear Axle:

Man 16 X2

Transmission Type:

Manual

Payment & Shipping Terms

Price

$21,500.00/units 1-4 units

Packaging Details

Bulk ship

Supply Ability

4000 Unit/Units per Year

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

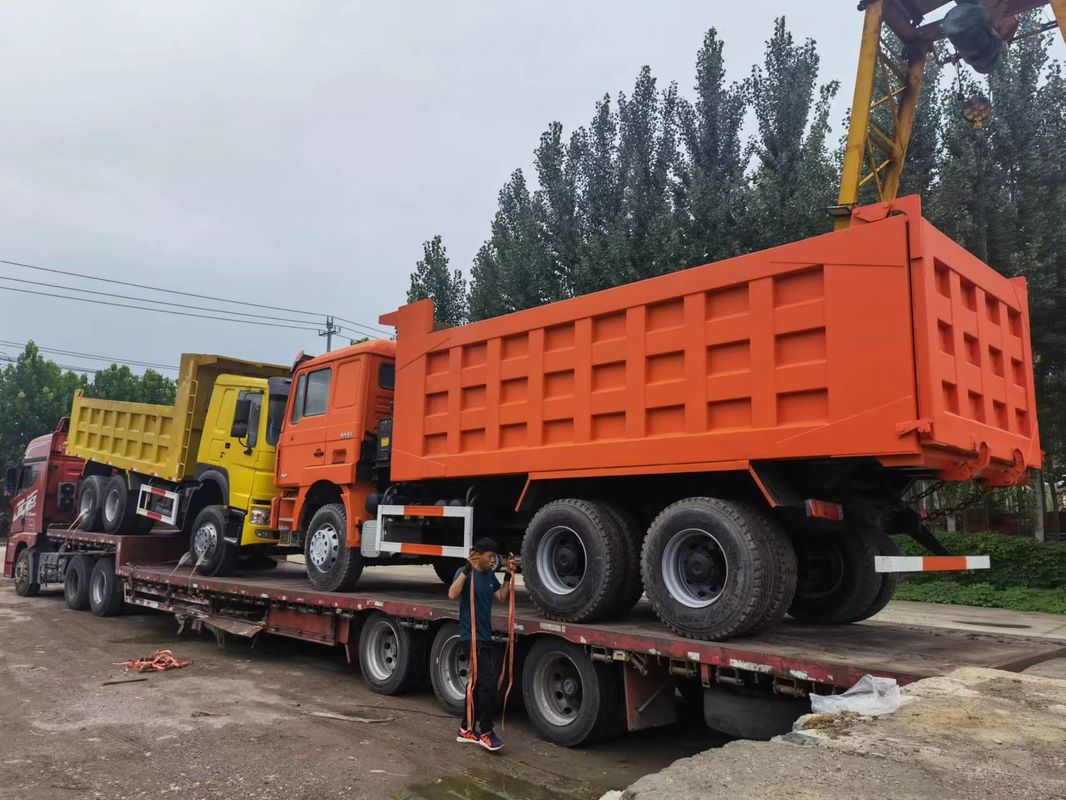

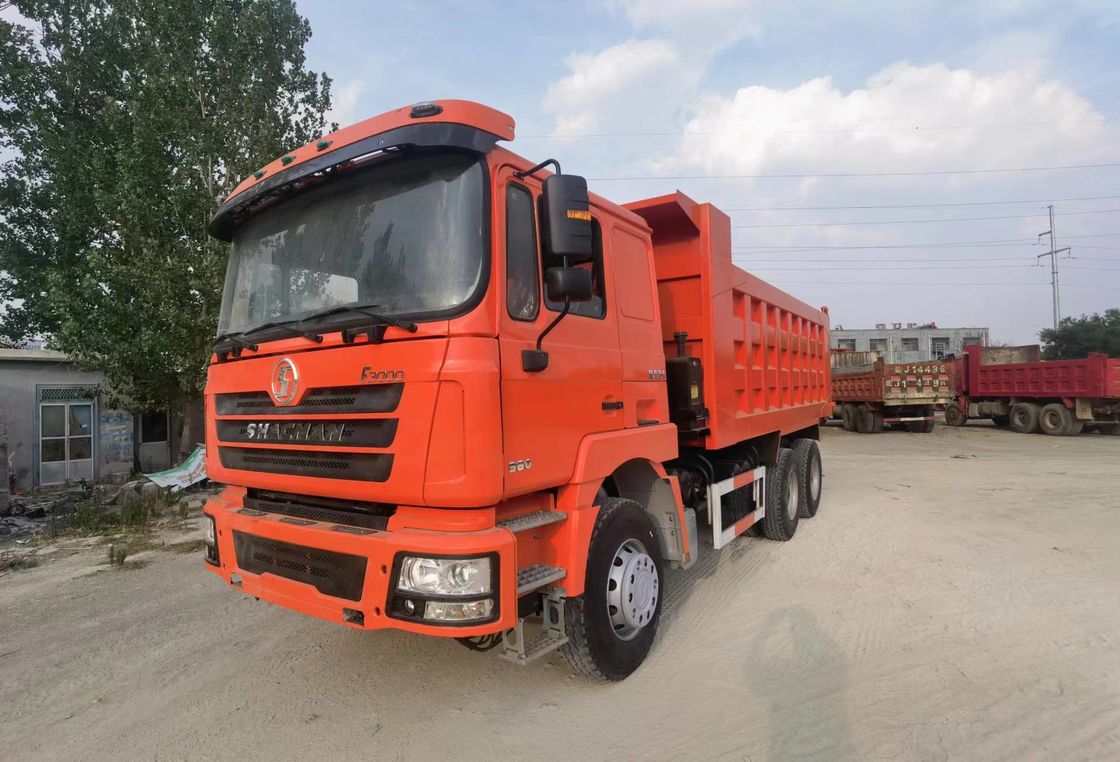

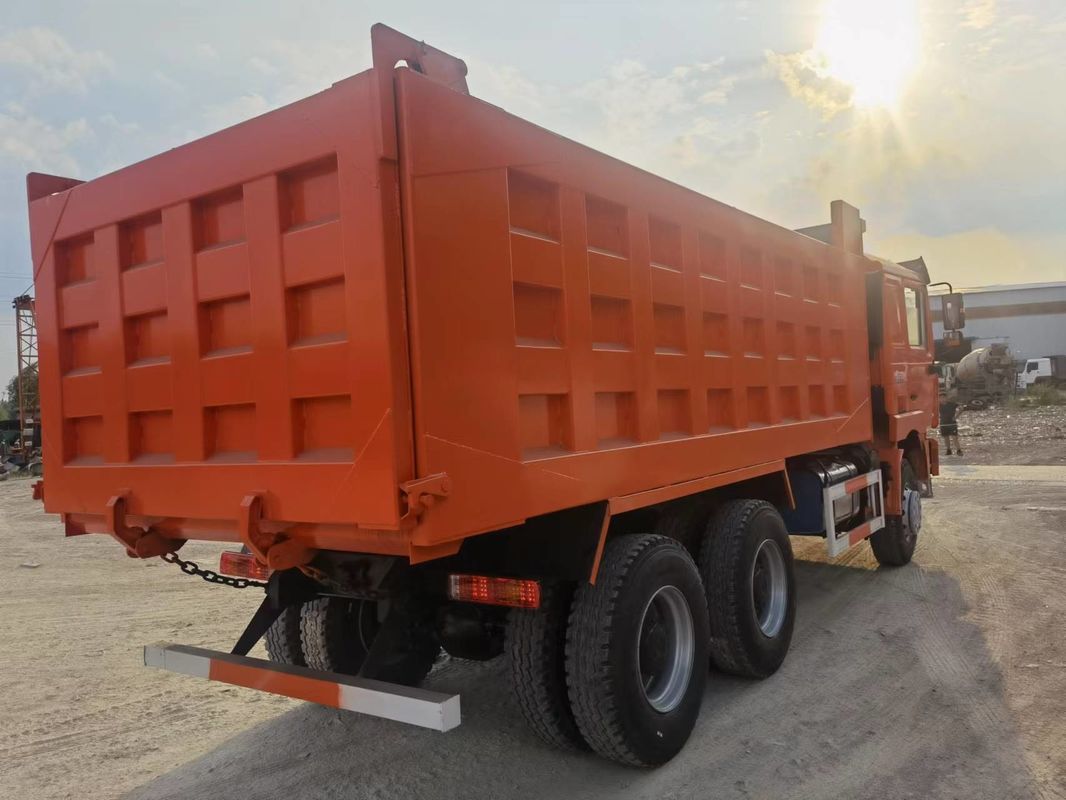

Shacman 8X4 Dump Truck

1) WECHAI 400 HP Engine

2) MAN Technolodgy Axles

3) Stong , Effecient and Heavy Load

Details Images

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

Product Paramenters

Max. running speed (km/h) 最高车速				82
Drive System 驱动形式				8×4
Dimensions （LWH）(mm)		Overall 外部尺寸	10635×2490×3790
		Dump body 内部尺寸	7800×2300×1500+200
Thickness (mm) 厚度				Bottom 12, side 8 底12边8
Hydraulic lifting system 液压举升系统				Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角				28 / 20
Kerb weight (kg)自重				15500
Total mass (kg)总重				31000
Wheel base (mm) 轴距				1800+3575+1400
Engine 发动机				WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力欧2排放
Horsepower 马力				400 hp
Gearbox 变速箱				FAST 10JSD180,法士特10档变速箱
Clutch 离合器				Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机				ZF technology
Cab 驾驶室				F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺
Axle 桥	Front axle前轴		9.5T MAN
	Rear axle 后桥		16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）				12.00R20（12+1 备胎）
Oil tank 油箱				300L(Metal) 300L金属油箱
