Heavy Duty Truck Manual Transmission Chinese Guaranteed 1800 3225 1350mm Wheelbas

Place of Origin:

China

Brand Name:

SINOTRUCK

Request A Quote

Heavy Duty Truck Manual Transmission Chinese Guaranteed 1800 3225 1350mm Wheelbas

Product Details

Condition:

Used

Steering:

Left

Horsepower:

451 - 500hp

Emission Standard:

Euro 6

Year:

2012

Make:

Howo

Segement:

Heavy Truck

Market Segement:

Engineering Transportation

Engine Brand:

Cummins

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

SINOTRUCK

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

2000-2500Nm

Dimensions (L X W X H) (mm):

9.63x2.55x3.45m

Cargo Tank Dimension:

6.5x2.35x1.5m

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

15-20T

Capacity (Load):

11 - 20T

Fuel Tank Capacity:

400-500L

Drive Wheel:

8X4

Passengers:

Driver's Seat:

Air Suspension

Rear Camera:

Camera

Cruise Control:

Normal

ABS(Antilock Braking System):

Yes

ESC(Electronic Stability Control System):

Yes

Touch Screen:

Yes

Multimedia System:

Yes

Window:

Automatic

Air Conditioner:

Automatic

Tire Number:

After-sales Service Provided:

Video Technical Support, Overseas Call Centers, Return And Replacement, Online Support, Free Spare Parts, Field Maintenance And Repair Service

Brand:

SINOTUK HOWO

Driving Type:

8*4 LHD/RHD

Color:

Customer's Request

Loading Capacity:

31 Tons

Engine:

460HP

Application:

Construction Industry

Displacement:

11.6 L

Wheelbase:

1800+3225+1350mm

Fuel Tank Material:

Aluminium Alloy

Container Form:

Self-discharging Type

Payment & Shipping Terms

Price

$17,567.40/units 1-2 units

Supply Ability

5000 Unit/Units per Quarter

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

Refurbished standard:

1.New cab interior, includes the seats, bed 2.New tyres.12+1 spare tires

3.new dump bucket.
4.New oil filter, fuel filter, air filters ,New engine oil & gearbox oil

5.New batteries

6.Good maintenance on the engine, gearbox, axles.

7.New painting.anti-rust paint on the chassis And so on

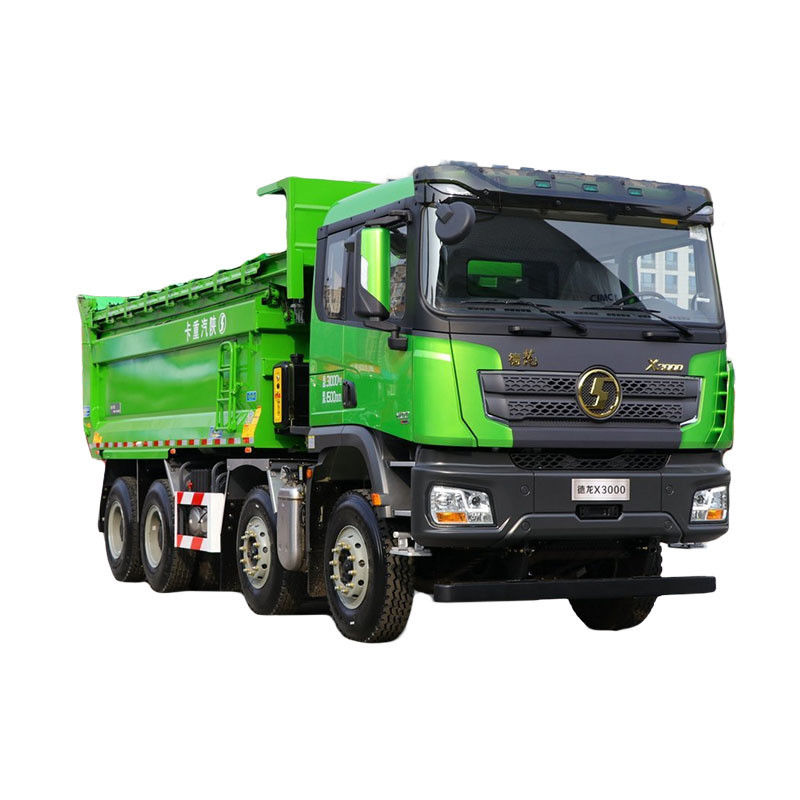

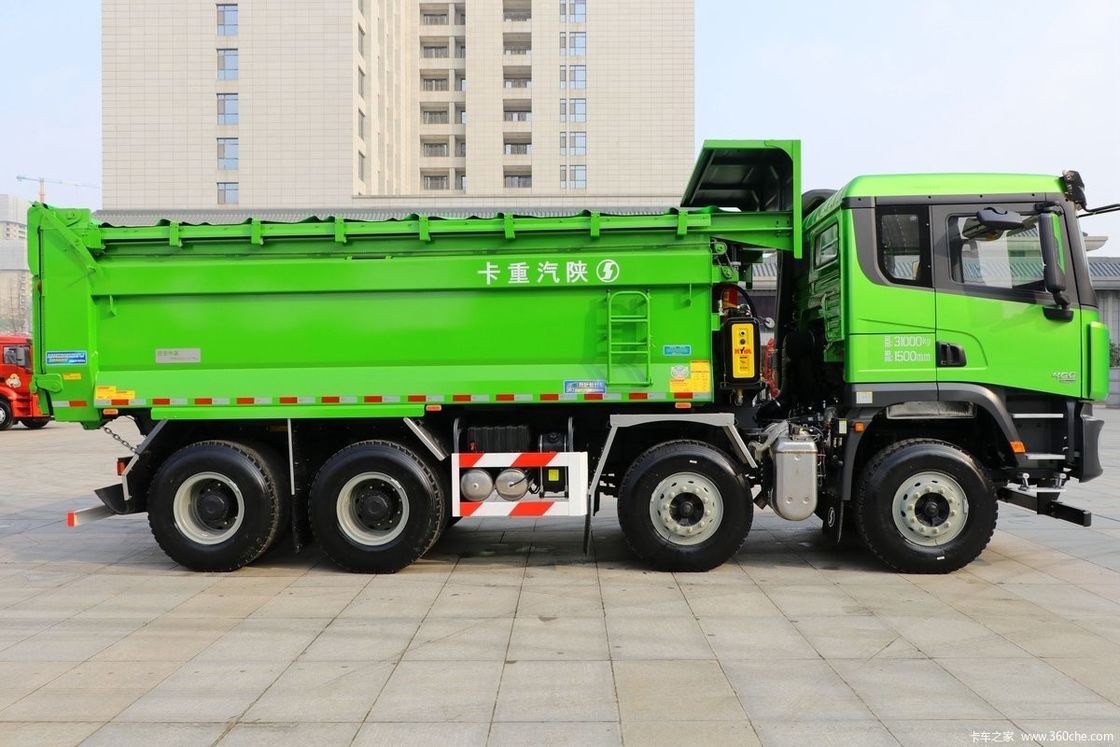

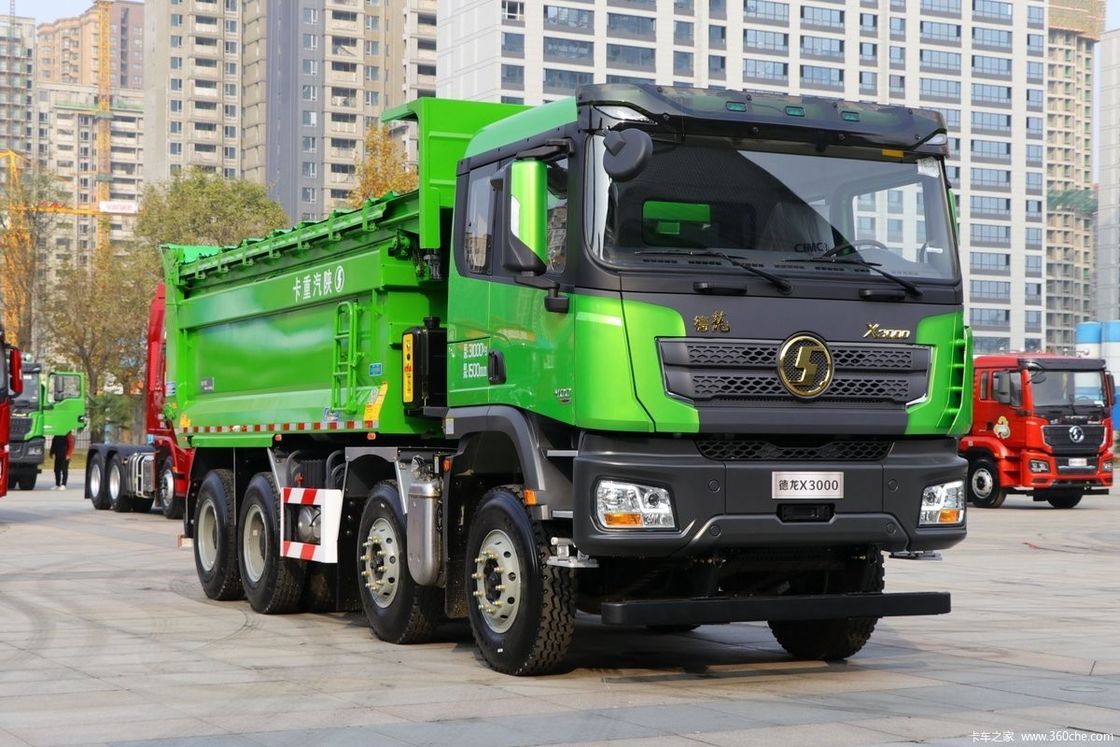

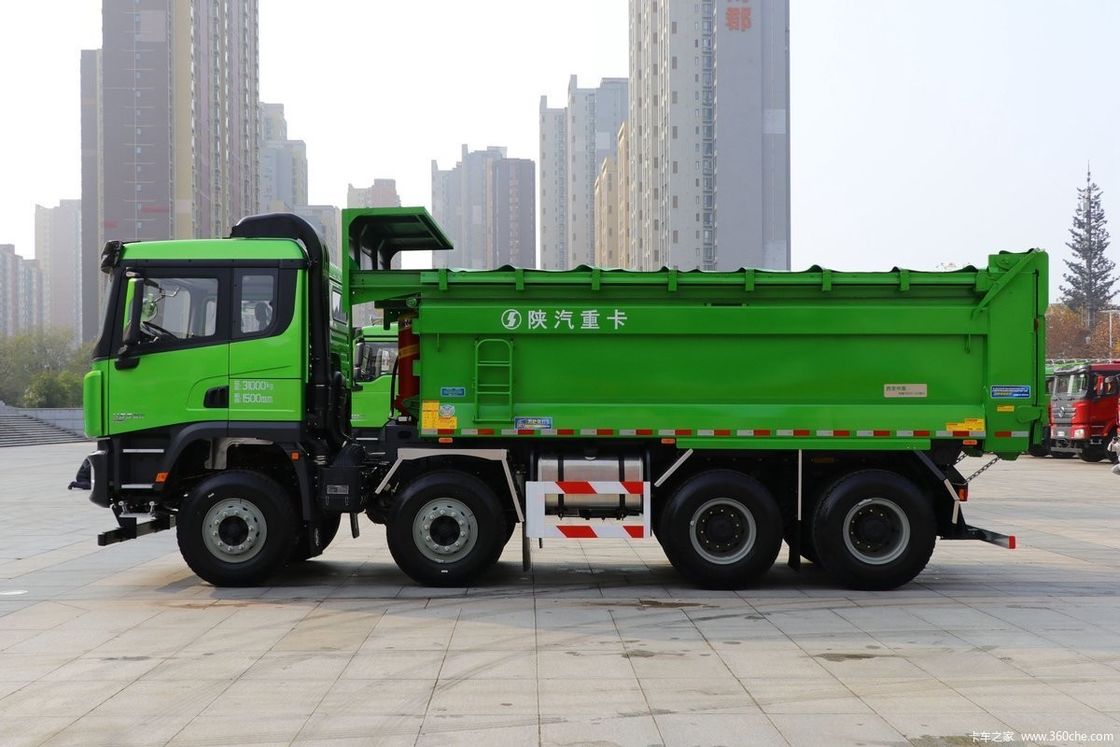

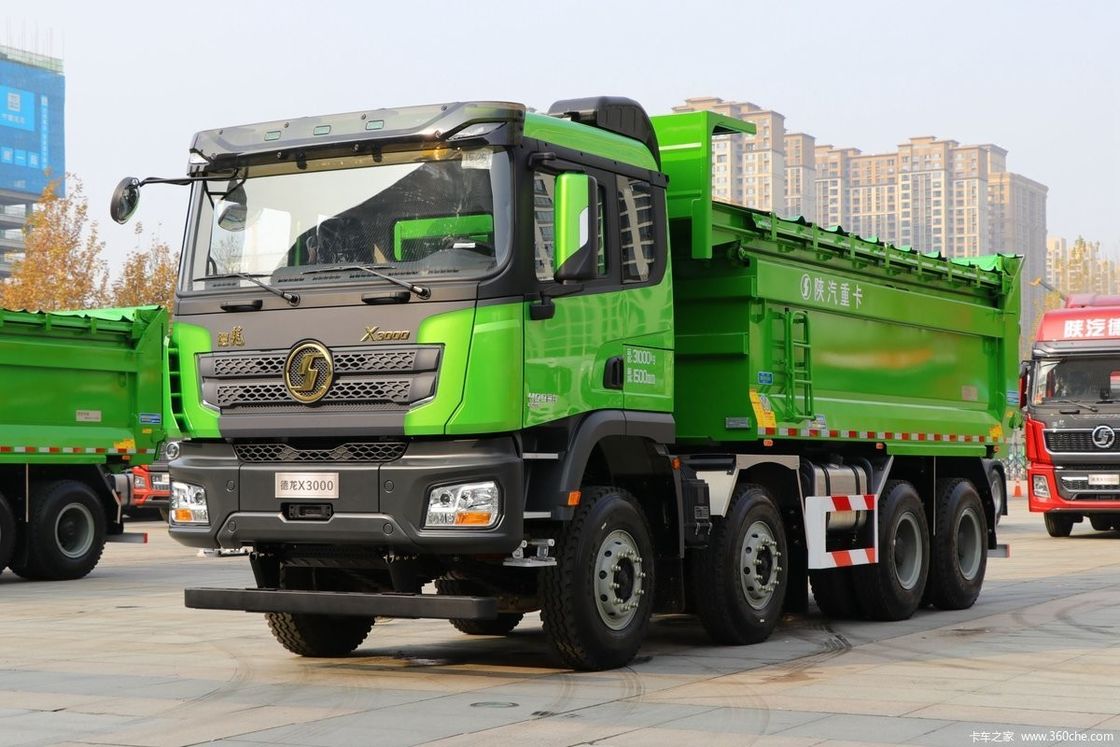

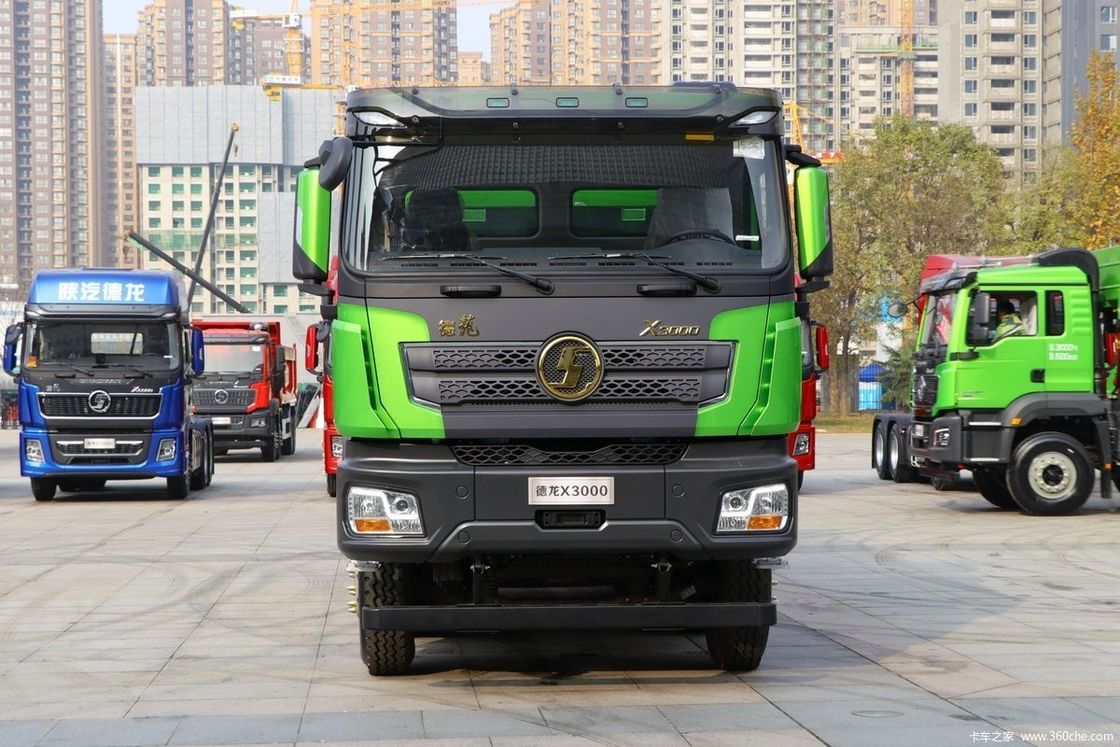

Details Images

Product Paramenters

Driving form:	8X4
Wheelbase:	1800+3225+1350mm
Body size:	9.63x2.55x3.45m
Front wheel base:	2022/2022mm
Rear wheel base:	1860/1860mm
Vehicle weight:	15.5 tons
Rated load:	15.37 tons
Total mass:	31 tons
Tonnage class:	Heavy truck
Approach Angle:	17 degrees
Departure Angle:	21 degrees
Engine brand:	Weichai
Number of cylinders:	6
Type of fuel:	Diesel oil
Displacement:	11.6 L
Emission standard:	Six kingdoms
Maximum horsepower:	460hp
Maximum output power:	338kW
Maximum torque:	2200 n. m
Maximum torque speed:	1000-1400rpm
Rated speed:	1900rpm
Engine form:	CR+DOC+DPF+Hi_SCR
Container size:	6.5x2.35x1.5m
Container form:	Self-discharging type
Main driving seat form:	Airbag cushioning seat
Transmission model:	Sinotruk HW25712XSL
Transmission brand:	Sinotruk
Forward gear:	12th gear
Number of reversals:	2
Fuel tank material:	Aluminium alloy
Tank capacity:	400L
Allowable load of front axle:	6500/7000kg
Rear axle allowable load:	17500(biaxial group)kg
Number of spring pieces:	2011/11/12
Tire specifications:	12.00R20 18PR
Number of tires:	12
