ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton

Place of Origin:

SHANGDONG

Brand Name:

LGMG

Contact Us
Request A Quote
ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton
Product Details
Condition:
New
Steering:
Left
Horsepower:
451 - 500hp
Emission Standard:
Euro 3
Segement:
Heavy Truck
Market Segement:
Mining Transportation
Engine Brand:
WEICHAI
Fuel Type:
Diesel
Engine Capacity:
> 8L
Cylinders:
6
Gear Box Brand:
FAST
Transmission Type:
Manual
Forward Shift Number:
10
Reverse Shift Number:
2
Maximum Torque(Nm):
≥2500Nm
Dimensions (L X W X H) (mm):
8.45*2.5*3.4
Cargo Tank Dimension:
5.8*2.5*1.7
Cargo Tank Length:
5.3-6.2M
Gross Vehicle Weight:
25-30T
Capacity (Load):
> 50T
Fuel Tank Capacity:
500-600L
Drive Wheel:
6x4
Passengers:
3
Driver's Seat:
Normal
Rear Camera:
None
Cruise Control:
None
ABS(Antilock Braking System):
None
ESC(Electronic Stability Control System):
None
Touch Screen:
None
Multimedia System:
None
Window:
Manual
Air Conditioner:
Manual
Tire Number:
10
After-sales Service Provided:
Video Technical Support, Online Support
Model No.:
MT86 MT106
Curb Weight (ton):
23
Cargo Box Volume (m3):
26 (5.9*3.2*1.5)
Max. Gradbility:
34%
Engine:
WP13G530 530HP
Gearbox:
FAST 8DS240C
Loading Capacity:
60-70 Ton
Tire:
14.00R25
Fuel Tank:
530L
Overall Dimension(LXWXH)(mm):
9070 X 3550 X 3960
Payment & Shipping Terms
Price
$60,160.00/units 1-2 units
Packaging Details
Bulk ship
Supply Ability
100 Unit/Units per Month
RELATED PRODUCTS
Good price None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction online

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price
Good price 15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera online

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price
Good price 20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L online

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price
Good price 6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used online

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price
Contact Us
Contact Now
Product Description
Product Video
Products Description
ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 0
Efficient, reliable, economic, safe, comfortable, SMART

● Through the perfect combination of wide body car and rigid mine car, a cost-effective mine car designed for carrying large-scale open pit mines with heavy demand and bad working conditions
● The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
● Full hydraulic steering, better comfort than mechanical steering
● Adopt all-wheel dry-type caliper brake, cylinder and exhaust assist brake, improving the safety of the whole machine.

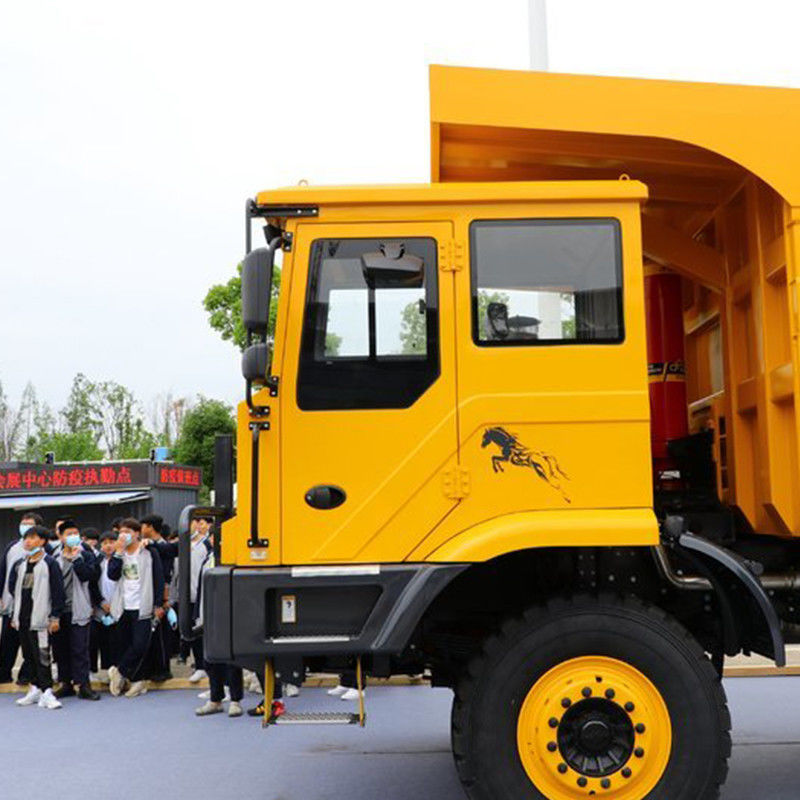

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 1

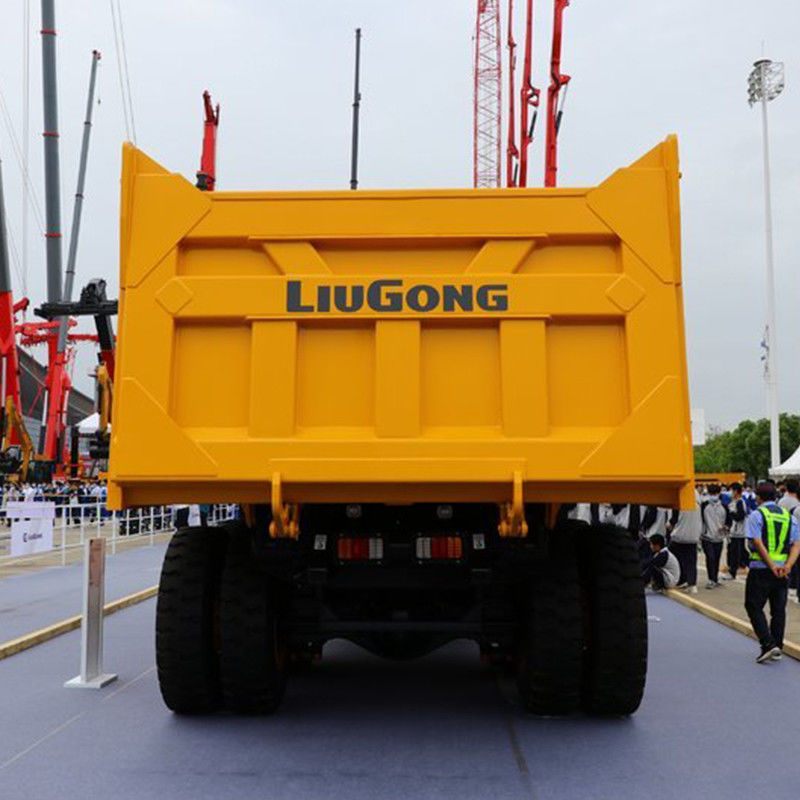

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 2

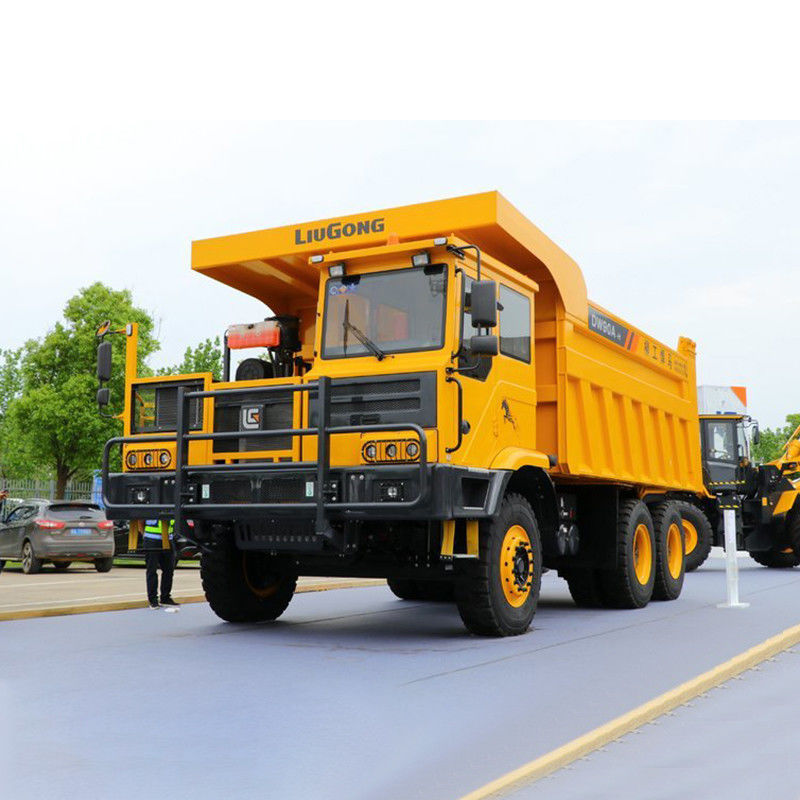

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 3
Details Images

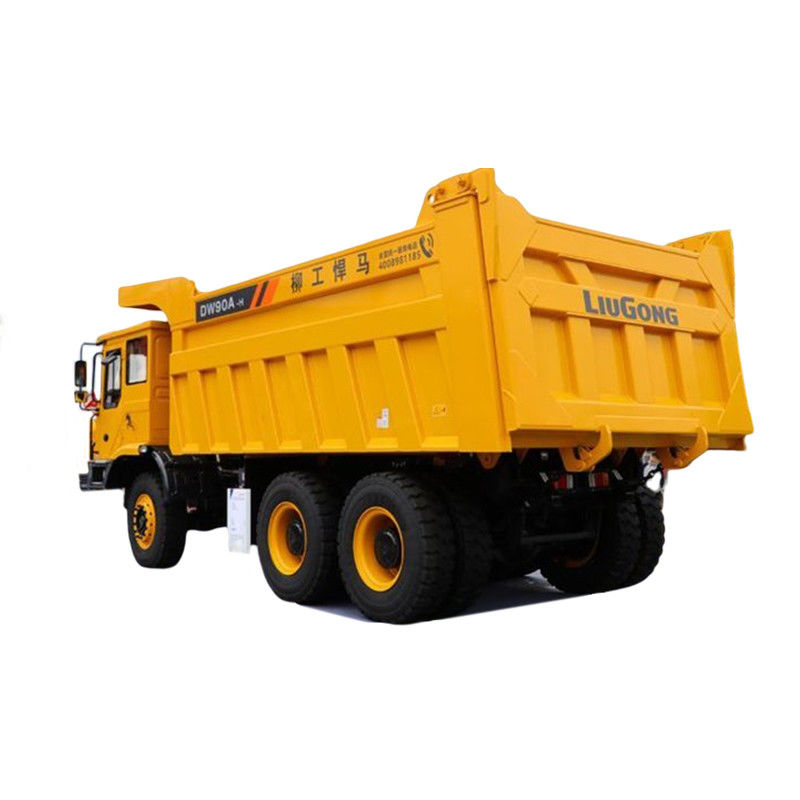

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 4

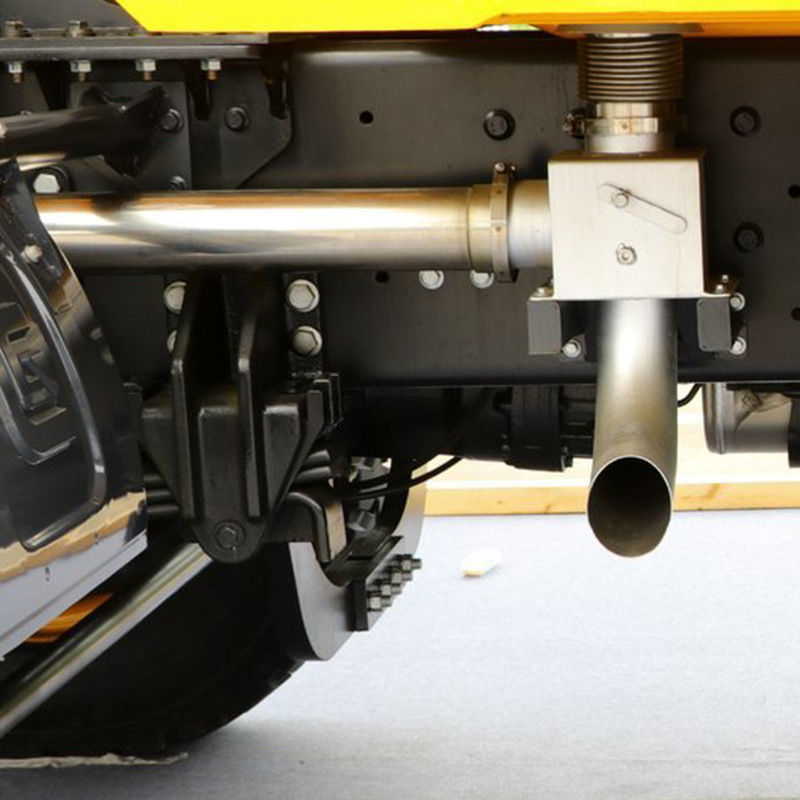

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 5

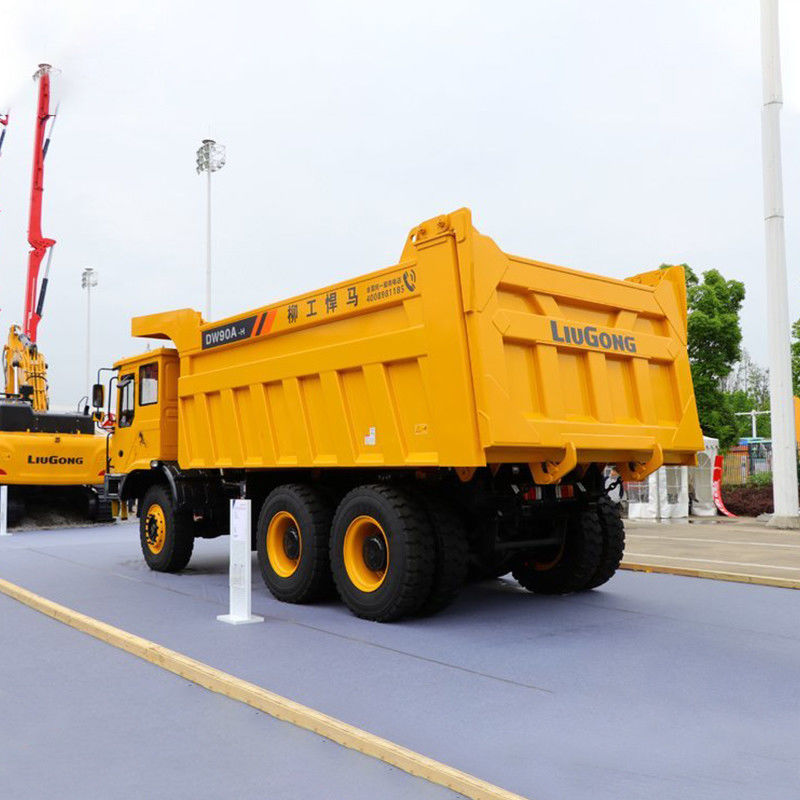

ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 6
ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 7
Product Paramenters
Model No.
MT60
Curb Weight (ton)
23
Payload (ton)
50
Cargo Box Volume (m3)
Baffled box
26 (5.9*3.2*1.5)
bottom flange 16mm（NM400）+side flange 10mm (T700)
Max. Gradbility
34%
Max. Speed, km/h
Full loade
44
Empty load
44
Axle Payload (KG)
Front Axle
18000
Middle and rear Axle
25000+25000
Overall Dimension (mm)
8720×3300×3960
Axle Numbers
3
Tread (mm)
Front
2470
Middle+ Rear
2252
Approaching Angle
27°
Departure Angle
43°
Min. Ground Clearance (mm)
362
Wheel Base ( mm)
3625+1450+1450
Engine
Model No.
WEICHAI WD12.420
Emission
Euro II
Cylinder Number
6
Power (HP)
420
Max. Torque (N.m)
1750
Rated Rotation speed (r/min)
2200
Displacement (ml)
11,596
Clutch
Type
single-plate ,dry type，Hydraulic remote control
Friction Plate(OD/ID)(mm)
430/242
Gearbox 7DS200
Model No.
FAST 7DS200
Gear
7 Forward,1 Reverse
ABS None Mining Tipper TM65 65 Ton Heavy Duty Off Road Truck Rated Payload 42 Ton 8
