Name: Shacman X3000 Used Heavy Duty Dump Truck 8x4 460hp 40ton 12 Wheels for Transportation
Brand: Shacman
SKU: Shacman
Price: 6 USD
Availability: InStock
Rating: 5 (133 reviews)

Home > products > Construction Dump Truck >

Shacman X3000 Used Heavy Duty Dump Truck 8x4 460hp 40ton 12 Wheels for Transportation

Place of Origin:

China

Brand Name:

Shacman

Request A Quote

Product Details

Condition:

Used

Steering:

Left

Horsepower:

451 - 500hp

Emission Standard:

Euro 3

Segement:

Heavy Truck

Market Segement:

Urban Construction Muck Transportation

Engine Brand:

WEICHAI

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

FAST

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

2000-2500Nm

Dimensions (L X W X H) (mm):

10.95*2.55*3.5m

Cargo Tank Dimension:

8*2.35*1.5m

Cargo Tank Length:

≥8m

Gross Vehicle Weight:

≥30T

Capacity (Load):

11 - 20T

Fuel Tank Capacity:

500-600L

Drive Wheel:

8X4

Passengers:

Rear Camera:

Camera

ABS(Antilock Braking System):

Yes

ESC(Electronic Stability Control System):

Yes

Touch Screen:

Yes

Tire Number:

After-sales Service Provided:

Overseas Call Centers, Online Support

Brand:

Shacman Brand

G.V.W.:

31T

Rated Weight:

15T

Engine Model:

WEICHAI WP12.460E62

Driving Mode:

8*4

Displacement:

11.6L

Horse Power:

460hp

Gearbox:

FAST 12JSXD240T

Ratio:

5.26

Tire:

12.00R20 18PR,11.00R20 18PR,12R22.5 18PR

Payment & Shipping Terms

Price

$6,500.00/units 1-9 units

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

Shacman 8X4 Dump Truck

1) WECHAI 460 HP Engine

2) MAN Technolodgy Axles

3) Stong , Effecient and Heavy Load

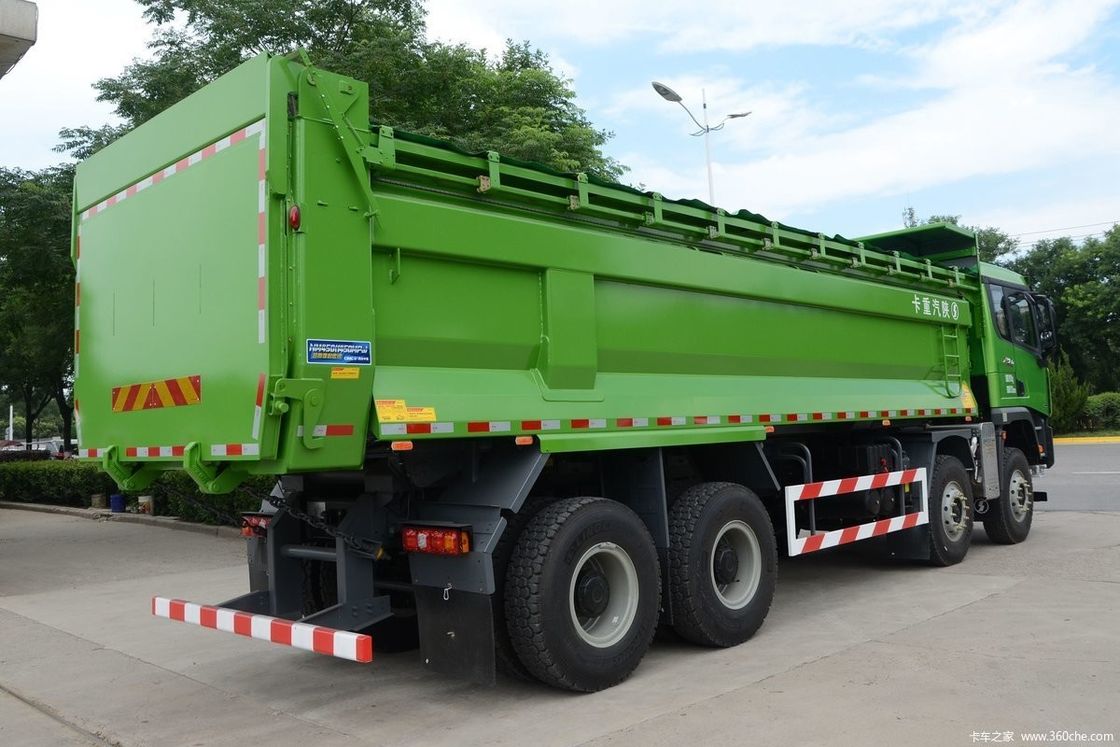

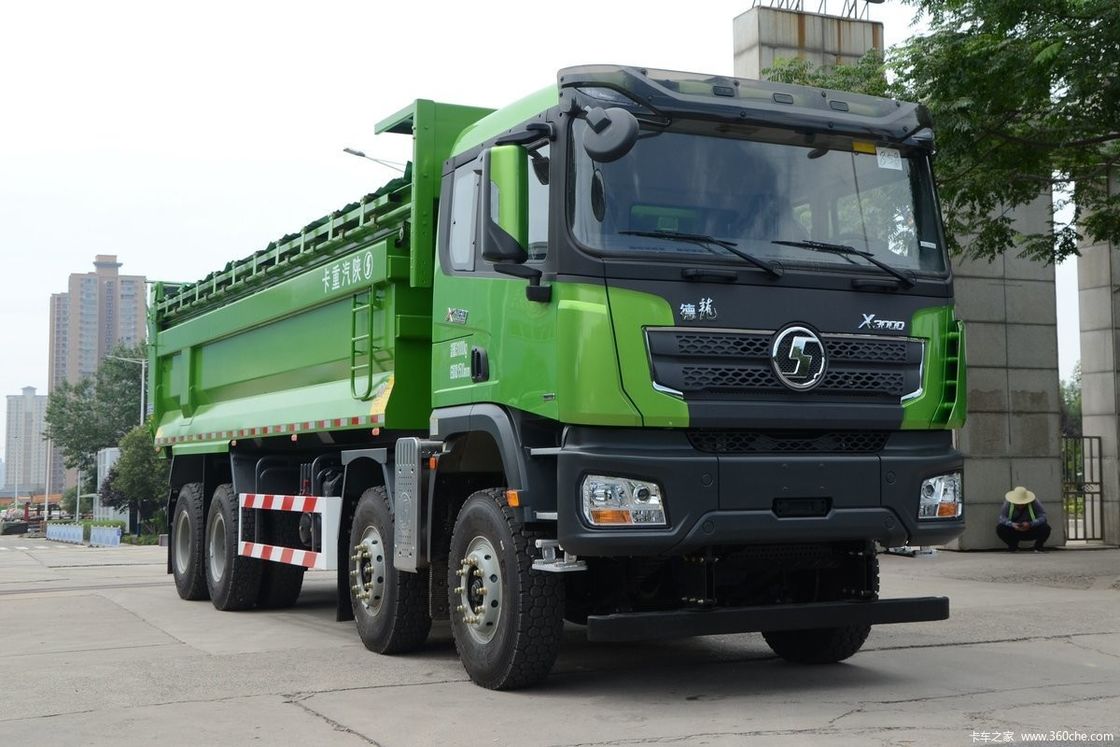

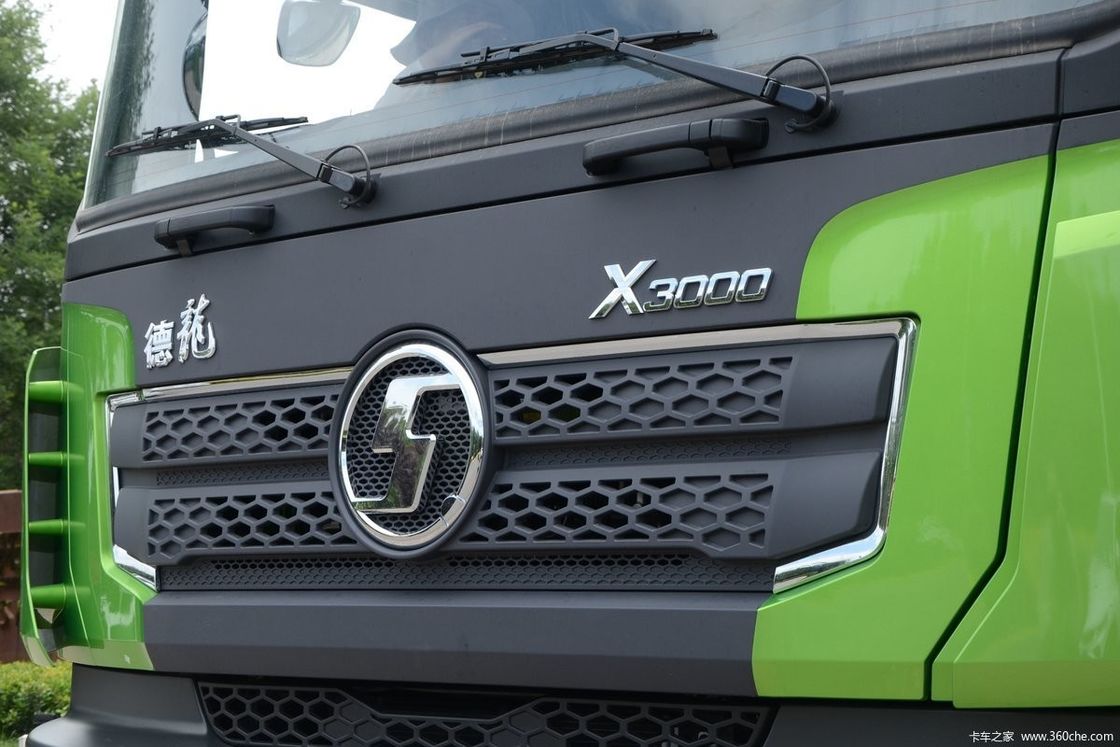

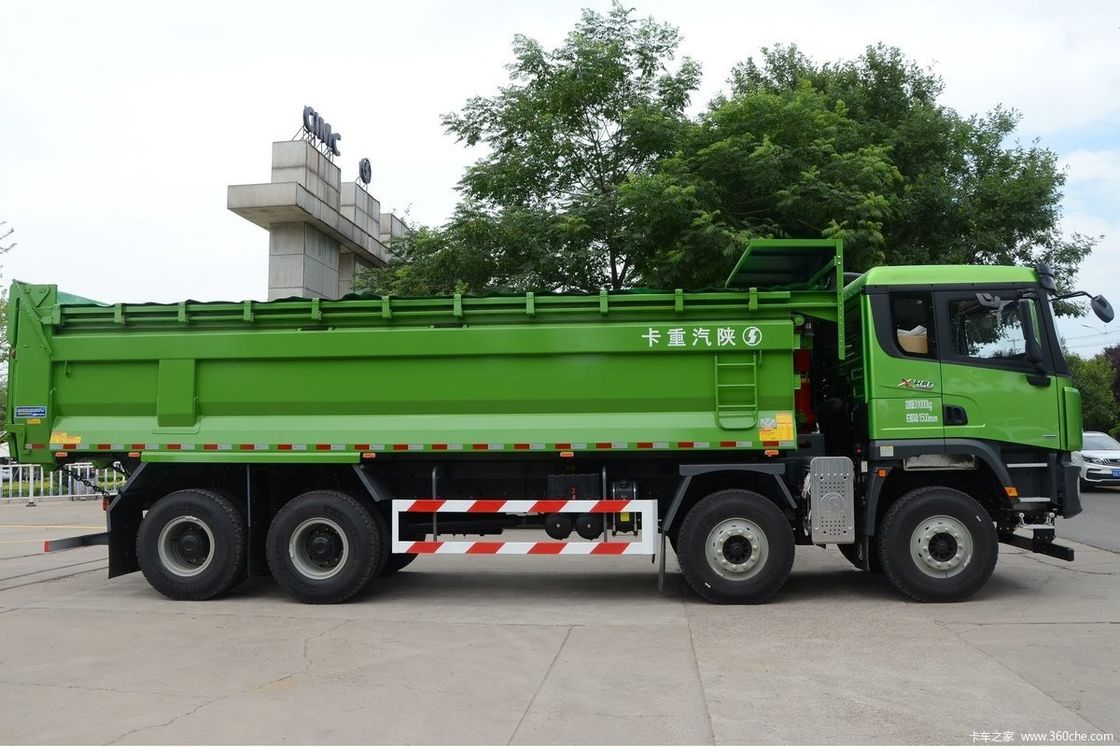

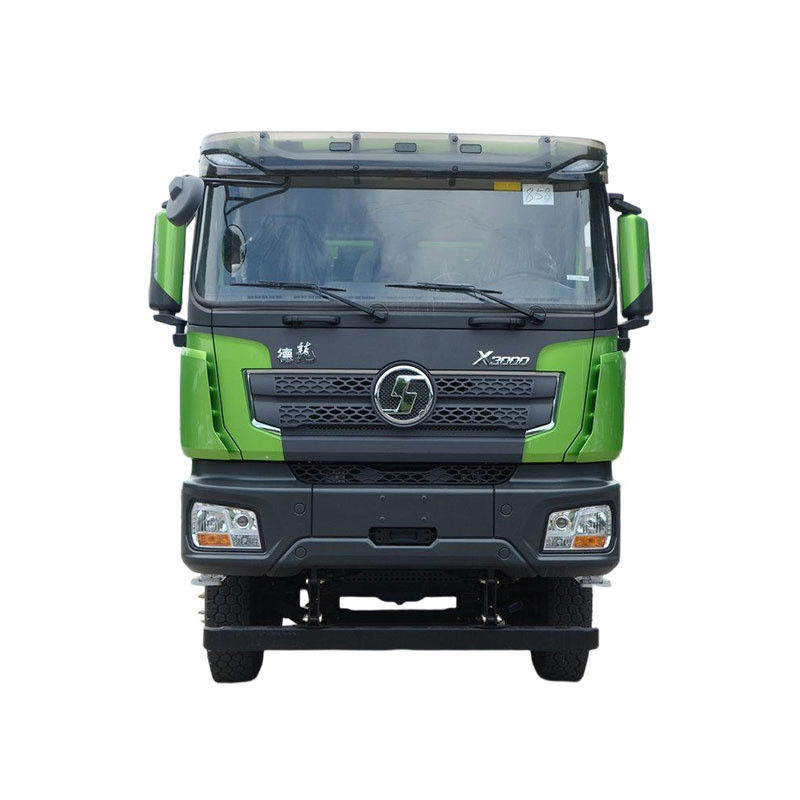

Details Images

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate, More strong anti-weight.

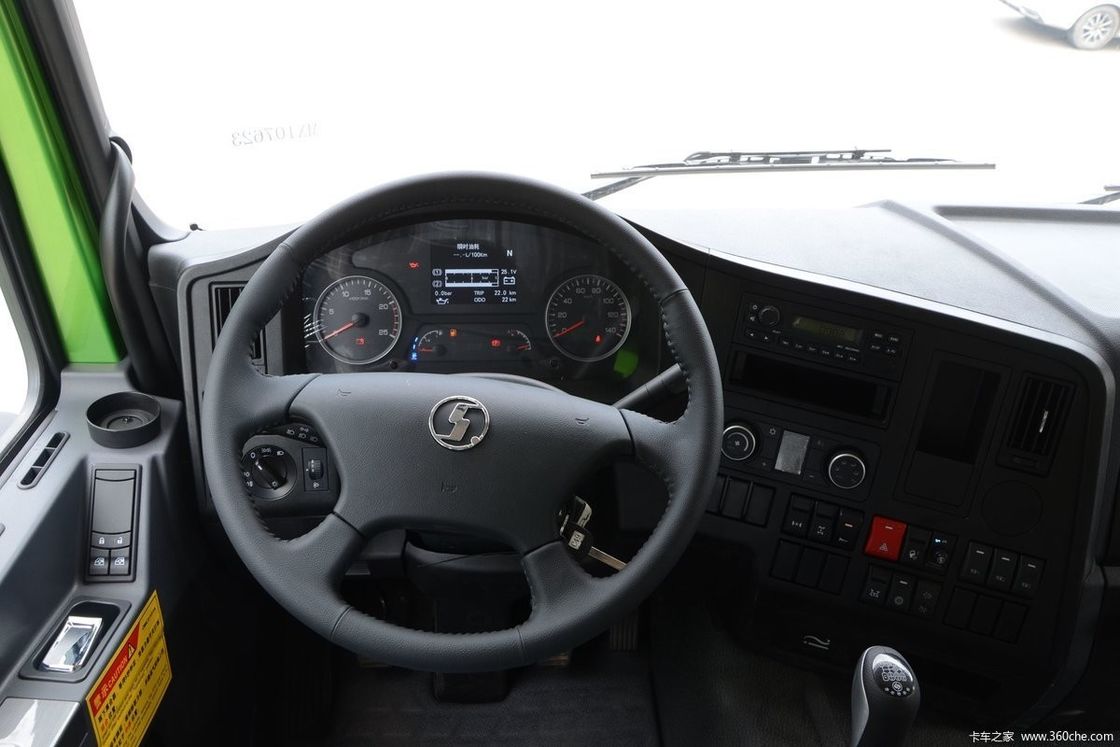

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

Product Paramenters

Max. running speed (km/h) 最高车速				82
Drive System 驱动形式				8×4
Dimensions （LWH）(mm)		Overall 外部尺寸	10635×2490×3790
		Dump body 内部尺寸	7800×2300×1500+200
Thickness (mm) 厚度				Bottom 12, side 8 底12边8
Hydraulic lifting system 液压举升系统				Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角				28 / 20
Kerb weight (kg)自重				15500
Total mass (kg)总重				31000
Wheel base (mm) 轴距				1800+3575+1400
Engine 发动机				WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力欧2排放
Horsepower 马力				460 hp
Gearbox 变速箱				FAST 12JSXD240T
Clutch 离合器				Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机				ZF technology
Cab 驾驶室				F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺
Axle 桥	Front axle前轴		9.5T MAN
	Rear axle 后桥		16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）				12.00R20（12+1 备胎）
Oil tank 油箱				300L(Metal) 300L金属油箱
