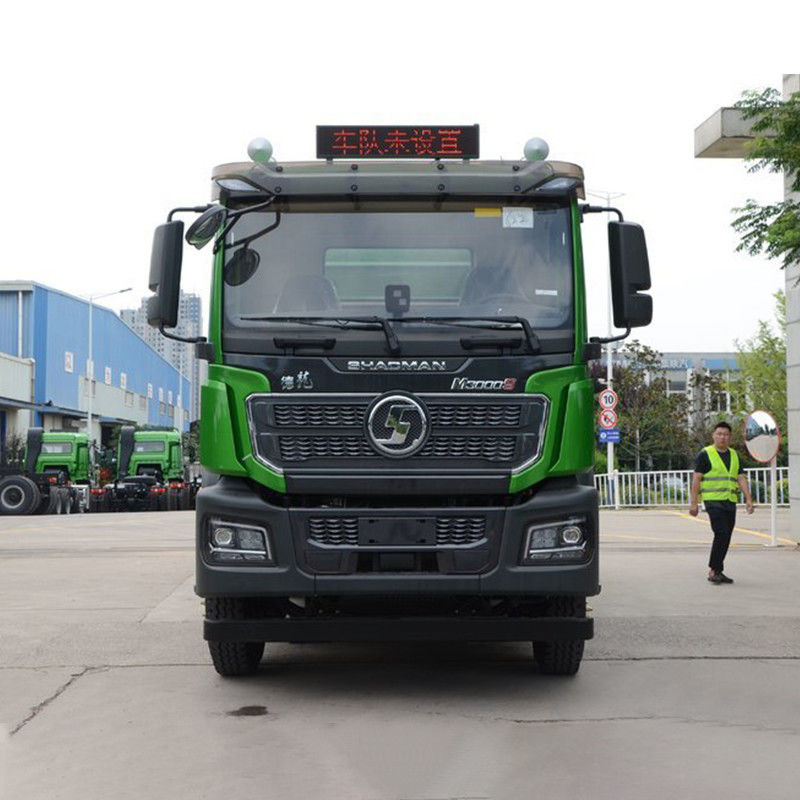

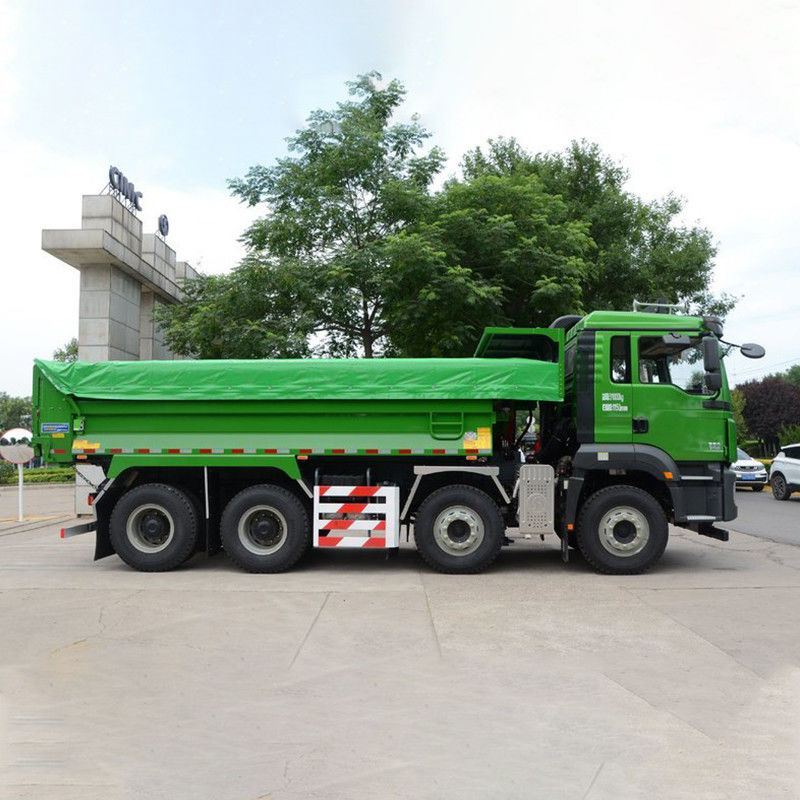

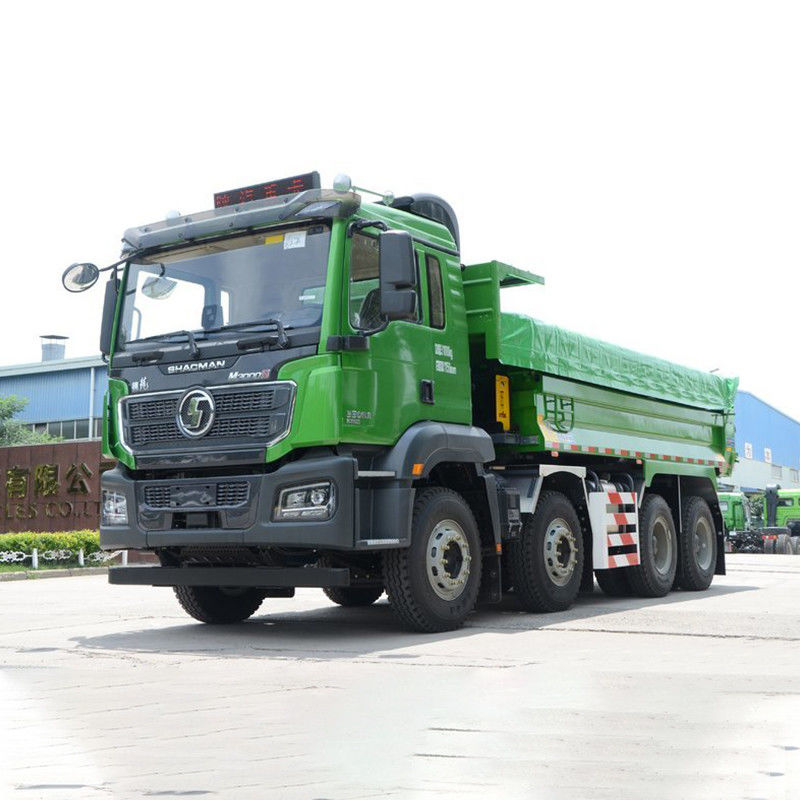

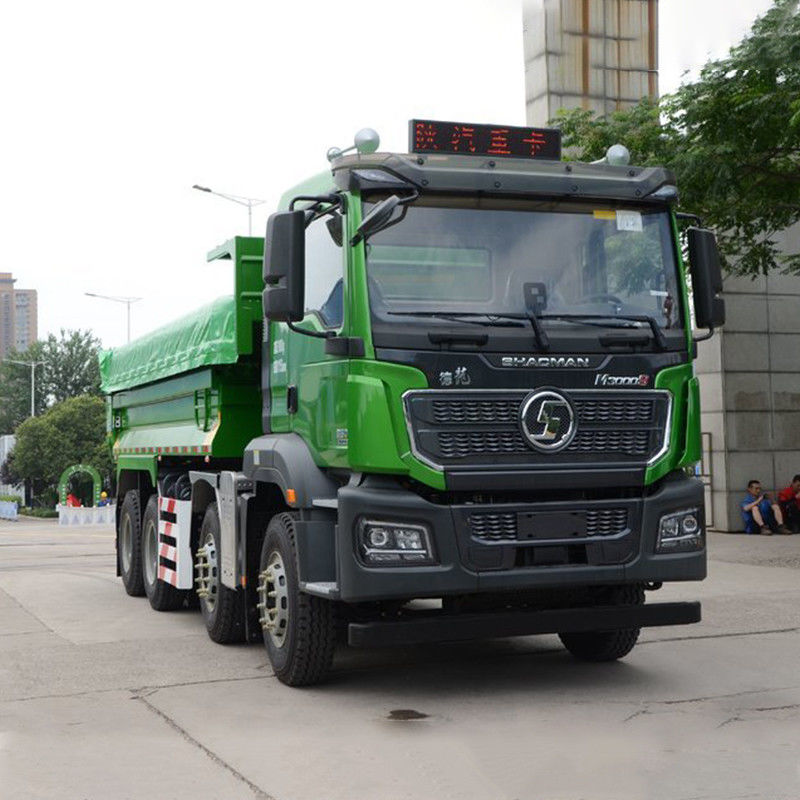

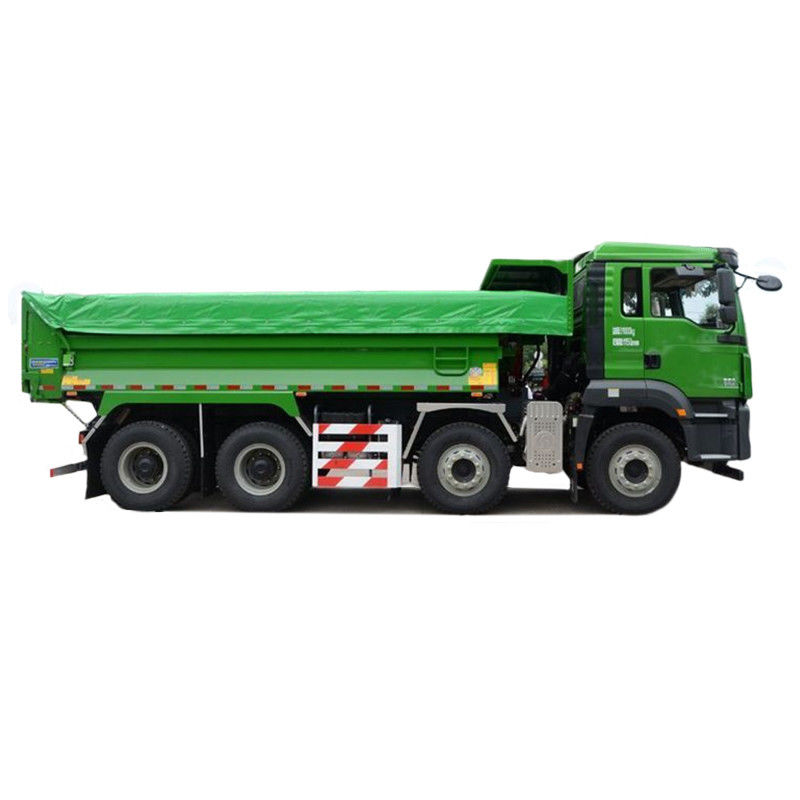

Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging

Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging

Place of Origin:

Shandong, China

Brand Name:

Shacman

Contact Us
Request A Quote
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging
Product Details
Condition:
New
Steering:
Left
Horsepower:
351 - 450hp
Emission Standard:
Euro 2
Segement:
Heavy Truck
Market Segement:
Engineering Transportation
Engine Brand:
WEICHAI
Fuel Type:
Diesel
Engine Capacity:
> 8L
Cylinders:
6
Gear Box Brand:
SINOTRUCK
Transmission Type:
Manual
Forward Shift Number:
10
Reverse Shift Number:
2
Maximum Torque(Nm):
2000-2500Nm
Dimensions (L X W X H) (mm):
10500*25500*3500mm
Cargo Tank Dimension:
7600 X 2300 X1500 Mm
Cargo Tank Length:
6.2-8m
Gross Vehicle Weight:
15-20T
Capacity (Load):
41 - 50t
Fuel Tank Capacity:
300-400L
Drive Wheel:
8X4
Passengers:
2
Driver's Seat:
Normal
Rear Camera:
None
Cruise Control:
None
ABS(Antilock Braking System):
None
ESC(Electronic Stability Control System):
None
Touch Screen:
None
Multimedia System:
None
Window:
Manual
Air Conditioner:
Manual
Tire Number:
12
After-sales Service Provided:
Video Technical Support, Online Support
Brand:
Shacman
Transmission:
FAST 10JSD180
Driving Type:
8x4 Right Hand Driving
Tire:
12+1
Engine:
WEICHAI WP10.380E201 Euro
Loading Capacity:
40-50 Ton
Rear Axle:
Man 16 X2
Fuel Tank:
400L
Bucket Capacity:
25 CBM
Color:
Customer's Request
Port:
Tianjin
Payment & Shipping Terms
Price
$33,250.00/units 1-2 units
Packaging Details
Bulk ship
Supply Ability
100 Unit/Units per Month
RELATED PRODUCTS
Good price None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction online

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price
Good price 15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera online

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price
Good price 20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L online

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price
Good price 6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used online

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price
Contact Us
Contact Now
Product Description
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 0
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 1
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 2
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 3
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 4
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 5
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 6
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 7
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 8
Man 16 X2 Rear Axle 8x4 Tipper Truck for Engineering Transportation Self-Discharging 9
Max. running speed (km/h) 最高车速
82
Drive System 驱动形式
8×4
Dimensions
（L*W*H）(mm)
Overall 外部尺寸
9735×2490×3790
Dump body 内部尺寸
7600×2300×1700
Thickness (mm) 厚度
Bottom 8, side 6 底8边6
Hydraulic lifting system 液压举升系统
Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角
28 / 20
Kerb weight (kg)自重
15500
Total mass (kg)总重
31000
Wheel base (mm) 轴距
1800+3775+1400
Engine 发动机
WEICHAI WP10.380E201 Euro Ⅱ 潍柴动力 欧2排放
Horsepower 马力
420 hp
Gearbox 变速箱
FAST 10JSD180,法士特10档变速箱
Clutch 离合器
Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机
ZF technology
Cab 驾驶室
F3000 mid-lengthened Cabin with single-sleeper
F3000中长平顶驾驶室带单卧铺
Axle 桥
Front axle前轴
9.5T MAN
Rear axle 后桥
16Ton MAN axle, final ratio 5.262
16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）
12.00R20（12+1 备胎）
Oil tank 油箱
300L(Metal) 300L金属油箱
