400 HP 8X4 Shacman F3000 Tipper Truck for and Durable Performance in Tough Environments

Place of Origin:

Shanxi, China

Brand Name:

Shacman

Request A Quote

Product Details

Condition:

New

Steering:

Left

Horsepower:

351 - 450hp

Emission Standard:

Euro 3

Segement:

Heavy Truck

Market Segement:

Engineering Transportation

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

FAST

Transmission Type:

Manual

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

≥2500Nm

Dimensions (L X W X H) (mm):

10600 X2550 X3400 MM

Cargo Tank Dimension:

7600X2300X1500 MM

Cargo Tank Length:

6.2-8m

Gross Vehicle Weight:

20-25T

Capacity (Load):

31 - 40T

Fuel Tank Capacity:

300-400L

Drive Wheel:

8X4

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

Yes

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Manual

Air Conditioner:

Manual

Tire Number:

After-sales Service Provided:

Video Technical Support, Online Support

Product Name:

Shacman 8X4 Dump Truck

Engine:

WP10.400E32

Driving Type:

8x4 Left Hand Driving

Transmission:

10JSD180+QH50

Horse Power:

400hp

Cabin:

F3000 Cabin

Rear Axle:

16T MAN Double Reduction 5.262

Wheel Base:

1400+3500+1350mm

Loading Capacity:

30-40 Tons

Application:

Construction Industry

Port:

Tianjin, Shanghai, Qingdao

Payment & Shipping Terms

Price

$42,780.00/units 1-4 units

Supply Ability

5000 Unit/Units per Quarter

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

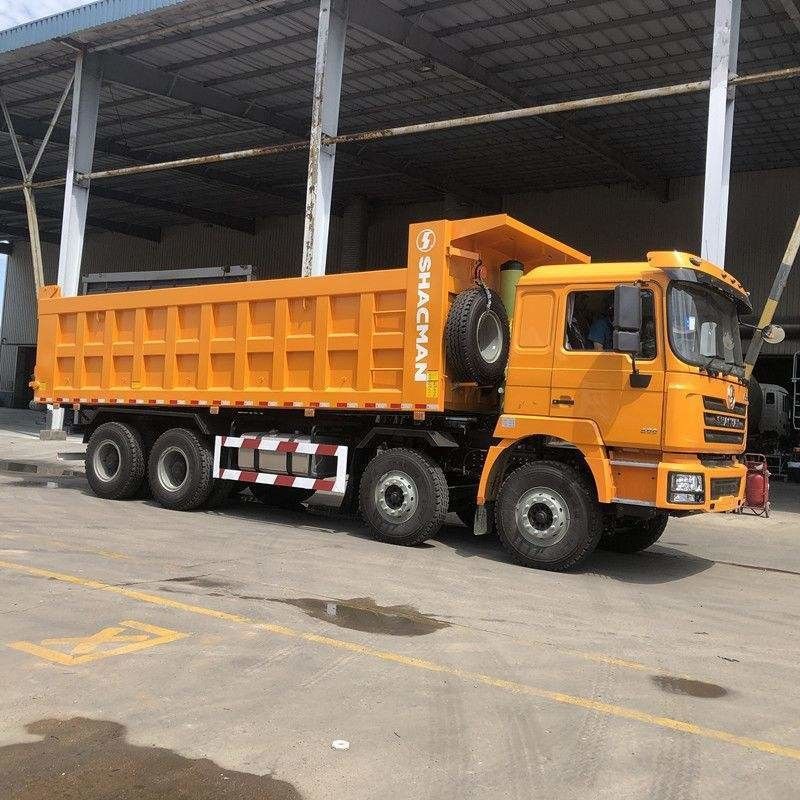

Shacman 8X4 Dump Truck

1) WECHAI 400 HP Engine

2) MAN Technolodgy Axles

3) Stong , Effecient and Heavy Load

Details Images

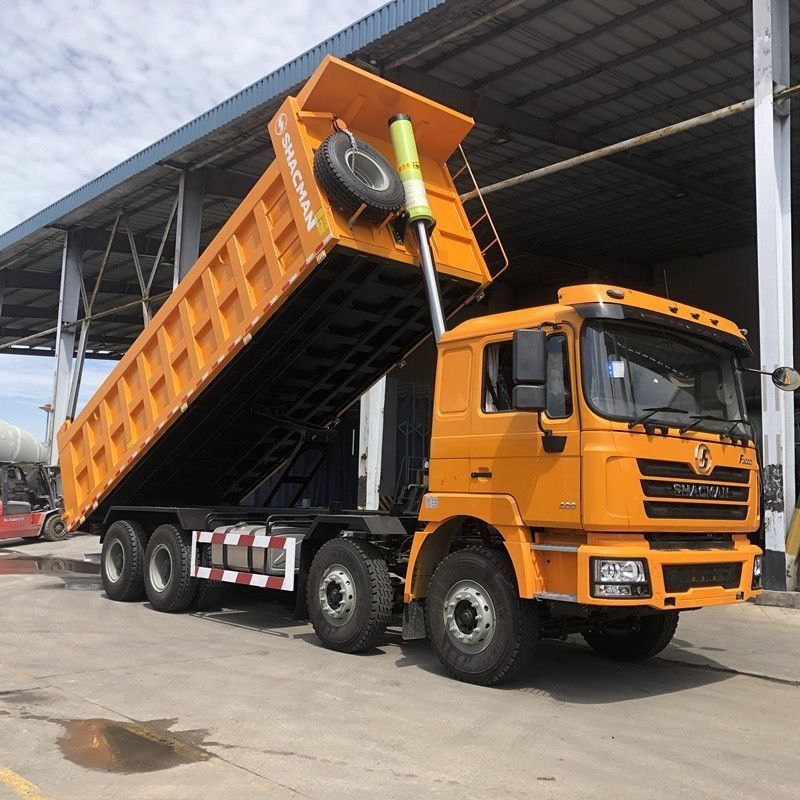

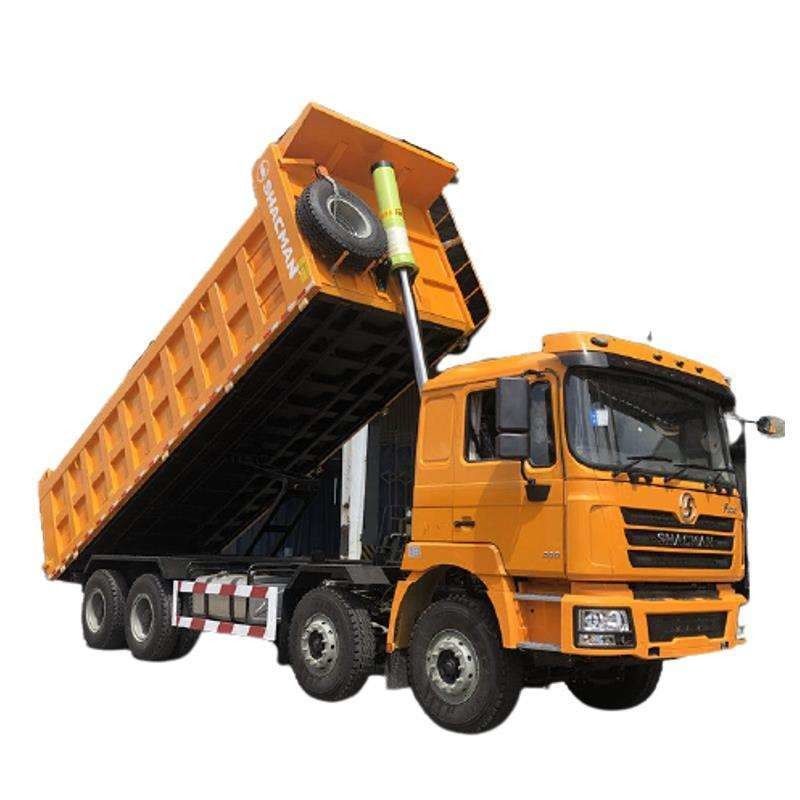

--HYVA Lifting Cylinder: Imported lift cylinders for faster lifting and more complete discharge.--Hydraulic lifting system: Middle lifting (HYVA front lifting is optional).

--Strong Body: 8MM Thick Box, Thickened bottom plate，More strong anti-weight.

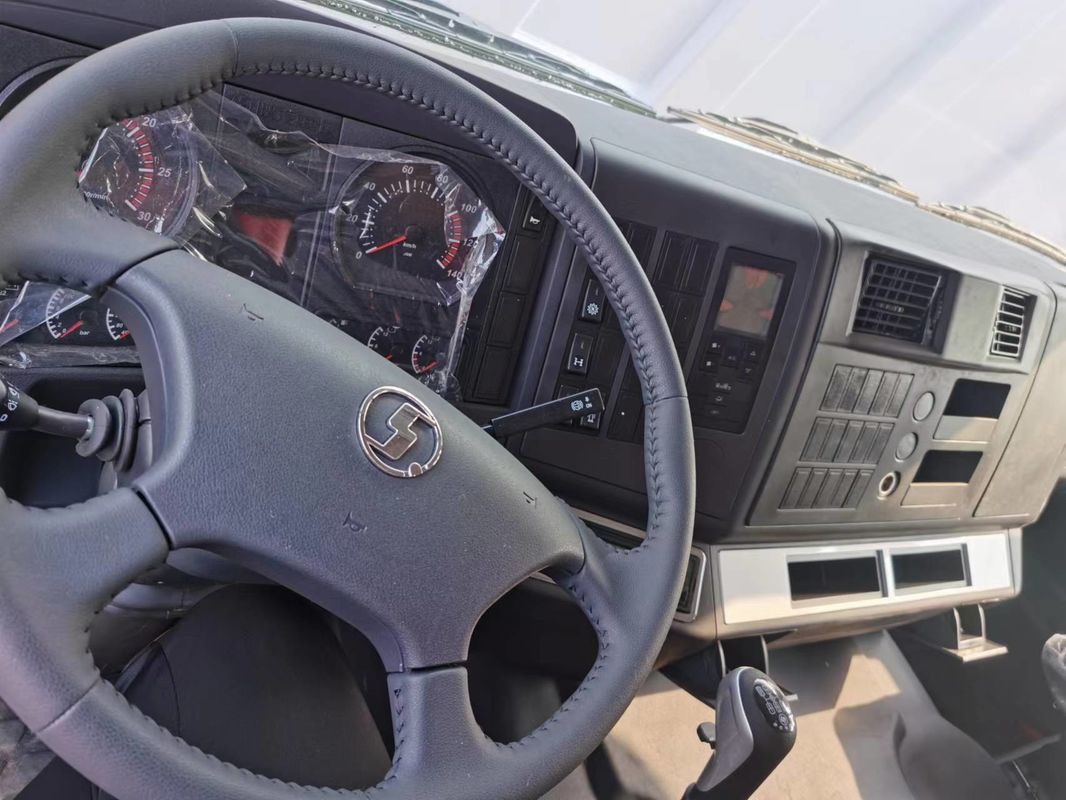

--New Type Cab: Shacman F3000, Single sleeper with air conditioner, All-steel forward control.

--Options for tires: 12.00-20 bias tire, 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.

--Heavy-duty five-leaf spring: MAN Technolodgy heavy-duty axle for transporting gravel loads.

--Large-capacity fuel tank: The standard self-tilting truck fuel tank size is 300-400L, which supports customization.

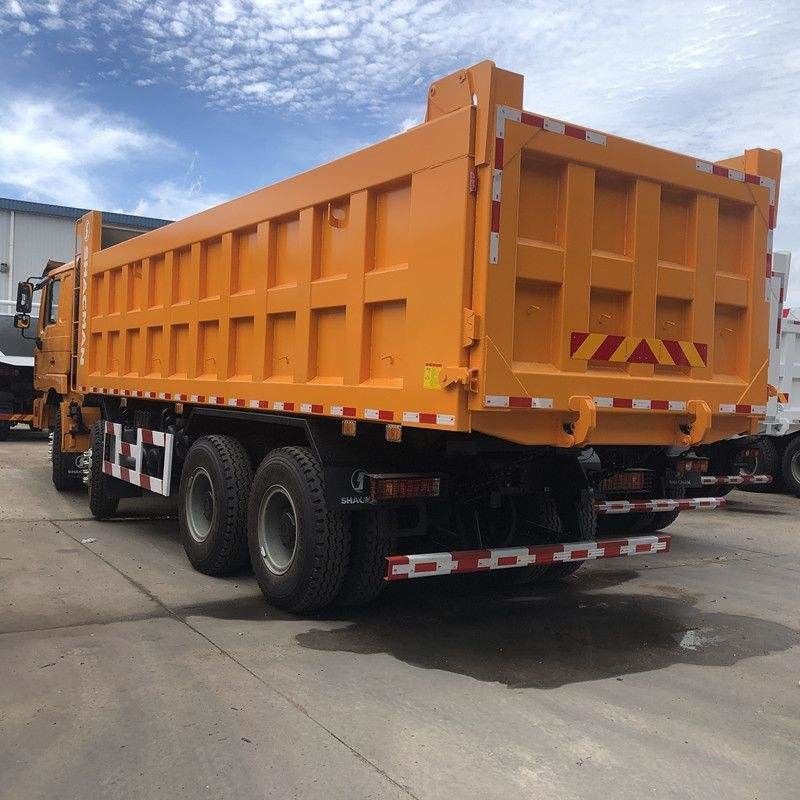

--Truck body volume of 15cbm~20cbm, sand and gravels transportation normal type dump body, big stones and rocks transportation with rock type dump body.

Product Paramenters

Max. running speed (km/h) 最高车速				82
Drive System 驱动形式				8×4
Dimensions （LWH）(mm)		Overall 外部尺寸	10635×2490×3790
		Dump body 内部尺寸	7800×2300×1500+200
Thickness (mm) 厚度				Bottom 12, side 8 底12边8
Hydraulic lifting system 液压举升系统				Ф200 Before the lifting Ф200前举
Approach / departure angle (°) 接近角/离去角				28 / 20
Kerb weight (kg)自重				15500
Total mass (kg)总重				31000
Wheel base (mm) 轴距				1800+3575+1400
Engine 发动机				WEICHAI WP12.400E201 Euro Ⅱ 潍柴动力欧2排放
Horsepower 马力				400 hp
Gearbox 变速箱				FAST 10JSD180,法士特10档变速箱
Clutch 离合器				Ф 430 Diaphragm type Ф 430膜片离合式
Steering 转向机				ZF technology
Cab 驾驶室				F3000 mid-lengthened Cabin with single-sleeper F3000中长平顶驾驶室带单卧铺
Axle 桥	Front axle前轴		9.5T MAN
	Rear axle 后桥		16Ton MAN axle, final ratio 5.262 16吨曼双极桥，速比5.262
Tyre (radial tyre) 轮胎（钢丝胎）				12.00R20（12+1 备胎）
Oil tank 油箱				300L(Metal) 300L金属油箱
