Euro 2 Emission Standard 60 Ton 6X6 All Wheel Drive Articulated Dump Truck for Mining

Place of Origin:

XUZHOU

Brand Name:

xgmg

Request A Quote

Euro 2 Emission Standard 60 Ton 6X6 All Wheel Drive Articulated Dump Truck for Mining

Product Details

Condition:

Used

Steering:

Left

Horsepower:

451 - 500hp

Emission Standard:

Euro 2

Year:

2012

Make:

XGMG

Segement:

Heavy Truck

Market Segement:

Mining Transportation

Engine Brand:

WEICHAI

Fuel Type:

Diesel

Engine Capacity:

> 8L

Cylinders:

Gear Box Brand:

FAST

Transmission Type:

Automatic

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

1500-2000Nm

Dimensions (L X W X H) (mm):

7934*2496*3450mm

Cargo Tank Dimension:

5400*2300*1250mm

Cargo Tank Length:

5.3-6.2M

Gross Vehicle Weight:

≥30T

Capacity (Load):

> 50T

Fuel Tank Capacity:

400-500L

Drive Wheel:

6x6

Passengers:

Driver's Seat:

Normal

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Automatic

Air Conditioner:

Automatic

Tire Number:

After-sales Service Provided:

Video Technical Support, Online Support

Truck Type:

Articulated Dump Truck

Brand:

XGMG

Truck Condition:

Used Truck

Driving Type:

6X6 All Wheel Drive

Engine Power:

503/1800

Tires:

876/65R29

Loading Capacity:

60-70 Ton

Max Grade Ability:

26%

Application:

Mining Use

Loading Height:

3478 Mm

Port:

Tianjin, Shanghai, Qingdao

Payment & Shipping Terms

Price

$118,680.00/units 1-4 units

Supply Ability

5000 Unit/Units per Quarter

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

XD 40 ADT adopts proprietary real-time six-wheel drive technology, all-terrain self-adaptive driving technology, integrated
control technology for safe driving and riding, thermal energy control and management technology, stability control technology for
large flow hydraulic dump system, intelligent man-machine interaction and diagnosis technology. The whole vehicle features high
safety, high reliability and high intelligence. The machine also highlights strong power, low energy consumption, easy
maintenance, and high driving comfort.

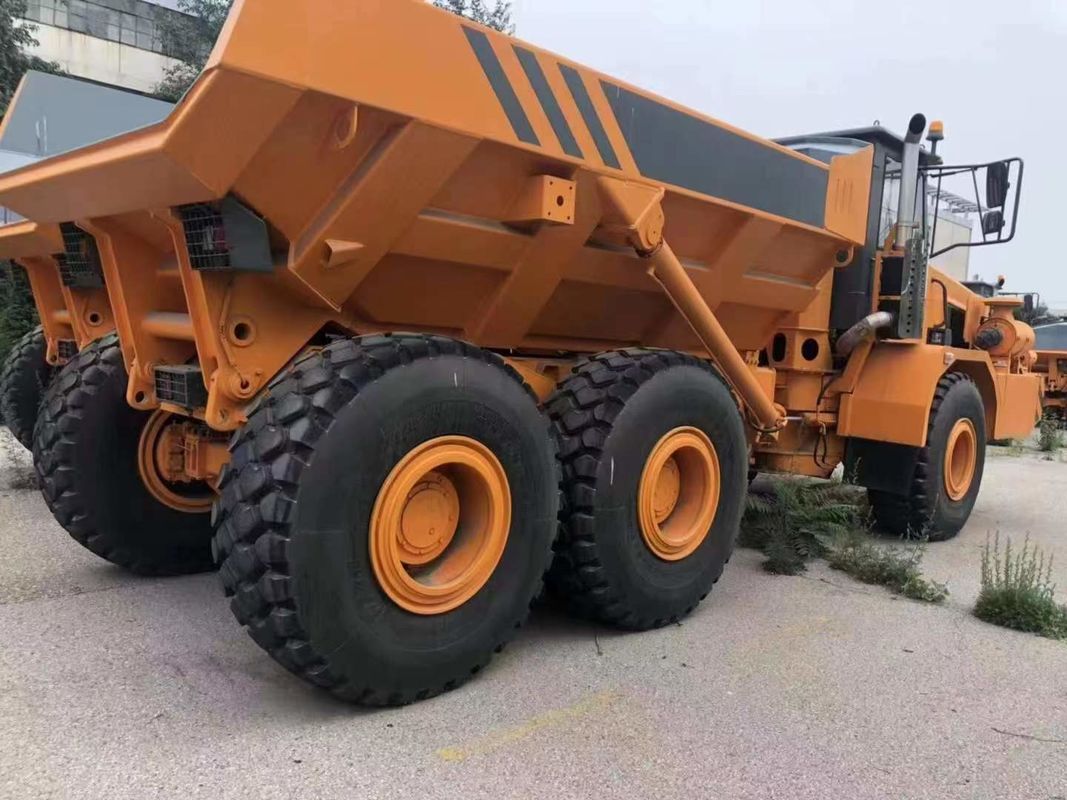

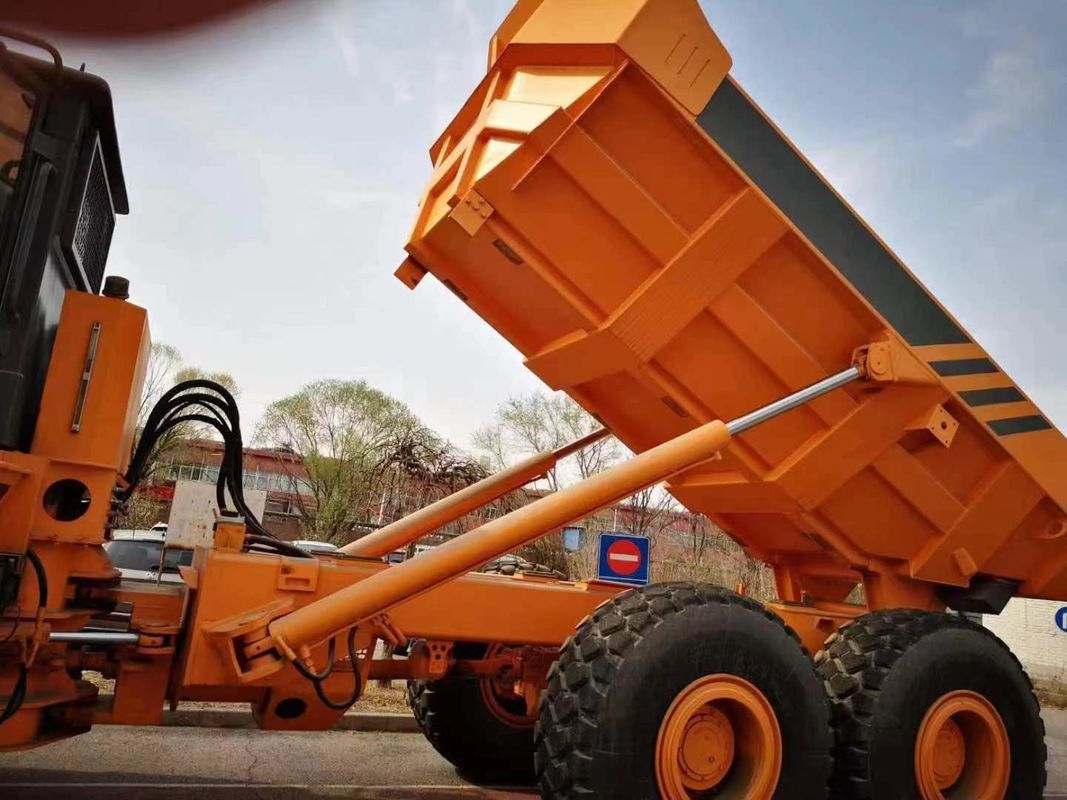

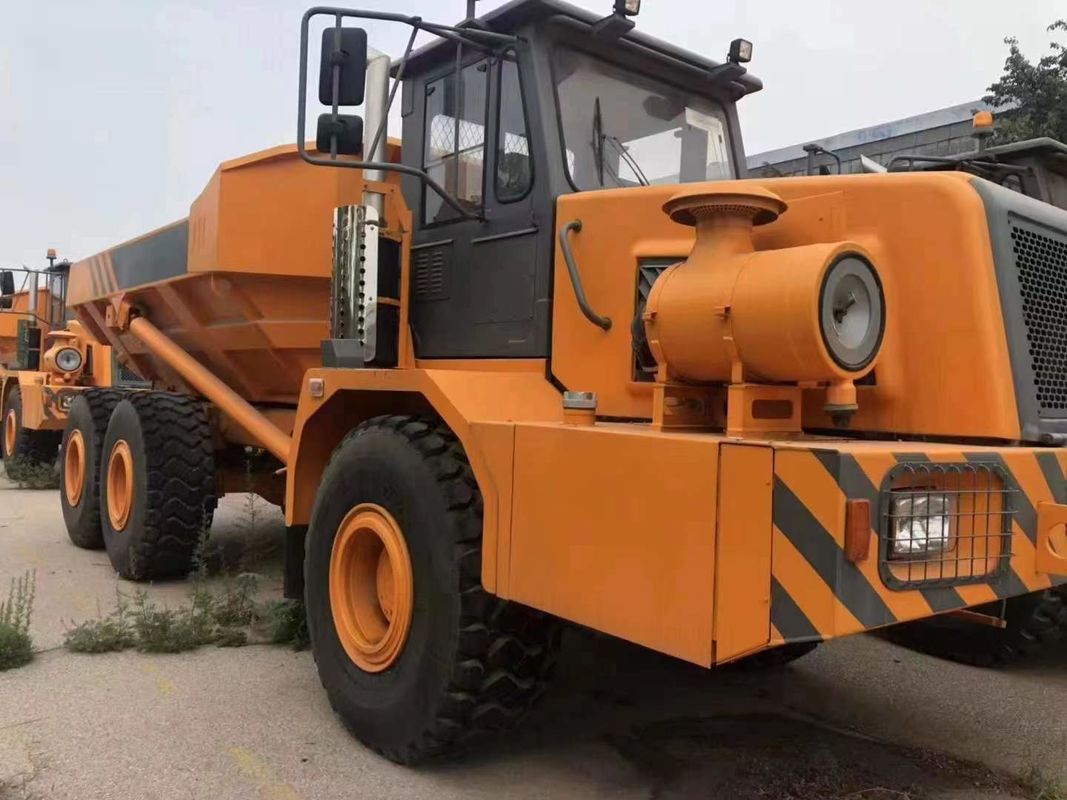

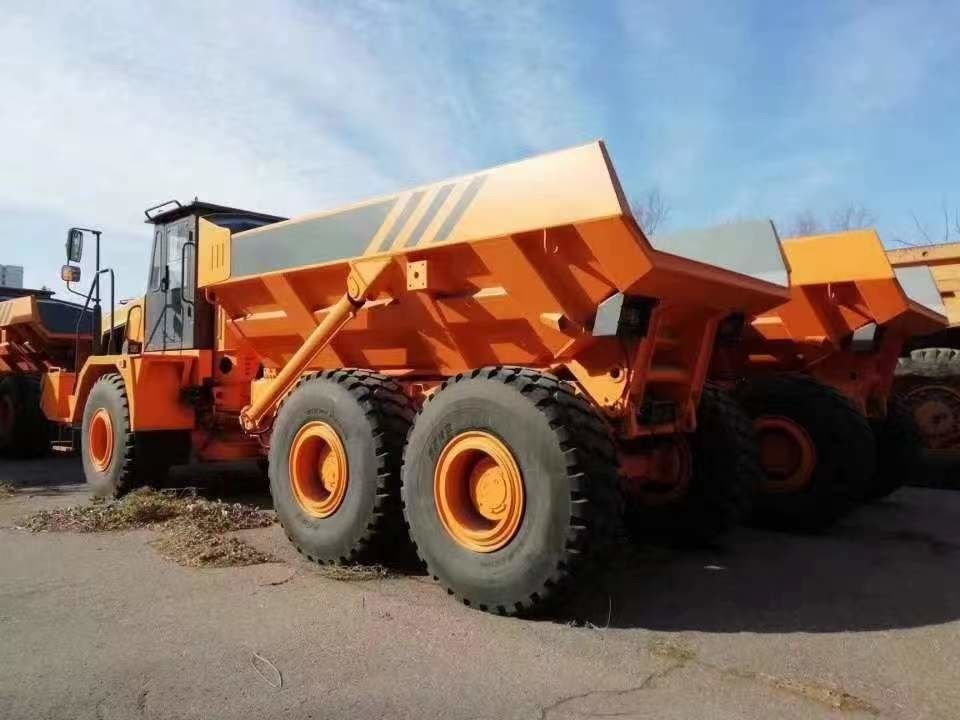

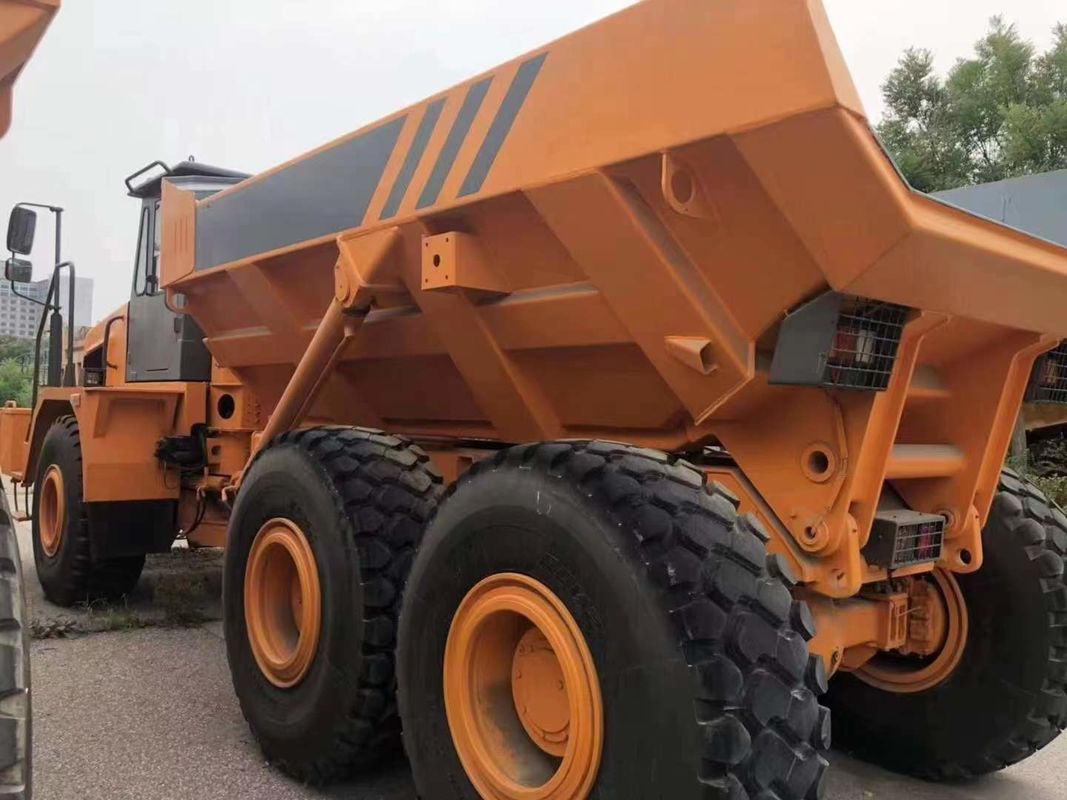

Details Images

Product Paramenters

Item	Unit	Parameter
Dimension	Overall Length	mm	12610
		Overall Width	mm	4084
		Overall Height	mm	4320/7610(Lifted)
		Wheelbase front-mid	mm	4518
		Wheelbase mid-rear	mm	2000
		Tire center distance	Front	mm
			Mid & Rear	mm
Weight	Total Weight	kg	108000
		Payload	kg	60000
		Curb Weight	kg	48000
Weight Distribution	Unload	Front	kg
			Mid & Rear	kg
		Loaded	Front	kg
			Mid & Rear	kg
Power Train	Engine	/	QSK19
		Rated Power	kW/r/min	503/1800
		Max Torque	Nm/r/min	2275/1300-1500
		Drive	/	6×N(N=1~6)
		Tires	/	876/65R29
Driving Performance	Max speed	km/h	40
		Min Turning Clearance	mm	9690
		Max Grade ability	%	26
		Max Steering Angle	°	±45
		Minimum Ground Clearance	mm	458
Working Parameter	Loading Height	mm	3478
		Hoist Time	s	16
		Hoist Angle	°	68
Service Capacities	Fuel	L	750
		Hydraulic Oil	L	400
		Cooling system	L	220
