Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box

Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box

Place of Origin:

SHN

Brand Name:

LCMG

Contact Us
Request A Quote
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box
Product Details
Condition:
New
Steering:
Left
Horsepower:
451 - 500hp
Emission Standard:
Euro 3
Segement:
Heavy Truck
Market Segement:
Mining Transportation
Engine Brand:
WEICHAI
Fuel Type:
Diesel
Engine Capacity:
> 8L
Cylinders:
6
Gear Box Brand:
FAST
Transmission Type:
Manual
Forward Shift Number:
8
Reverse Shift Number:
1
Maximum Torque(Nm):
≥2500Nm
Dimensions (L X W X H) (mm):
9770 X 4230 X 4560 Mm
Cargo Tank Dimension:
8100 X3640X2600 MM
Cargo Tank Length:
≥8m
Gross Vehicle Weight:
≥30T
Capacity (Load):
> 50T
Fuel Tank Capacity:
500-600L
Drive Wheel:
6x4
Passengers:
3
Driver's Seat:
Normal
Rear Camera:
None
Cruise Control:
None
ABS(Antilock Braking System):
None
ESC(Electronic Stability Control System):
None
Touch Screen:
None
Multimedia System:
None
Window:
Manual
Air Conditioner:
Manual
Tire Number:
10
After-sales Service Provided:
Video Technical Support, Online Support
Overall Dimension(LXWXH)(mm):
9770X4230X4560
Curb Weight(kg):
39000
Engine:
Weichai WP13G530E310
Gearbox:
Auto Gearbox FC6A250PRT
Front Axle:
Welded Axle Housing
Middle-Rear Axle:
Main Reduction Ratio 4.11
Wheel Rim:
13.00/2.0-25
Tyre:
18.00R25
Front Suspension System:
Leaf Spring + Double-acting Cylinder Shock Absorber
Rear Suspension:
Spring + Rubber Balance Suspension
Port:
Tianjin
Payment & Shipping Terms
Price
$124,200.00/units 1-2 units
Packaging Details
Bulk ship
Supply Ability
100 Unit/Units per Month
RELATED PRODUCTS
Good price None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction online

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price
Good price 15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera online

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price
Good price 20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L online

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price
Good price 6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used online

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price
Contact Us
Contact Now
Product Description
Product Video
Products Description
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 0

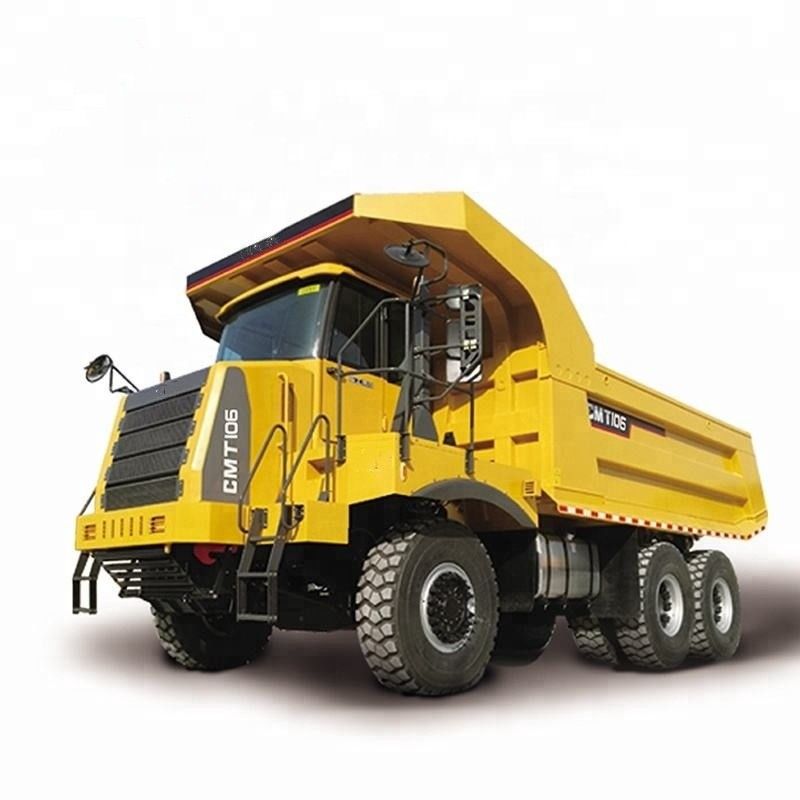

CMT106 Automatic Gear Mining DUMP TRUCK

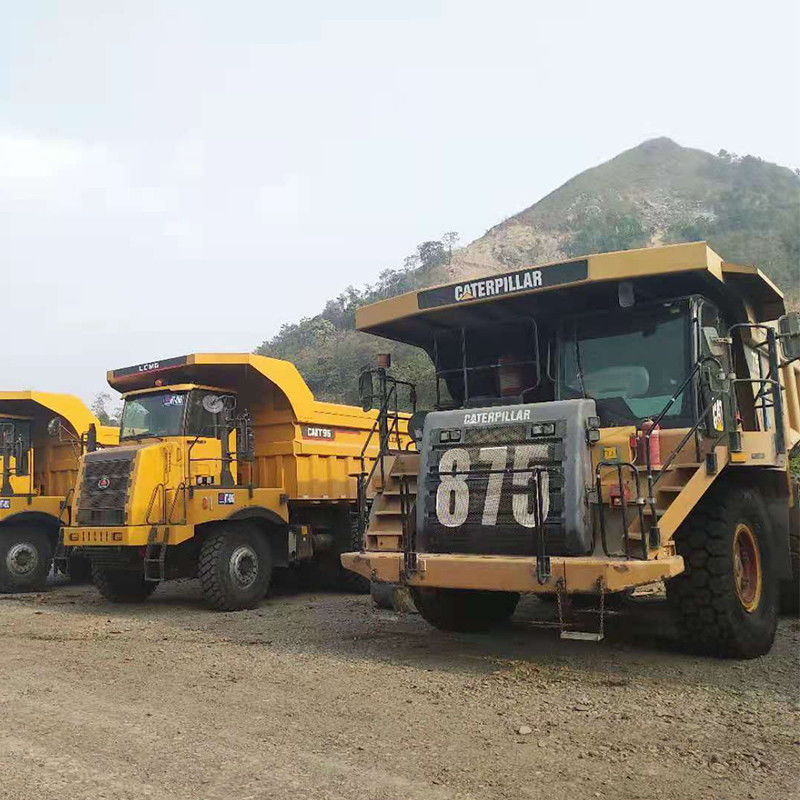

Best competitor of Caterpillar

Efficient, reliable, economic, safe, comfortable, SMART

● Through the perfect combination of wide body car and rigid mine car, a cost-effective mine car designed for carrying large-scale open pit mines with heavy demand and bad working conditions
● The front and rear suspension adopt multi-stage shock absorption, which effectively prolongs the service life of the leaf spring and has strong impact resistance.
● Full hydraulic steering, better comfort than mechanical steering
● Adopt all-wheel dry-type caliper brake, cylinder and exhaust assist brake, improving the safety of the whole machine.
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 1
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 2
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 3
Details Images
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 4
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 5
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 6
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 7
Product Paramenters
Item
Data
Item
Data
Max.Design Weight（kg）
108000
Overall Dimension（LxWxH）（mm）
9770x4230x4560
Unladen/Laden Max.Speed（km/h)
48/41
Unladen/Laden Max.Gradeability（°）
36.7
Struck Capacity (flat/ heaped)m³
38/44
Min.Turning Diameter(m)
≤24
Curb Weight（kg）
39000
Payload(kg)
70000
Wheel Tread（mm）
Front Axle：3120；Middle-Rear Axle：2910
Wheelbase（mm）
3910（Front-Middle）1800（Middle-Rear）
Approaching Angle(°）
31
Departure Angle（°）
60
Ground Clearance（mm）
≥466 /406
Number of Axles
3
Make
Weichai WP13G530E310
Number of Cylinder
6
Type
Line, Direct Injection, Water-cooling, Inter-cooling, Electric-controlled
Bore/Stroke（mm）
127/165
Rated Power(kW)
390
Min. Fuel Consumption（g/kW.h)
195.9
Rated Speed(r/min)
2100
Max. Torque（N.m)
2300
Emission load (ml)
12540
Emission Standard
StageIII GB20891-2014
Auto Gearbox
FC6A250PRT
Type
planetary
Speed Ratio
1st
4.4
2nd
2.33
3rd
1.53
4th
1.00
5th
0.72
6th
0.61
R1
3.97
Front Axle
Steering Axle
Welded Axle Housing
Middle-Rear Axle
Main Reduction Ratio
4.11
Wheel Edge Reduction Ratio
4.952
Total Reduction Ratio
20.357
Wheel
Rim
13.00/2.0-25
Tyre
18.00R25
Tyre Pressure（MPa）
0.8
Suspension System
Front Suspension
Leaf spring + double-acting cylinder shock absorber
Rear Suspension
Spring + Rubber balance suspension
Heavy Duty 70 Ton Mining Dump Truck with 500-600L Fuel Tank Capacity and FAST Gear Box 8
