10 Ton All Wheel Drive 4 WD Tipper Truck Dongfeng 8 Forward Shift Off-road Dump Truck

Place of Origin:

HUB

Brand Name:

DONGFENG

Request A Quote

Product Details

Condition:

New

Steering:

Left

Emission Standard:

Euro 3

Segement:

Heavy Truck

Market Segement:

Construction Materials Transportation

Engine Brand:

Cummins

Fuel Type:

Diesel

Engine Capacity:

6 - 8L

Cylinders:

Horsepower:

251 - 350hp, 260HP

Gear Box Brand:

FAST

Transmission Type:

Manual, FAST 8JS118T-B

Forward Shift Number:

Reverse Shift Number:

Maximum Torque(Nm):

1500-2000Nm

Size:

8830X2550X3050mm

Cargo Tank Dimension:

5000*2450*700mm

Cargo Tank Length:

4.2-5.3m

Cargo Tank Type:

Fence

Gross Vehicle Weight:

6495

Capacity (Load):

21 - 30T

Fuel Tank Capacity:

400-500L

Drive Wheel:

4X2

Passengers:

Driver's Seat:

Normal

Seat Rows:

Half A Row

Rear Camera:

None

Cruise Control:

None

ABS(Antilock Braking System):

None

ESC(Electronic Stability Control System):

None

Touch Screen:

None

Multimedia System:

None

Window:

Manual

Air Conditioner:

Automatic

Tire Number:

After-sales Service Provided:

Video Technical Support, Online Support

Brand:

Dong Feng

Drive Type:

6X6 LHD

Engine:

YUCHAI Or CUMMINS

Tire:

12.5R20 6+1

Cargo Box:

5000*2450*700mm

Clutch:

Monolithic Pull Diaphragm Clutch

Overall Dimensions:

8830X2550X3050

Wheel Base(mm):

4500+1350

Port:

Tianjin, Shanghai, Qingdao

Payment & Shipping Terms

Price

$22,540.00/units 1-4 units

Supply Ability

5000 Unit/Units per Quarter

None Cruise Control 6X4 Dump Truck for Transportation Engineering Construction

Get Best Price

15500 kg Gross Vehicle Weight SHACMAN 6x4 Dump Truck 350HP 100 Ton 360° Rear Camera

Get Best Price

20 Ton Tipper Truck Good Condition Used 6*4 Dump Truck Self Loading Engine Capacity 8L

Get Best Price

6X4 Dump Truck Automatic Transmission 460 HP Heavy Duty 8 Tyres Deposit Shipment Used

Get Best Price

Contact Now

Product Description

Products Description

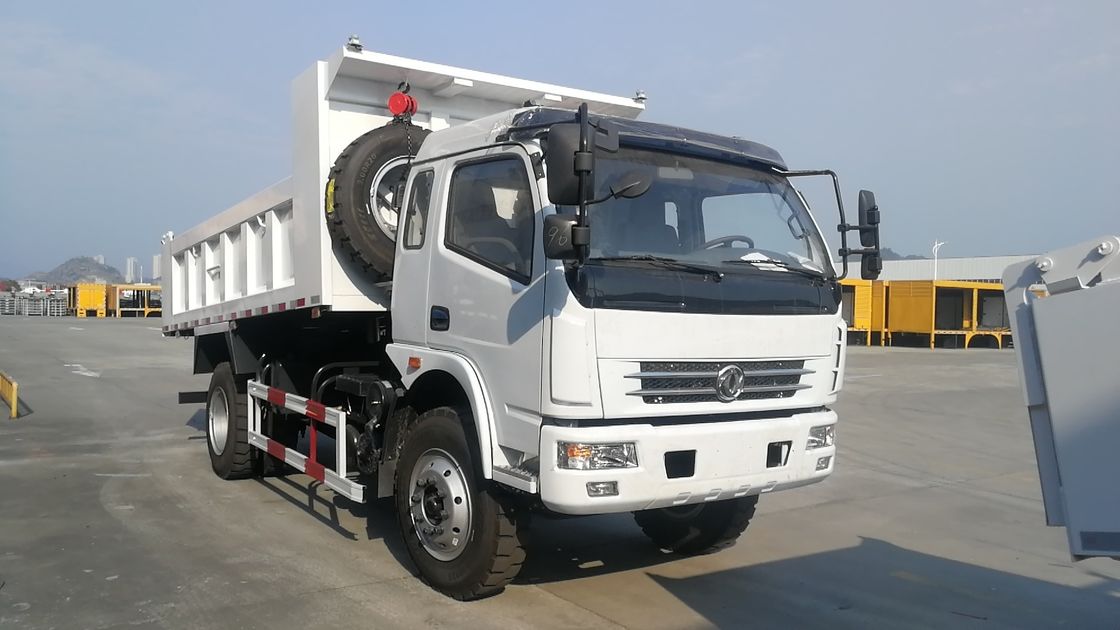

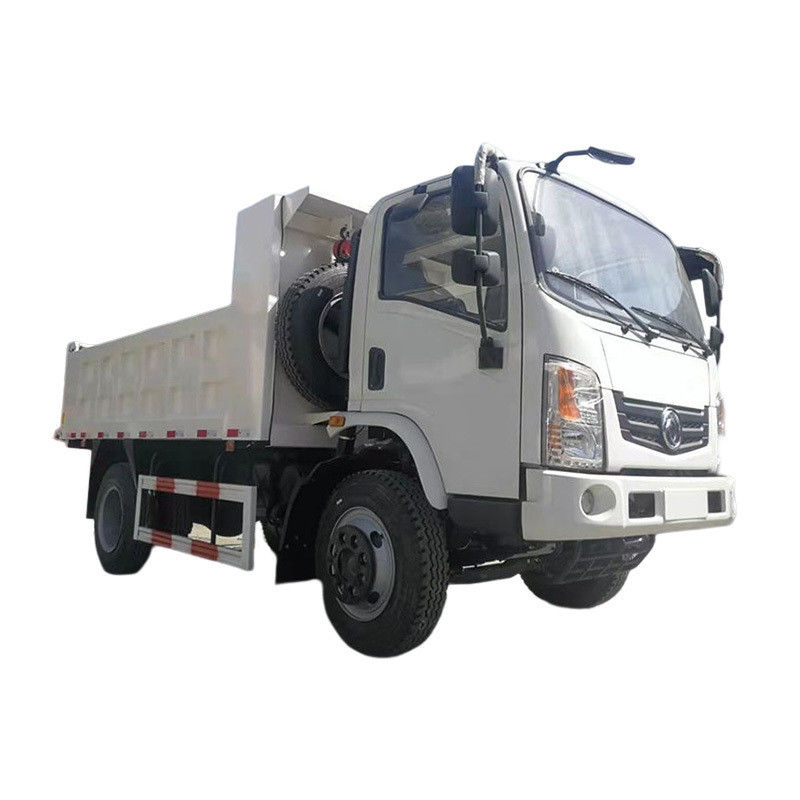

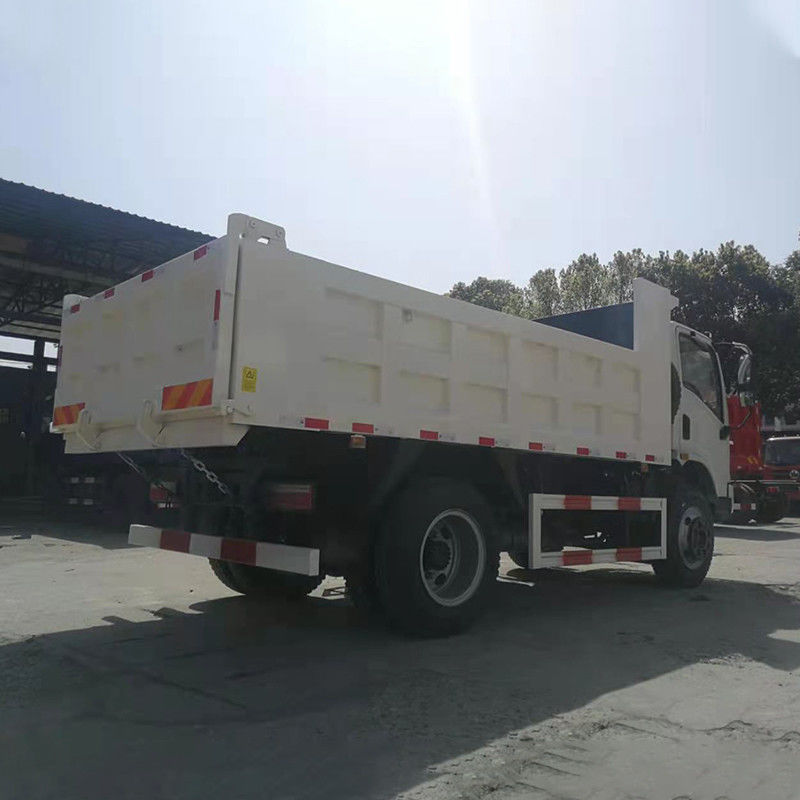

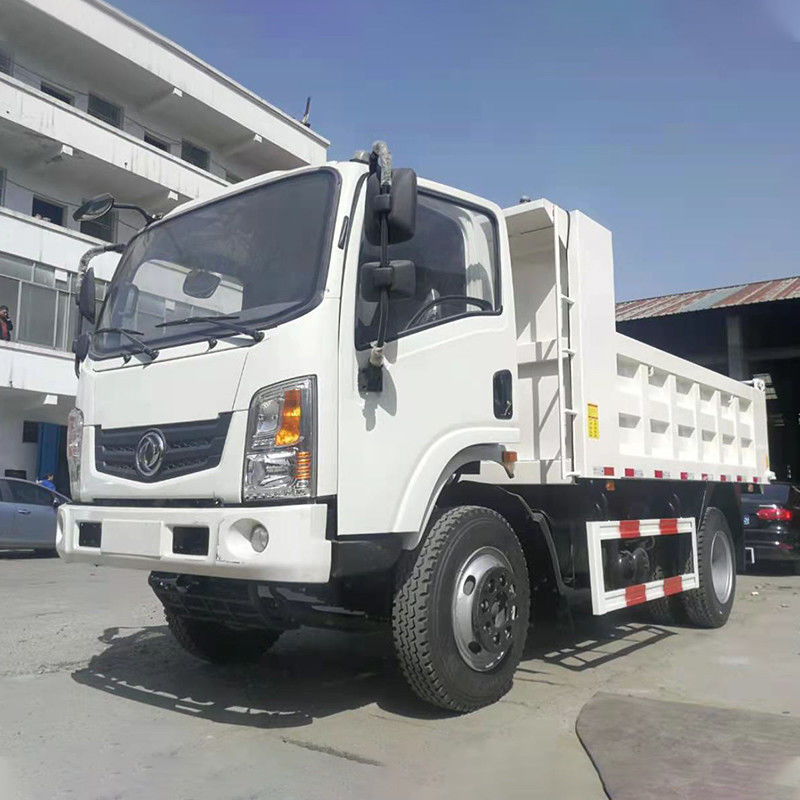

Dongfeng 4X4 Off-road Dump truck

Truck Fatures:

1) High loading capacity

2) Cummins Engine with better oil effeciency

3)Suitable for home / market / city transportation

4) Better price -performance ratio

Details Images

Product Paramenters

产品名称及型号 Product name and model	EQ2190		驱动方式 Drive mode	6×6，LHD
尺寸参数 Size parameters	外形尺寸长×宽×高(mm) Overall dimensions: length×width×height(mm)		8830×2550×3050
	轴距（mm） Wheel base（mm）		4500+1350
	前悬/后悬(mm) Front overhang /Rear overhang (mm)		1430/1600
质量参数 Mass parameter	整备质量(kg) Unladen mass (kg)		8450
	总质量(kg) Gross mass(kg)		19000
发动机 Engine	型式及类别 Model and variety		玉柴直列六缸、水冷涡轮增压柴油发动机/中冷,260hp Yuchai Straight 6-cylinder diesel engine, Water cooling/turbocharged/inter-cooling,260hp
	型号 Model		YC6A260-33
	排量（ml） Discharge capacity（ml）		7255
	燃料种类 Fuel type		Diesel
	最大扭矩(N.m) Maximum torque /speed (N.m)		1000/1400～1600
	额定功率 Rated power		191/2300
	最高车速 Max Speed		85 Км/h
离合器 Clutch	型号及型式 Model and type		推式、膜片弹簧离合器 Monolithic pull diaphragm clutch
	操纵方式 Control mode		液压远距离操纵 Hydraulic remote control
	离合器盘直径(mm) Clutch disc diamete (mm)		¢430
变速箱 Transmission	型式 Тype		陕齿8档箱,机械式 8JS118T-B,mechanical
	前进档位数 Forwardgear digit		8
	速比 Ratios		Ⅰ11.4 Ⅱ7.94 Ⅲ5.63 Ⅳ4.06 Ⅴ2.81 Ⅵ1.96 Ⅶ1.39 Ⅷ1.00 RL11.35
分动箱 Auxiliary box	型号 Model		机械式 ZQC1200 ZQC1200mechanical
	Передаточное число 速比 Speed ratio		1.75；1.0
制动系统 Braking system	行车制动型式 Auto brake type		双回路气制动,排气制动 Double circuit air brake system, exhaust brake
驾驶室 Cab	平顶,2门，带空调，带卧铺, 2座 Flat roof/single 2 doors cabin/with AC, 2 persons
前后桥 Axle	Front	铸造桥壳，驱动转向桥,6T Casting welded axle drive steer axle,6T
	后桥 Rear	轮边减速双后桥，10T/10T,速比5.921 Wheel deceleration double rear axle,10T, speed ratio of 5.921.
悬架系统Suspension	前悬 Front	9片-多片钢板弹簧 9- Multi-plate leaf spring
	后悬 Rear	10+8片-多片钢板弹簧 10+8-Multi-plate leaf spring
蓄电池 Battery	电压 (V) Voltage (V)	24
	容量(A.h) Сapacity (A.h)	165AHX2
转向 Steering	动力辅助转向 Power assisted
传动装置 Transmission	FAST，配有取力器系统 FAST equipped with PTO
轮胎 Tyres	12.5R20 6+1备用胎 12.5R20, 6+1, spare
上装 Upper	车厢 Cargo box	侧门与后门可折叠的车厢，50002450700mm Sides and back folded cargo box,50002450700mm
	车厢材质 Box material	Q235
	车厢型体 Box mode	长方体型 Cuboid
	吊臂 Winch	根据要求可装配6.7吨/11mmx25 m Equipped,6.7t/11mmx25meters as requested
