Place of Origin:
Henan, China
Brand Name:
HOWO

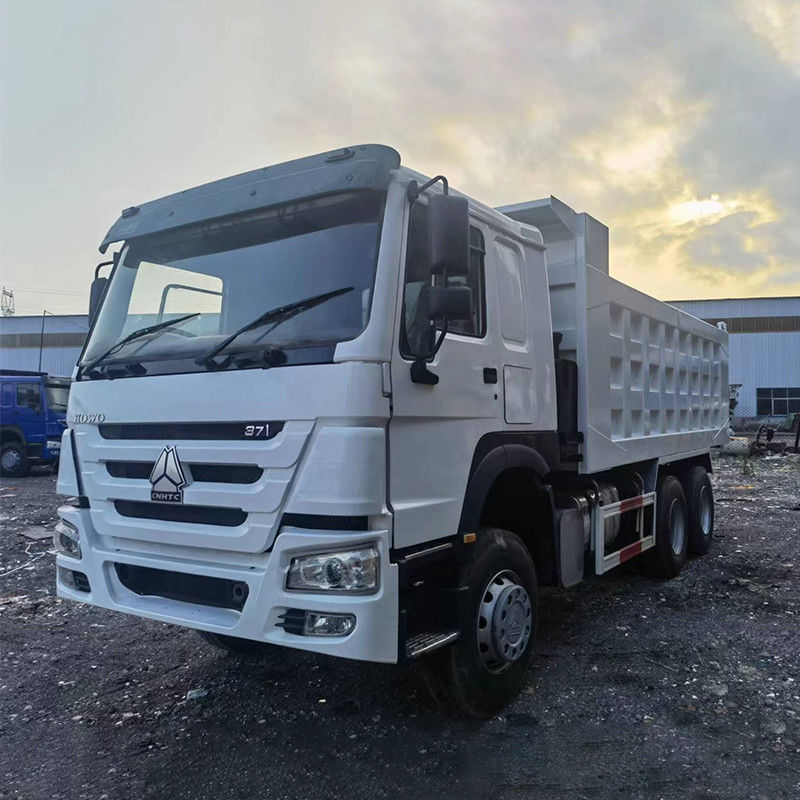

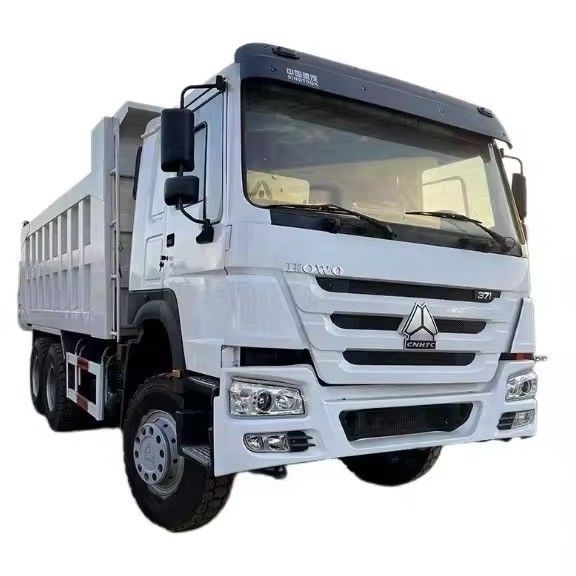

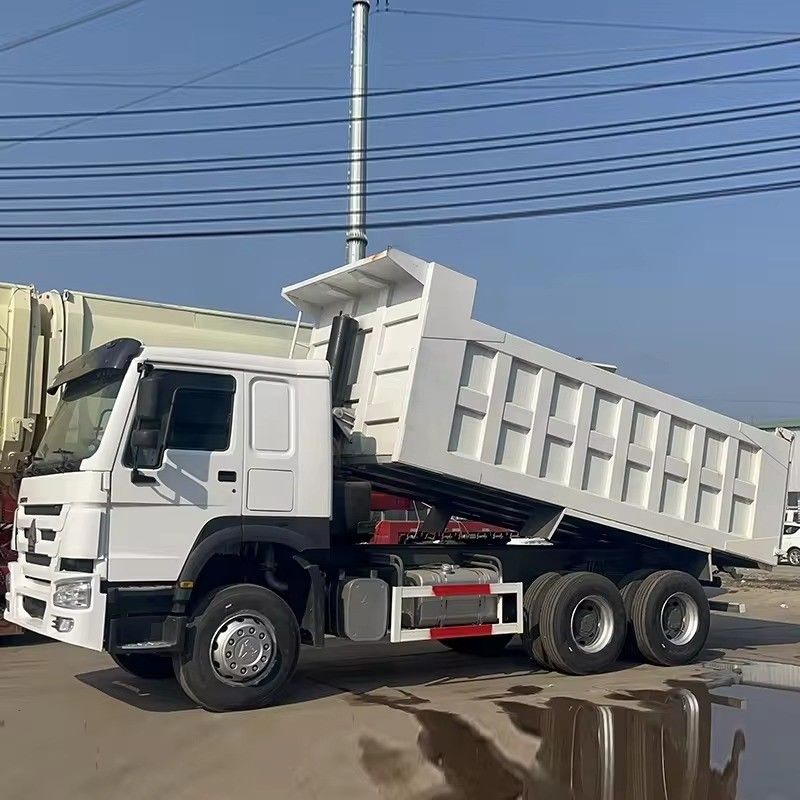

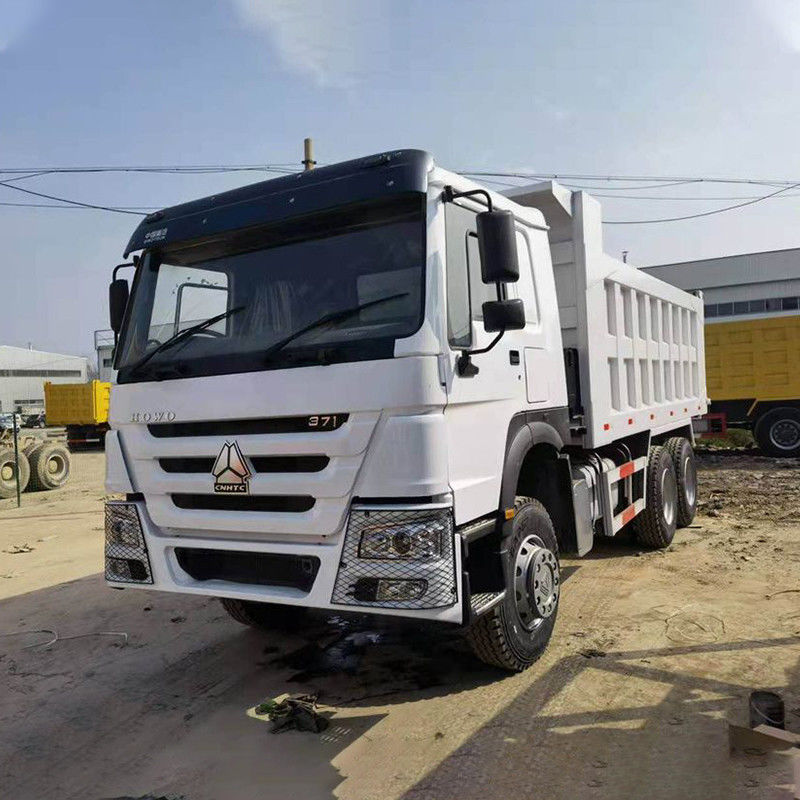

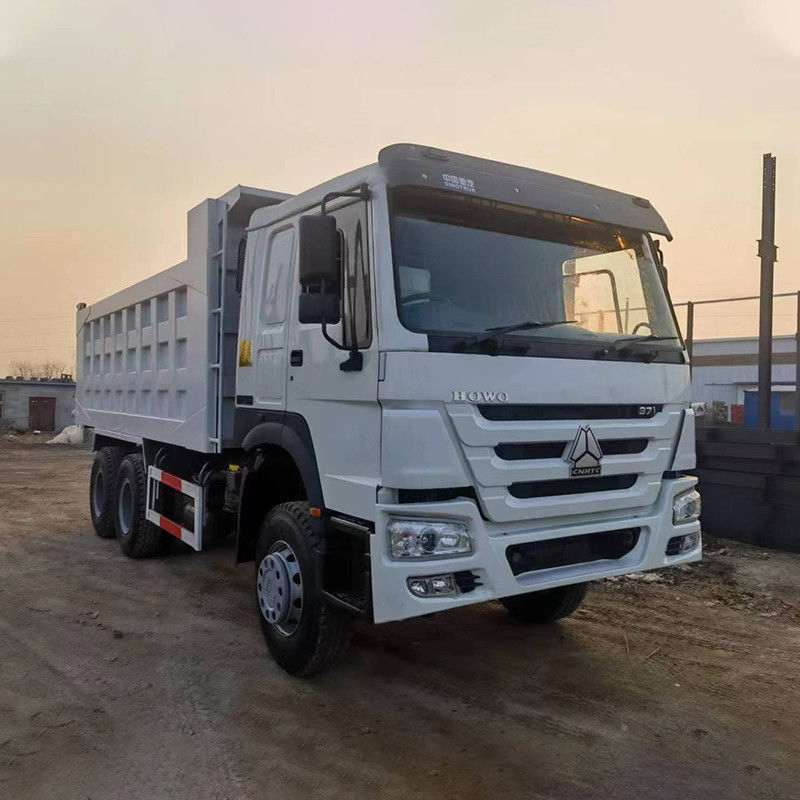

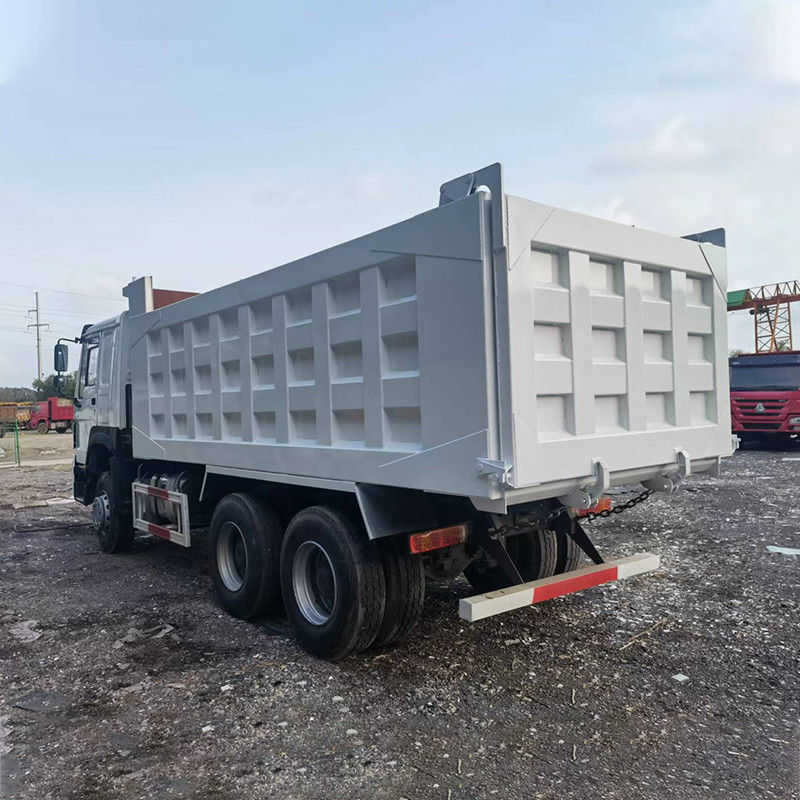

New And Used Various Types Dump Truck | ||
Type of Vehicle : new and used dump truck | Horsepower : 336hp,371hp,375hp,380hp,420hp,etc. | |
Truck Brand : Sinotruk Howo, Shacman, faw, etc. | Drive form : 6x4,6x2,4x2,8x4 | |
Driving Position : Left or right hand drive | Tire Type : 12.00R20 or 12.00R22.5 | |
Fuel tanker capacity : 400L-600L , Diesel | Loading Weight : 20-50 Ton | |
Fuel Consumption : 30L/100km | Emission : EURO 2, EURO 3, EURO 4,EURO 5 | |
Cargo Body Size : 5600x2300x1500mm | Color : Optional (Red, yellow, white, green, blue, etc.) |
Engine | WD615.47 371 hp Euro 2 Made By SINOTRUK |
Truck Type | 6x4 |
Driving Position | RIGHT Hand Driving |
Cab | HW76 one berth, safety belt for drive and co-drive, two seats, air-condition |
Transmission | HW19710, 10 forward and 2 reverse torque:1900N.M |
Front axle | HF9 axle Steering axle |
Driving axle | HC16*2, ratio 5.73 |
Fuel tanker volume | 300L |
Wheel base | 3800+1325mm |
Steering | ZF8118 with hydraulic assistence Power from GERMAN |
Tires | 12.00R22.5 ,10+1 pcs one spare tire |
Brake system | Air brake with WABCO value. |
Cargo body size(mm) | 5600*2300*1500,19.32M3 |
Overall dimension(mm) | 8550*2500*3450 |
Thickness | bottom 8, side 6 mm ,normal Shape cargo box. |
Lifting system | Front lifting by hydraulic pump system |
Kind of Fuel | Diesel |
Bumpers | rear and front bumpers in steel material |
Color | According to customer requirements |
